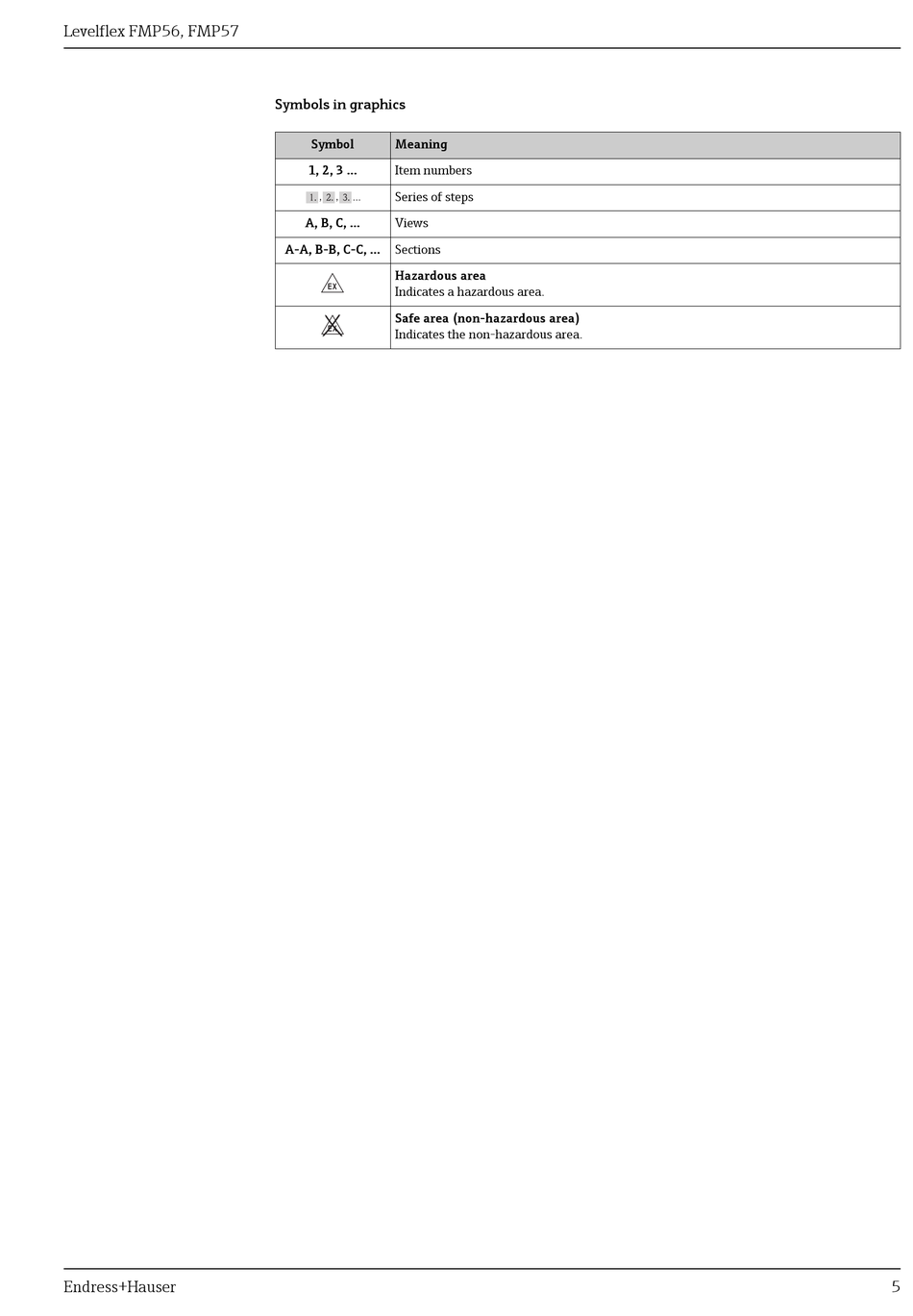

Endress+Hauser Levelflex FMP56 Technical Information page 5

Guided wave radar
Hide thumbs Also See for Levelflex FMP56:
Table of Contents

Advertisement

Levelflex FMP56, FMP57
Endress+Hauser
Symbols in graphics
Symbol
Meaning
1, 2, 3 ...
Item numbers
Series of steps
,
,
...
A, B, C, ...
Views
A-A, B-B, C-C, ...
Sections
Hazardous area
-
Indicates a hazardous area.
Safe area (non-hazardous area)
.
Indicates the non-hazardous area.
