Clack WS1TC Operation And Instruction Manual

1 inch control valve series 1.25 inch control valve series
Hide thumbs Also See for WS1TC:

Advertisement

Quick Links

Download this manual See also: Manual, Installation, Operation & Maintenance Manual
Water Specialist

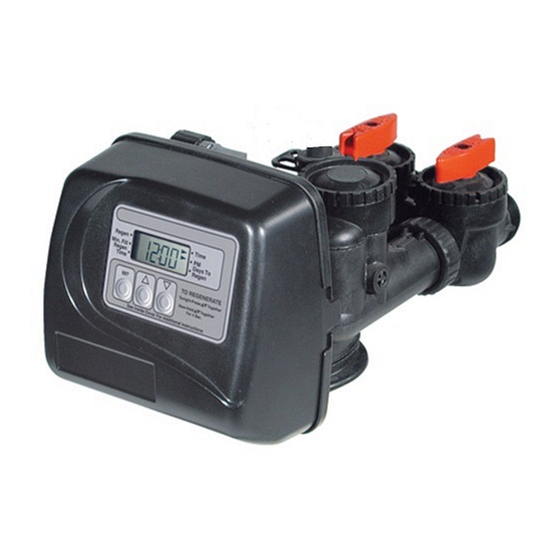

1" Control Valve Series Model: WS1TC
1.25" Control Valve Series Model: WS1.25TC
Operation and Instruction Manual for OEM Only.
Please Note: This operation and instruction manual is for the training of
the OEM and for the OEM to use to train their customers. This document
is not to be used as the complete system manual.

Advertisement

loading
Need help?

Need help?

Do you have a question about the WS1TC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clack WS1TC

Summary of Contents for Clack WS1TC

  • Page 1 Water Specialist 1” Control Valve Series Model: WS1TC 1.25” Control Valve Series Model: WS1.25TC Operation and Instruction Manual for OEM Only. Please Note: This operation and instruction manual is for the training of the OEM and for the OEM to use to train their customers. This document...

  • Page 2: Normal Operation

    MANUAL REGENERATION Arrow will point to Regen if a regeneration is expected “Tonight.” NOTE: For softeners, if brine tank does not contain salt, fi ll with salt and wait at least 2 hours before regeneration. If you need to initiate a manual regeneration, either immediately, or tonight at the preprogrammed time (typically 2 a.m.), complete the following steps.
  • Page 3 Programming 4 Drawings and Part Numbers Front Cover and Drive Assembly Drawings and Part Numbers 1 WS1TC Drive Cap, Pistons and Spacer Stack Drawings and Part Numbers 2a WS1.25TC Drive Cap, Pistons and Spacer Stack Drawings and Part Numbers 2b WS1 &...

  • Page 4: Control Valve Function And Cycles Of Operation

    Control Valve Function and Cycles of Operation • Page 1 WS1TC & WS1.25 TC Manual Control Valve Function and Cycles of Operation This glass fi lled Noryl (or equivalent) fully automatic control valve is designed as the primary control center to direct and regulate all cycles of a downfl...
  • Page 5 WS1TC & WS1.25 TC Manual Control Valve Function and Cycles of Operation • Page 2 The user can initiate manual regeneration. The user has the option to request the manual regeneration at the delayed regeneration time or to have the regeneration occur immediately. Simultaneously press the UP + DOWN buttons to start a regeneration at the next delayed regeneration time.
  • Page 6 Programming • Page 1 WS1TC & WS1.25 TC Manual OEM General Instructions The control valve offers multiple procedures that allow the valve to be modifi ed to suit the needs of the installation. These procedures are: • OEM System Setup •...
  • Page 7 WS1TC & WS1.25 TC Manual Programming • Page 2 STEP 4SS STEP 4SS — Use UP or DOWN buttons to switch between: • 1-99 Days Between Regen; or • 7-Day. Press SET HOUR button to go to Step 5SS. STEP 5SS STEP 5SS —...
  • Page 8 Programming • Page 3 WS1TC & WS1.25 TC Manual Installer Displays & Settings (1-99 Days Between Regeneration option) STEP 1ID STEP 1ID – From normal mode, press SET HOUR + UP buttons simultaneously for 3 seconds and release. STEP 2ID STEP 2ID –...
  • Page 9 WS1TC & WS1.25 TC Manual Programming • Page 4 STEP 6I7 STEP 6I7 – Tuesday Regeneration: To regenerate on Tuesday use the UP or DOWN button until the arrow points to Regen. If the arrow does not point to Regen a regeneration will not occur on Tuesday.
  • Page 10 Programming • Page 5 WS1TC & WS1.25 TC Manual Manual Regeneration An arrow will point Sometimes there is a need to regenerate the system sooner than when the system calls for it, usually referred to as to the word Regen if a regeneration is a manual regeneration.
  • Page 11 Drawings and Part Numbers • Page 1 WS1TC & WS1.25 TC Manual Front Cover and Drive Assembly Drawing No. Order No. Description Quantity V3175TC-01 WS1TC Front Cover ASY V3107-01 WS1 Motor V3106-01 WS1 Drive Bracket & Spring Clip V3108TC WS1TC PC Board...
  • Page 12 Drawings and Part Numbers • Page 2a WS1TC & WS1.25 TC Manual WS1TC Drive Cap Assembly, Downfl ow Piston, Regenerant Piston and Spacer Stack Assembly Drawing No. Order No. Description Quantity V3005 WS1 Spacer Stack Assembly V3004 Drive Cap ASY...
  • Page 13 WS1TC & WS1.25 TC Manual Drawings and Part Numbers • Page 2b WS1.25TC Drive Cap Assembly, Downfl ow Piston, Regenerant Piston and Spacer Stack Assembly Drawing No. Order No. Description Quantity V3430 WS1.5 Spacer Stack Assembly V3004 Drive Cap ASY...
  • Page 14 Drawings and Part Numbers • Page 2c WS1TC & WS1.25 TC Manual WS1 & WS1.25 Identifi cation Figure WS1TC with 1.050" Distributor Tube Opening Identifi cation Spacer Color: Grey 1.25" Black Plug 1.25" Note: The WS1 downfl ow piston is a solid amber color.
  • Page 15 WS1TC & WS1.25 TC Manual...
  • Page 16 WS1TC & WS1.25 TC Manual FOR INFORMATION COMMON TO ALL 1” & 1.25” CONTROL VALVES REFER TO THE WS1&WS1.25 COMMON INFORMATION MANUAL The common manual contains the Table of Contents shown below Other Drawings and Part Numbers Compliance Table No page number...
