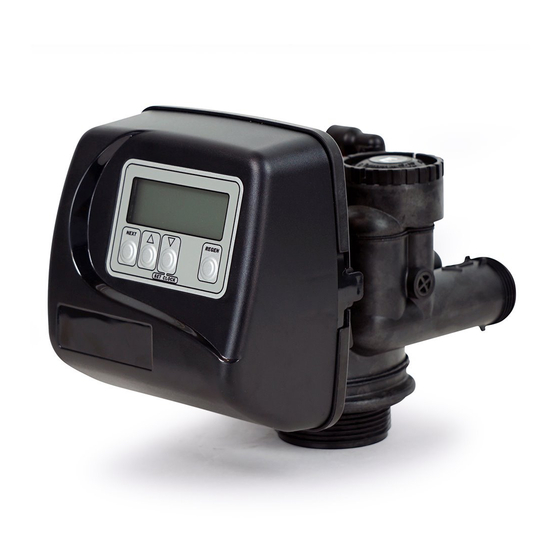

WS15P Control Valve
Parts and Service Manual
HYDROCARBONS SUCH AS VASELINE®, PETROLEUM JELLY, KEROSENE, BENZENE,
GASOLINE, ETC., WILL DAMAGE PRODUCTS THAT CONTAIN O-RINGS OR PLASTIC
COMPONENTS. EXPOSURE TO SUCH HYDROCARBONS MAY CAUSE THE PRODUCTS
TO LEAK. DO NOT USE CLACK CONTROL VALVE PRODUCT(S) ON WATER SUPPLIES
THAT CONTAIN HYDROCARBONS SUCH AS KEROSENE, BENZENE, GASOLINE, ETC.
Advertisement
Table of Contents
Related Manuals for Clack WS15P
Summary of Contents for Clack WS15P
- Page 1 GASOLINE, ETC., WILL DAMAGE PRODUCTS THAT CONTAIN O-RINGS OR PLASTIC COMPONENTS. EXPOSURE TO SUCH HYDROCARBONS MAY CAUSE THE PRODUCTS TO LEAK. DO NOT USE CLACK CONTROL VALVE PRODUCT(S) ON WATER SUPPLIES THAT CONTAIN HYDROCARBONS SUCH AS KEROSENE, BENZENE, GASOLINE, ETC.
- Page 2 Page 2 WS15P Parts and Service Manual...
-
Page 3: Table Of Contents
WS15P Parts and Service Manual Page 3 Table of Contents General Specifi cations ................................ 4 Drive Cap Assembly, Pistons, Stack Assembly, Main Body ....................5 Regenerant Components ..............................6 Injectors ....................................7 Injector Flow Graphs - U.S. Units ............................8 Injector Flow Graphs - Metric Units ........................... -
Page 4: General Specifi Cations
Page 4 WS15P Parts and Service Manual General Specifi cations Minimum/Maximum Operating Pressures 20 – 125 psi (138 kPa – 862 kPa) Minimum/Maximum Operating Temperatures 40° - 110° F (4° - 43° C) Power Adapter: U.S. International Supply Voltage 100VAC to 120VAC... -
Page 5: Drive Cap Assembly, Pistons, Stack Assembly, Main Body
O-RING 347 V4400-NPT WS15P NPT BODY ASSEMBLY V4400-BSPT WS15P BSPT BODY ASSEMBLY V4430-01 WS15P FTG ASY QC TO NPT 1 set of 2 V4430-02 WS15P FTG ASY QC TO BSPT V3641 O-RING 225 FOR VALVE BODIES WITH NPT THREADS V3441 O-RING 226 FOR VALVE BODIES WITH BSPT THREADS *V3174 Regenerant Piston not used for Backwash Only valves. -
Page 6: Regenerant Components
Page 6 WS15P Parts and Service Manual WS15P Regenerant Components Drawing No. Order No. Description Quantity H4615 RETAINING CLIP V3498 WS15 BRINE ELBOW ASY W/RFC ½ V3195-01 REFILL PORT PLUG ASY V4430-04NPT WS15P NPT DRAIN KIT V4430-04BSPT WS15P BSPT DRAIN KIT... -
Page 7: Injectors
WS15P Parts and Service Manual Page 7 WS 1.5” Injectors Downfl ow Drawing Order No. Description Nozzle Color Typical Tank Quantity Diameter V3010-15B WS1.5 Injector Asy B Violet 12” V3010-15C WS1.5 Injector Asy C 13” V3010-15D WS1.5 Injector Asy D White 14”... -
Page 8: Injector Flow Graphs - U.s. Units
Page 8 WS15P Parts and Service Manual WS 1.5” Injector Flow Graphs - U.S. Units ORDER NO. V3010-15B ORDER NO. V3010-15B ORDER NO. V3010-15C ORDER NO. V3010-15D VIOLET VIOLET WHITE Total Total Total Slow Rinse Slow Rinse Slow Rinse Draw... -
Page 9: Injector Flow Graphs - Metric Units
WS15P Parts and Service Manual Page 9 WS 1.5” Injector Flow Graphs - Metric Units ORDER NO. V3010-15B ORDER NO. V3010-15C ORDER NO. V3010-15D VIOLET WHITE Total Total Total Slow Rinse Slow Rinse Slow Rinse Draw Draw Draw Pressure (kPa) -
Page 10: Fitting Kits
GASOLINE, ETC., WILL DAMAGE PRODUCTS THAT CONTAIN O-RINGS OR PLASTIC COMPONENTS. EXPOSURE TO SUCH HYDROCARBONS MAY CAUSE THE PRODUCTS TO LEAK. DO NOT USE CLACK CONTROL VALVE PRODUCT(S) ON WATER SUPPLIES THAT CONTAIN HYDROCARBONS SUCH AS KEROSENE, BENZENE, GASOLINE, ETC. -
Page 11: Drain Line Flow Control Washers
WS15P Parts and Service Manual Page 11 Drain Line Flow Control Washers Order No. Description V3162-XXX V3162-xx V3162-007 .7 GPM Drain line fl ow control Flow Rate Identification V3162-010 1.0 GPM Drain line fl ow control 5/8" V3162-013 1.3 GPM Drain line fl ow control V3162-017 1.7 GPM Drain line fl... -
Page 12: Troubleshooting Procedures
Page 12 WS15P Parts and Service Manual Troubleshooting Procedures Problem Possible Cause Solution a. No power at electric outlet a. Repair outlet or use working outlet b. Control valve Power Adapter not plugged into b. Plug Power Adapter into outlet or connect... - Page 13 WS15P Parts and Service Manual Page 13 Problem Possible Cause Solution a. Bypass valve is open or faulty a. Fully close bypass valve or replace b. Media is exhausted due to high water usage b. Check program settings or diagnostics for abnormal water usage c.
- Page 14 Page 14 WS15P Parts and Service Manual Problem Possible Cause Solution a. Motor not inserted full to engage pinion, motor a. Disconnect power, make sure motor is wires broken or disconnected fully engaged, check for broken wires, make sure two pin connector on motor is connected to the two pin connection on the PC Board labeled MOTOR.
- Page 15 WS15P Parts and Service Manual Page 15 Problem Possible Cause Solution a. Control valve programmed for ALT A or b, a. Press NEXT and REGEN buttons for 3 nHbP, SEPS, or AUX MAV with out having a seconds to resynchronize software with...
- Page 16 Page 16 WS15P Parts and Service Manual...
- Page 17 WS15P Parts and Service Manual Page 17...
- Page 18 Page 18 WS15P Parts and Service Manual...
- Page 19 WS15P Parts and Service Manual Page 19 Revision History: 2/26/2020 PAGE 11: V4358 WS15P DRAIN ELBOW 1" NPT V4359 WS15P DRAIN ELBOW 1" BSPT 3/16/2020 PAGE 11: Removed V3190 series of DLFC from table and V3190-XXX drawing. 7/6/2020 PAGE 11: All DLFC housings ship without DLFC installed.
- Page 20 Clack’s plant in Windsor, Wis con sin when installed and operated within rec om mend ed pa ram e ters. No warranty is made with respect to defects not reported to Clack within the warranty period and/or defects or damages due to neglect, misuse, alterations, ac ci dent, mis ap pli ca tion, physical damage, or damage caused by fi...
