To the Installer:
Please attach these instructions
next to the water heater.
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause serious
injury or property damage. Refer to this
manual. For assistance or additional
information, consult a qualified installer or
service agency.
CAUTION
The recommended temperature for normal
residential use is 120°F. The dial on the
aquastat does not always reflect the out-
coming water temperature, which could
occasionally exceed 120°F. The variation in
out-coming temperature could be based on
factors including but not limited to usage
patterns and type of installation. Test your
water at the tap nearest to the water heater.
WARNING
Hotter water increases the risk of scald
injury. Before adjusting the water
temperature setting, read this instruction
manual. Temperatures at which injury occurs
vary with the person's age and the length of
exposure.
The slower reaction time of children, elderly,
and physically or mentally challenged
persons increases the scalding hazard to
them. It is recommended that lower water
temperatures be used where these exposure
hazards exist. Such households may require a
temperature setting less than 120°F to
prevent accidental contact with hot water.
To lower water temperature use point-of-use
temperature limiting devices.
WARNING
Water heater blankets are not recommended
and will void the warranty.
THIS MANUAL HAS BEEN PREPARED
TO ACQUAINT YOU WITH THINSTALLATION,
OPERATION, AND MAINTENANCE OF
YOUR WATER HEATER AND TO PROVIDE
IMPORTANT SAFETY INFORMATION.
23570
To the Consumer:

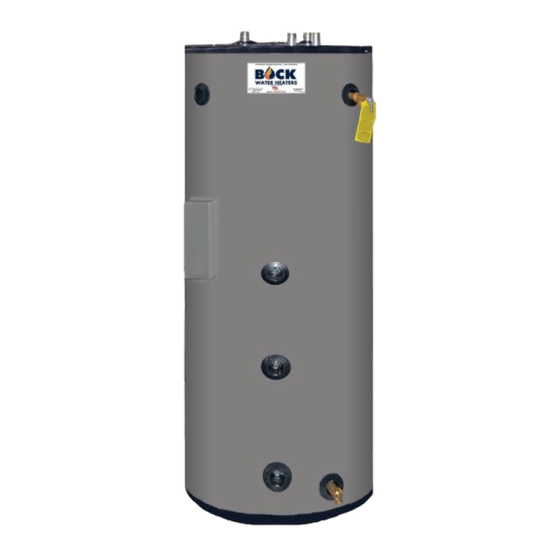

Solar Storage Tank with Electric Backup
Warranty, Registration Card and Parts List are included.
Homeowner: Please remember to return the Registration Card!
Please read these and all component
instructions and keep for future reference.
Instruction Manual
INSTALLER RESPONSIBILITIES
Please read all instructions thoroughly before
installing or placing the heater into service.
This unit must be installed by licensed or
authorized installers, or technical personnel
that service water heating equipment. The
heater must be installed in accordance with all
local codes and ordinances.
These instructions are a guide for the correct
installation of the water heater. The
manufacturer will not be liable for damages
caused by failure to comply with the installation
and operating instructions outlined on the
following pages.
CAUTION
The recommended water temperature setting for
normal residential use is 120°F/49°C.
HANDLING
Before uncrating, check for shipping damage.
Report any damage to your carrier. Note damage
on bill of lading or delivery receipt and file a
claim.
FAILURE TO FOLLOW THESE INSTRUCTIONS
OR ALL APPLICABLE BUILDING CODES AND
REGULATIONS VOIDS THE WARRANTY
ON THIS WATER HEATER.
Read all instructions thoroughly before
attempting installation or operation of your
water heater. Keep these instructions for future
reference.
Local plumbing and electrical codes must be
followed in the installation of this water
heater. In the absence of a local code use the
UNIFORM PLUMBING CODE and the NFPA
Code. Local codes may supersede instructions
in this installation manual.
These instructions are a guide for the correct
installation of the water heater. The
manufacturer will not be liable for damages
caused by failure to comply with the
installation and operating instructions
outlined on the following pages.
Rev 3 6/16
Advertisement
Table of Contents
Related Manuals for Bock Water heaters 80STE
Summary of Contents for Bock Water heaters 80STE
-
Page 1: Instruction Manual
To the Installer: To the Consumer: Please attach these instructions Please read these and all component next to the water heater. instructions and keep for future reference. Solar Storage Tank with Electric Backup Instruction Manual Warranty, Registration Card and Parts List are included. Homeowner: Please remember to return the Registration Card! INSTALLER RESPONSIBILITIES Please read all instructions thoroughly before... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING When using electrical appliances, basic safety precautions to reduce the risk of fire, electric shock, or injury to persons should be followed, including: 1. READ ALL INSTRUCTIONS BEFORE USING THIS WATER HEATER. 2. This water heater must be grounded. Connect only to properly grounded outlet. -
Page 3: Table Of Contents
TABLE OF CONTENTS Section I: Specifications ..........4 Section II: General Information . -
Page 4: Section I: Specifications
T&P RELIEF VALVE Electric Heating Assembly FROM SOLAR (3/4" NPT) Sensor Immersion Well TO SOLAR (3/4" NPT) Figure 1: 80STE, 119STE Table 1: Dimensions Model 80STE 24´ ´ 64´ ´ ⁄ ´ ´ ⁄ ´ ´ ⁄ ´ ´ ⁄... -
Page 5: Section Ii: General Information
SECTION I: SPECIFICATIONS (cont.) Table 2: Capacity & Performance Model 80STE 119STE SECTION II: GENERAL INFORMATION SOLAR STORAGE TANK WITH ELECTRIC BACKUP FUNCTION The solar storage tank is designed to store water that has been directly heated in a solar panel or indirectly heated by a solar panel through an external heat exchanger. - Page 6 SECTION II: GENERAL INFORMATION (cont.) The thermostat is factory set at 120°F. See Table 6 for thermostat letter and temperature relationships. If hotter water is required a tempering device or anti-scald device must be installed at the domestic hot water outlet of the heater or at the point of use. Table 3 details the approximate relationship of water temperature and time with regard to scald injury.
- Page 7 SECTION II: GENERAL INFORMATION (cont.) ANODE RODS The anode rod is used as a sacrificial element within the volume of the storage tank. The purpose of the magnesium anode rod is to protect the inside of the tank against corrosion. Anode rods should be inspected twice in the first year and at least yearly once a time interval for inspection has been developed.
-
Page 8: Section Iii: Pre-Installation
SECTION III: PRE-INSTALLATION LOCATION CAUTION This water heater must be located in an area where leakage of the tank, water line connections, or the temperature and pressure relief valve will not result in damage to the area adjacent to the water heater or to lower floors of the structure. When such location cannot be avoided, a suitable drain pan must be installed under the water heater. -
Page 9: Section Iv: Installation
SECTION IV: INSTALLATION WATER CONNECTIONS CAUTION This water heater incorporates fittings that contain a nonmetallic lining. DO NOT apply heat to these fittings when making sweat connections to the heater. Sweat tubing to an adapter before securing adapter to any fittings on water heaters. ALL PIPING SHOULD CONFORM TO LOCAL CODES AND ORDINANCES. - Page 10 SECTION IV: INSTALLATION (cont.) If the solar storage tank is installed in a system that utilizes a heat transfer medium other than potable water, a separate (external) heat exchanger must be installed. The external heat exchanger must be constructed such that if a failure occurs, it will not result in contamination of the potable water.
- Page 11 SECTION IV: INSTALLATION (cont.) A piping diagram for a typical solar domestic water heating system based on a storage tank with electric heating backup and an external heat exchanger is shown in Figure 3. air vent w/ shut o valve cold water hot water anti-scald valve...
-
Page 12: Electrical Connections
SECTION IV: INSTALLATION (cont.) ELECTRICAL CONNECTIONS DANGER Confirm that all electrical connections are unpowered before installing or servicing electrical components/connections within the water heater. WARNING The water heater must be electrically grounded in accordance with local codes or, in the absence of local codes, with NFPA 70. Failure to properly wire electrical connections may result in serious physical harm. -
Page 13: Section V: Operation
SECTION V: OPERATION INITIAL START-UP Reference the solar collector installation instructions for proper start-up of the solar collector. Be sure that fluid flow in the solar system is established. HEATING OPERATIONS Condition 1: The minimum temperature difference (for heat transfer) between the potable water at the bottom of the tank and the solar collector is sensed by the solar controller. -
Page 14: Section Vi: Maintenance
SECTION V: OPERATION (cont.) CAUTION Hot water in excess of 120°F can cause scalding! The temperature at which injury occurs varies with the person’s age and the time of exposure. The slower response time of disabled persons increases the hazards to them. NEVER allow small children to use a hot water tap. -
Page 15: Section Vii: Troubleshooting
SECTION VI: MAINTENANCE (cont.) FLUSH THE TANK The solar storage tank is glass lined. Elements in the water such as lime, iron and other minerals may accumulate in the tank. It is recommended that the tank be drained and flushed thoroughly once a year to prevent buildup. SOLAR CONTROLLER AND COLLECTOR PANELS The solar controller and collector panel manufacturer may have a recommended maintenance procedure. -
Page 16: Section Viii: Parts List
SECTION VIII: PARTS LIST 19 20 21 15 16 17 Table 7: 80STE, 119STE Parts Part Description Plug Pipe Nipple (plastic-lined) Plug Anode Rod Leak Detector T&P Relief Valve Leak Detector T&P Relief Valve J-Box Cover Sensor Immersion Well (solar) -
Page 17: Section Ix: Warranty
SECTION IX: WARRANTY LIMITED WARRANTY FOR SOLAR WATER HEATER Bock Water Heaters, Inc. 110 S. Dickinson Street Madison, WI 53703 Phone: 608-257-2225 WHAT DOES THIS LIMITED WARRANTY COVER? This limited warranty applies only to the original consumer purchaser. General Defects and Malfunctions: This warranty covers defections and malfunctions in your new water heater for a period of one year from the original installation date. - Page 18 Monday through Friday between the hours of 8 o’clock a.m. to 5 o’clock p.m. Central Time at the following number: 1-608-257-2225. You can also write us at the following address: Bock Water Heaters, Inc. Warranty Support Group 110 S. Dickinson Street Madison, WI 53703 We will respond not later than ten days after we have received your request for service.
- Page 19 SECTION IX: WARRANTY (cont.) WHAT WILL VOID THE LIMITED WARRANTY? If you do any of the following, you will void this limited warranty: • Fail to retain an original copy of your sales receipt. • Fail to retain the actual rating plate from the water heater. •...
- Page 20 Bock Water Heaters, Inc. • 110 South Dickinson Street • Madison, WI 53703 Telephone: 608-257-2225 • Fax: 608-257-5304 www.bockwaterheaters.com...
