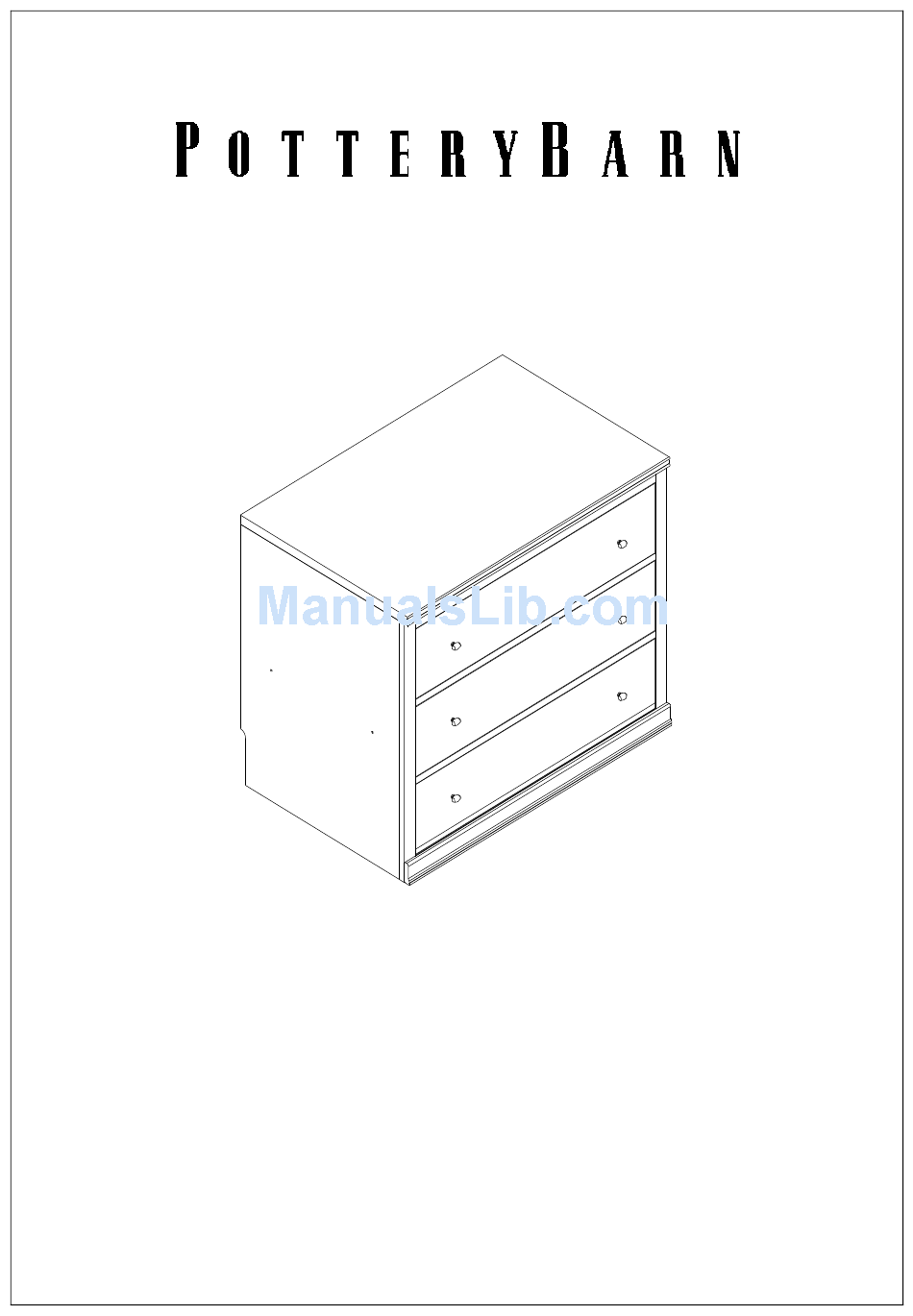

LOGAN BASE WITH DRAWERS 24"
Date: 3‐Apr‐15

Rev:
www. potterybarn.com

















Page 1 of 6


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LOGAN BASE WITH DRAWERS 24 inch and is the answer not in the manual?

Questions and answers

Related Manuals for Pottery Barn LOGAN BASE WITH DRAWERS 24 inch

Summary of Contents for Pottery Barn LOGAN BASE WITH DRAWERS 24 inch

  • Page 1                             LOGAN BASE WITH DRAWERS 24”        Date: 3‐Apr‐15 www. potterybarn.com                                                   Page 1 of 6  ...
  • Page 2   Important Safety Instructions:  Please read all instructions carefully before assembling.  For your safety, assembly by two or more adults is strongly recommended.  Keep instructions for future use.  Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural integrity of the item.
  • Page 3   Assembly Instruction Steps: 1. Using caution remove all components from their boxes making sure to set aside all hardware and parts. 2. To connect base with the TV Stand, Desk, Corner Cabinet/TV Stand or a separate base: Set the base on the side of these units. Pull out the top two drawers and set them aside. Using the pilot holes as a guide, bore holes on the side panels using a drill with the 5mm drill bit (c).
  • Page 4   4. Align the bored holes on the side panel of the base with the bored holes on the Logan TV Stand, Desk, Corner Cabinet/ TV Stand, or a separate base. Insert the sleeve (b) into the hole and secure with the connecting screw (a) on the other end by tightening and threading the sleeve using Phillips head screwdrivers.
  • Page 5   6. Re-install the two drawers back into the cabinet. 7. Once the assembled unit is moved into its final location, install included anti-tip kit. 8. If the furniture still wobbles, pull out the bottom drawer and adjust the levelers through the holes at the four corners with the Allen key 4mm (d).
  • Page 6   Imported by / Importé par /   Importado por  WILLAMS-SONOMA INC. 3250 Van Ness, SF CA 94109, US CANADIAN DISTRIBUTION ADDRESS/ ADRESSE DE DISTRIBUTION CANADIENNE / DIRECCIÓN DE DISTRIBUCIÓN EN CANADÁ: 3401 Dufferin St. Space 215, Toronto, Ontario, M6A 2T9, CA FURNITURE TIPPING RESTRAINT  WARNING:  This  product  is  only  a  deterrent.  It  is  not  a  substitute  for  proper  adult  supervision.    Manufacturer  assumes no liability for improper installation or excessive loads placed on screws, brackets or straps. ...
