Hardware Description and Installation

 Note:
The figures in this document are for reference only.

3.1 Hardware Description

3.1.1 Front Panel

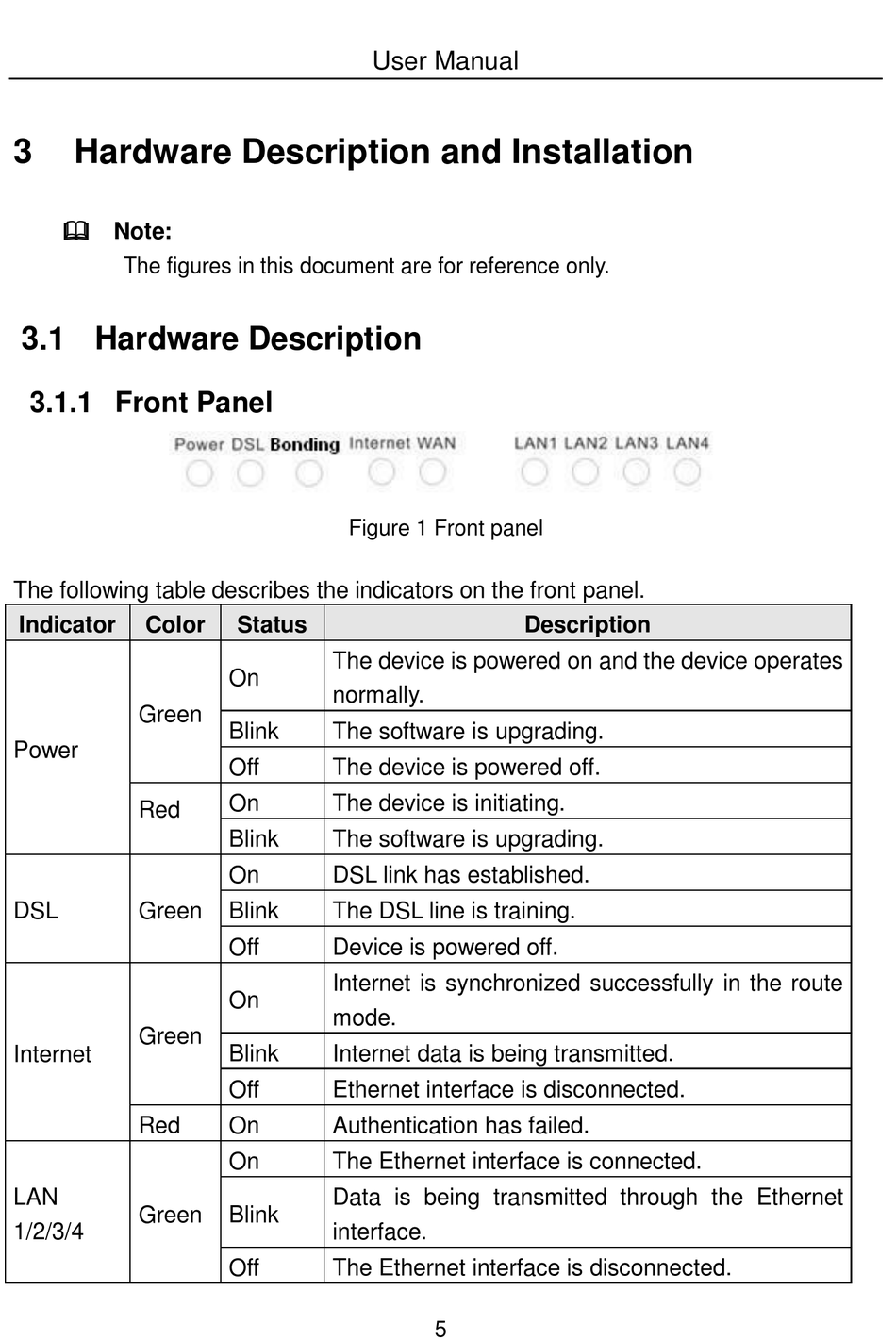

The following table describes the indicators on the front panel.
Indicator Color
Green
Power
Red
DSL Green
Green
Internet
Red
LAN
Green
1/2/3/4
User Manual
Figure 1 Front panel
Status
The device is powered on and the device operates
On
normally.
Blink The software is upgrading.
Off The device is powered off.
On The device is initiating.
Blink The software is upgrading.
On DSL link has established.
Blink The DSL line is training.
Off Device is powered off.
Internet is synchronized successfully in the route
On
mode.
Blink Internet data is being transmitted.
Off Ethernet interface is disconnected.
On Authentication has failed.
On The Ethernet interface is connected.
Data is being transmitted through the Ethernet
Blink
interface.
Off The Ethernet interface is disconnected.
