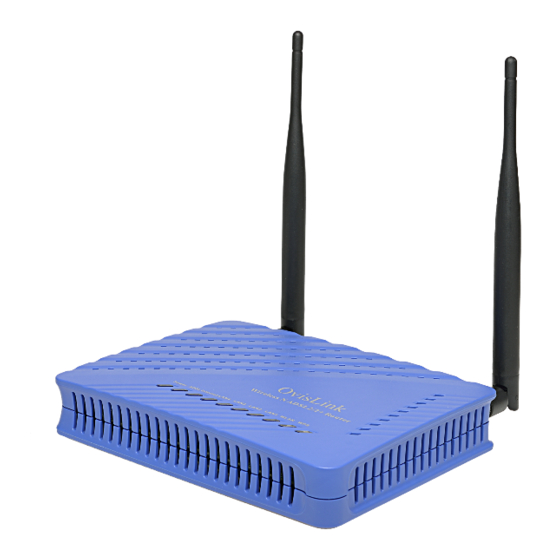

Ovislink OV504WN Quick Installation Manual
  1. Manuals
  2. Brands
  3. Ovislink Manuals
  4. Network Router
  5. OV504WN
  6. Quick installation manual

Ovislink OV504WN Quick Installation Manual

Hide thumbs Also See for OV504WN:
1
2
3
4
5
6
7

Advertisement

Table of Contents

See also: User Manual

1 Hardware Installation

1.1 Choosing the Best Location for Wireless Operation

Many environmental factors may affect the effective wireless function of the DSL
Router. If this is the first time that you set up a wireless network device, read the
following information:
The access point can be placed on a shelf or desktop, ideally you should be able to
see the LED indicators in the front, as you may need to view them for troubleshooting.
Designed to go up to 100 meters indoors and up to 300 meters outdoors, wireless
LAN lets you access your network from anywhere you want. However, the numbers of
walls, ceilings, or other objects that the wireless signals must pass through limit signal
range. Typical ranges vary depending on types of materials and background RF
noise in your home or business.

1.2 Connecting the Device

Please follow the steps below to connect the device.
Step1
Connect the ADSL port of the DSL router with a telephone cable.
Step2
Connect the LAN port of the DSL router to the network card of the PC via
an Ethernet cable.
Step3
Plug one end of the power adapter to the wall outlet and connect the
other end to the Power port of the DSL Router.
The followig figure displays the connection of the DSL router, PC, and telephones.
Ovislink OV504WN_Quick Installation Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OV504WN and is the answer not in the manual?

Questions and answers

Related Manuals for Ovislink OV504WN

Summary of Contents for Ovislink OV504WN

  • Page 1: Hardware Installation

    Ovislink OV504WN_Quick Installation Guide 1 Hardware Installation 1.1 Choosing the Best Location for Wireless Operation Many environmental factors may affect the effective wireless function of the DSL Router. If this is the first time that you set up a wireless network device, read the...
  • Page 2 Ovislink OV504WN_Quick Installation Guide Figure 1 Connecting the DSL router The following table describes the interfaces or the buttons on the rear panel. Interface Description This button is used for enabling WPS PBC mode. If WPS is enabled, press this button, and then the wireless router starts to accept the negotiation of PBC mode.

  • Page 3: Pc Network Configuration And Login

    Ovislink OV504WN_Quick Installation Guide 2 PC Network Configuration and Login 2.1 PC Network Configuration Each network interface on the PC should either be configured with a statically defined IP address and DNS address, or be instructed to automatically obtain an IP address using the network DHCP server.
  • Page 4 Ovislink OV504WN_Quick Installation Guide Figure 2 IP and DNS configuration TCP/IP configuration steps for Windows XP are as follows: Step1 Choose Start > Control Panel > Network Connections. Step2 Right-click the Ethernet connection icon and choose Properties. Step3 On the General tab, select the Internet Protocol (TCP/IP) component...

  • Page 5: Logging In To The Dsl Router

    Ovislink OV504WN_Quick Installation Guide Step4 The Internet Protocol (TCP/IP) Properties window appears. Step5 Select the Obtain an IP address automatically radio button. Step6 Select the Obtain DNS server address automatically radio button. Step7 Click OK to save the settings. 2.2 Logging In to the DSL Router...
  • Page 6 Ovislink OV504WN_Quick Installation Guide Figure 3 Login page After logging in to the DSL router as a super user, you can query, configure, and modify all the settings, and diagnose the system.

  • Page 7: Quick Setup

    Ovislink OV504WN_Quick Installation Guide 3 Web-Based Management This chapter describes how to use Web-based management of the DSL router, which allows you to configure and control all of DSL router features and system parameters in a user-friendly GUI. 3.1 Quick Setup Choose Quick Setup and the following page is displayed.
