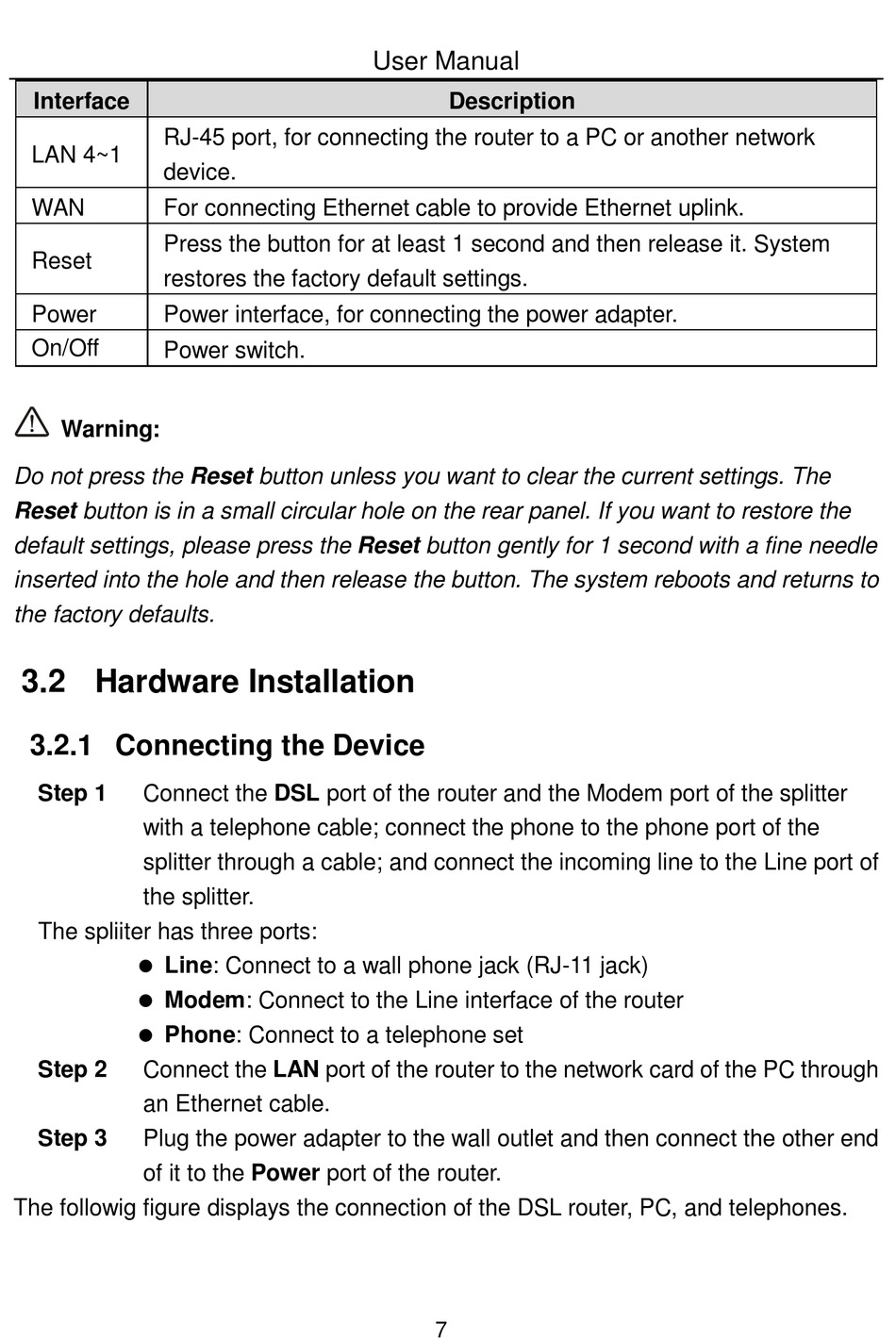

Interface
RJ-45 port, for connecting the router to a PC or another network
LAN 4~1
device.
WAN For connecting Ethernet cable to provide Ethernet uplink.
Press the button for at least 1 second and then release it. System
Reset
restores the factory default settings.
Power Power interface, for connecting the power adapter.
On/Off
Power switch.
Warning:
Do not press the Reset button unless you want to clear the current settings. The
Reset button is in a small circular hole on the rear panel. If you want to restore the
default settings, please press the Reset button gently for 1 second with a fine needle
inserted into the hole and then release the button. The system reboots and returns to
the factory defaults.

3.2 Hardware Installation

3.2.1 Connecting the Device

Step 1 Connect the DSL port of the router and the Modem port of the splitter
with a telephone cable; connect the phone to the phone port of the
splitter through a cable; and connect the incoming line to the Line port of
the splitter.
The spliiter has three ports:
 Line: Connect to a wall phone jack (RJ-11 jack)
 Modem: Connect to the Line interface of the router
 Phone: Connect to a telephone set
Step 2 Connect the LAN port of the router to the network card of the PC through
an Ethernet cable.
Step 3 Plug the power adapter to the wall outlet and then connect the other end
of it to the Power port of the router.
The followig figure displays the connection of the DSL router, PC, and telephones.
User Manual
Description
7
