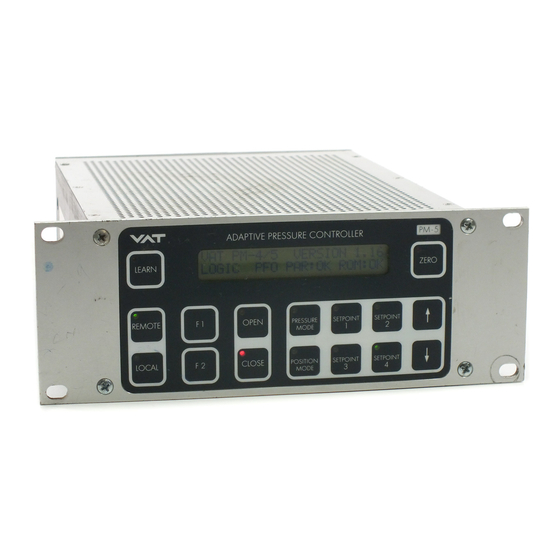

Adaptive Pressure Controller
PM-4 & 5 for Gate Valve Control System
This manual is valid for product with the
product identification number
FABR. NO. 641PM - . 6 . . - . . . .
configured with Software Version
64PM.3I.00
The product identification is specified on the rear panel of each PM controller:
Made in Switzerland in 20 . .
Patented
641P . - . 6 . . - . . . . - . . . .
Read these «Installation, Operating and Maintenance Instructions» (IOMI) and the enclosed
«General Safety Instructions» carefully before you start any other action.
Table of content
1 Intended Use of Product .......................................................................................................................... 2
1.1
Technical Data................................................................................................................................. 2
2 Installation ............................................................................................................................................... 2
2.1
Content of VAT PM Controller Delivery ............................................................................................ 2
2.2
Hardware Installation ....................................................................................................................... 2
2.3
PM Configuration (setup sequence) ................................................................................................. 4
3 Operation ................................................................................................................................................ 5
3.1
Local Mode (PM-4 with Service Box only) ........................................................................................ 5
3.2
Remote Mode (PM-5 if Interface installed only) ................................................................................ 5
3.3
Power Failure / Power Failure Option (PFO)..................................................................................... 5
4 Preventive Maintenance .......................................................................................................................... 6
5 Spare Parts / Retrofit Options .................................................................................................................. 7
6 Trouble Shooting ..................................................................................................................................... 7
7 Repairs.................................................................................................................................................... 8
8 Warranty ................................................................................................................................................. 8
9 Engineering Information........................................................................................................................... 9
9.1
Wiring of Connectors ....................................................................................................................... 9
9.2
RS232C Interface Configuration..................................................................................................... 12
9.3
RS232C Communication................................................................................................................ 12
9.4
User Information and Recommendations........................................................................................ 16
VAT Vakuumventile AG, CH-9469 Haag, Schweiz
Tel ++41 81 771 61 61 Fax ++41 81 771 48 30 Email reception@vat.ch http://www.vatvalve.com
Installation, Operating, and Maintenance Instructions
ISO 9001
EN 29001
Series 64.1
PM-5
PM-4
225590EE
1/16
2005-04-26
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VAT PM-4
Summary of Contents for VAT PM-4
-
Page 1: Table Of Contents
Wiring of Connectors ........................9 RS232C Interface Configuration..................... 12 RS232C Communication........................ 12 User Information and Recommendations..................16 225590EE VAT Vakuumventile AG, CH-9469 Haag, Schweiz 1/16 Tel ++41 81 771 61 61 Fax ++41 81 771 48 30 Email reception@vat.ch http://www.vatvalve.com 2005-04-26... -

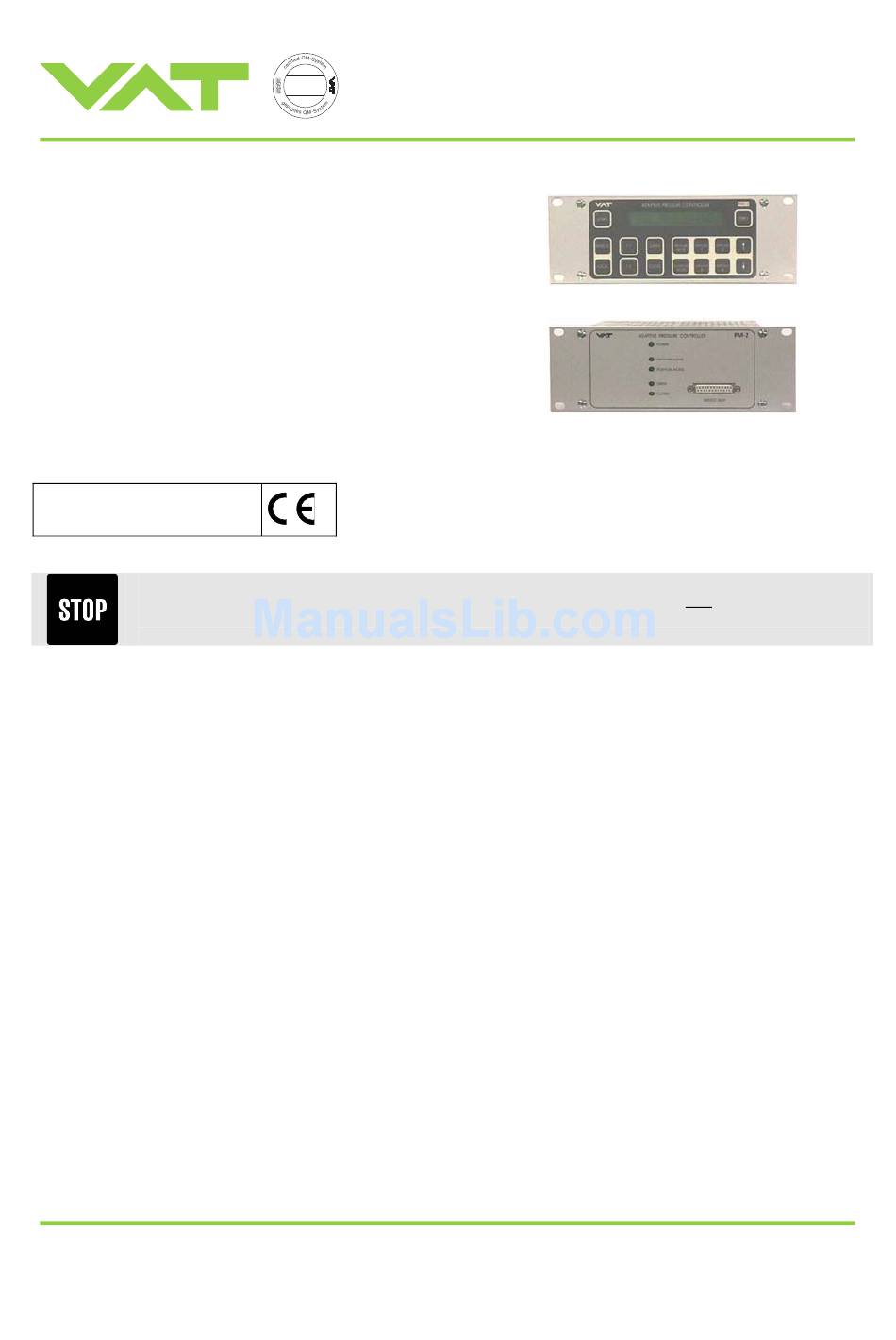

Page 2: Intended Use Of Product
ISO 9001 EN 29001 Series 64.1 Intended Use of Product This product is an adaptive pressure controller for VAT series 64 control valves. The product may only be operated within the ranges specified below: 1.1 Technical Data Mains voltage 100 - 240 VAC (±10%), 50/60 Hz 0 - 50 °C... - Page 3 Install hardware PM controller must be switched off during installation. Install VAT control valve (3) according to the Installation, Operating and Maintenance Instruction Manual of the VAT Series 64 control valve. Install sensor(s) (6) according to the recommendations of the sensor manufacturer Install PM controller (1) into control rack.
-
Page 4: Pm Configuration (Setup Sequence)
0.6 l/s 1 l/s 1.6 l/s 2 l/s 2.5 l/s 3.2 l/s 4 l/s 225590EE VAT Vakuumventile AG, CH-9469 Haag, Schweiz 4/16 Tel ++41 81 771 61 61 Fax ++41 81 771 48 30 Email reception@vat.ch http://www.vatvalve.com 2005-04-26... -
Page 5: Operation
All parameters will remain stored during a power failure. If a power-fail battery is installed (check VAT part number of PM controller: 641PM- . 6B . - ..), the PM controller has to be hooked up to power for at least 10 hours to assure repeated valve closures in case of a power failure. -
Page 6: Preventive Maintenance
- Install new battery pack and plug in connector J5 of battery pack - Reattach covers - Attach label with new production date on rear panel 225590EE VAT Vakuumventile AG, CH-9469 Haag, Schweiz 6/16 Tel ++41 81 771 61 61 Fax ++41 81 771 48 30 Email reception@vat.ch http://www.vatvalve.com 2005-04-26... -
Page 7: Spare Parts / Retrofit Options
- Check valve installation (torque on valve flange mounting screws too high, see Installation and Operating Instruction for valve!). Check and clean valve 225590EE VAT Vakuumventile AG, CH-9469 Haag, Schweiz 7/16 Tel ++41 81 771 61 61 Fax ++41 81 771 48 30 Email reception@vat.ch http://www.vatvalve.com 2005-04-26... -
Page 8: Repairs
Repairs Contact VAT for repair. Please check first the fabrication No. 641P . - ..- ..- ..) marked on the rear panel of the PM controller. Your VAT representative will discuss with you how the repair can be carried out best. -
Page 9: Engineering Information
9.1.2 Connector for mains Description Phase (100 - 240 VAC +/-10%, 50/60Hz, 150 VA max.) Neutral Ground 225590EE VAT Vakuumventile AG, CH-9469 Haag, Schweiz 9/16 Tel ++41 81 771 61 61 Fax ++41 81 771 48 30 Email reception@vat.ch http://www.vatvalve.com 2005-04-26... - Page 10 Auxiliary voltage +15V, R = 3.9kOhm Mind: Do not connect other Pins than indicated in the table above! 225590EE VAT Vakuumventile AG, CH-9469 Haag, Schweiz 10/16 Tel ++41 81 771 61 61 Fax ++41 81 771 48 30 Email reception@vat.ch http://www.vatvalve.com 2005-04-26...
- Page 11 A flashing LED on the «OPEN» or «CLOSE» key indicates that the logic input OPEN valve, resp. CLOSE valve is activated. 225590EE VAT Vakuumventile AG, CH-9469 Haag, Schweiz 11/16 Tel ++41 81 771 61 61 Fax ++41 81 771 48 30 Email reception@vat.ch http://www.vatvalve.com 2005-04-26...
-
Page 12: Rs232C Interface Configuration
These signals have priority (CLOSE is higher than OPEN) and they are executed immediately (see chapter ‚9.1.3.2 RS232C interface‘ for details) 225590EE VAT Vakuumventile AG, CH-9469 Haag, Schweiz 12/16 Tel ++41 81 771 61 61 Fax ++41 81 771 48 30 Email reception@vat.ch http://www.vatvalve.com 2005-04-26... - Page 13 = Disable LOGIC INPUT Disable LOGIC INPUT U:17<CR><LF> U:<CR><LF> = Enable LOGIC INPUT Enable LOGIC INPUT 225590EE VAT Vakuumventile AG, CH-9469 Haag, Schweiz 13/16 Tel ++41 81 771 61 61 Fax ++41 81 771 48 30 Email reception@vat.ch http://www.vatvalve.com 2005-04-26...
- Page 14 Download of learned have to be used data <CR><LF> ddd.. = data in hexadecimal format (0...9, A...F) 225590EE VAT Vakuumventile AG, CH-9469 Haag, Schweiz 14/16 Tel ++41 81 771 61 61 Fax ++41 81 771 48 30 Email reception@vat.ch http://www.vatvalve.com 2005-04-26...
- Page 15 - PM controller is switched in control mode PRESSURE MODE - function ZERO blocked (= DISABLED) 225590EE VAT Vakuumventile AG, CH-9469 Haag, Schweiz 15/16 Tel ++41 81 771 61 61 Fax ++41 81 771 48 30 Email reception@vat.ch http://www.vatvalve.com 2005-04-26...
-
Page 16: User Information And Recommendations
Recommended for sensor setup: Voltage Range: 0-2V, Display Range: 0-200, Display Unit: mTorr → Resolution of PM controller: 200mTorr * 0.03% = 0.06mT 225590EE VAT Vakuumventile AG, CH-9469 Haag, Schweiz 16/16 Tel ++41 81 771 61 61 Fax ++41 81 771 48 30 Email reception@vat.ch http://www.vatvalve.com 2005-04-26...
