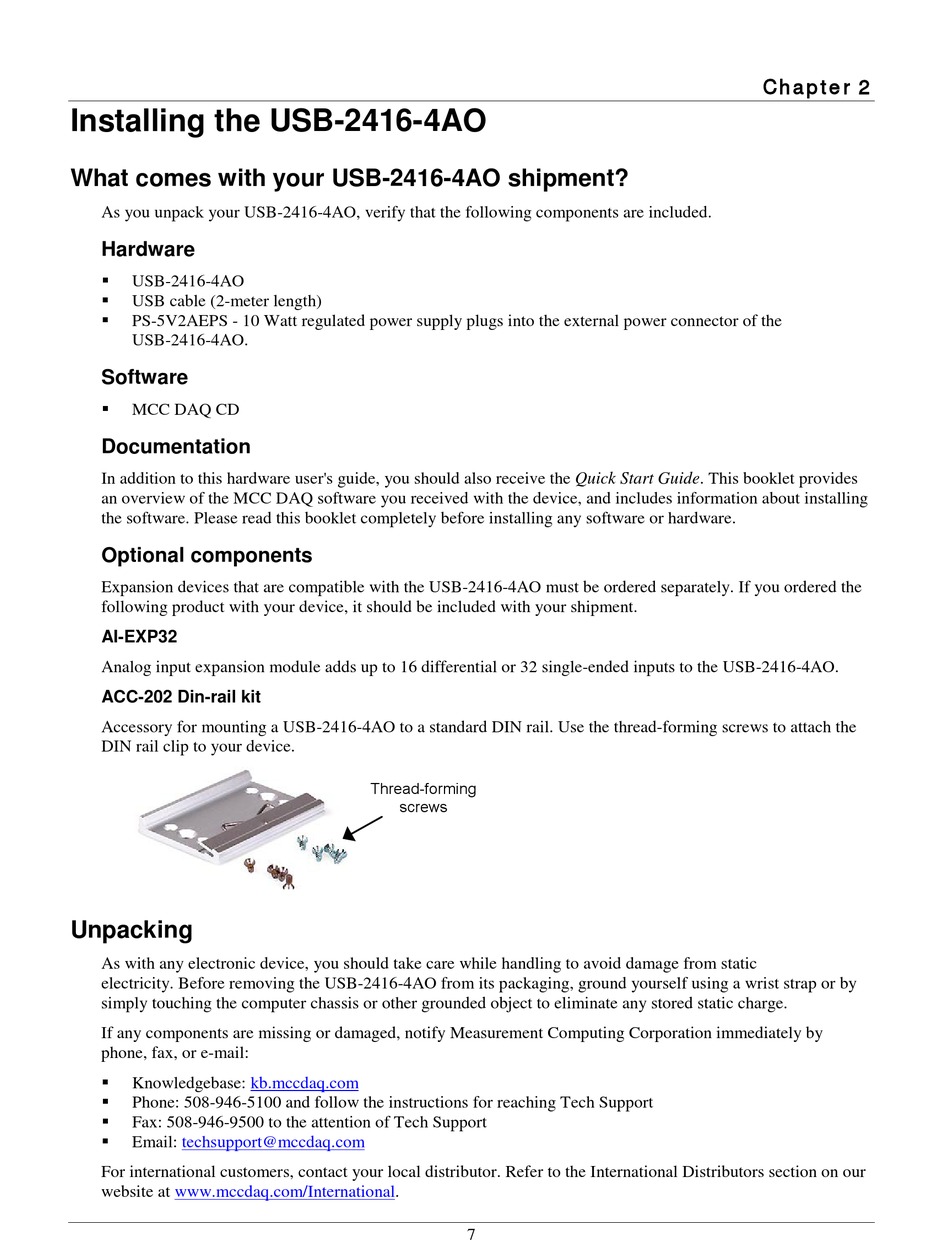

Installing the USB-2416-4AO

What comes with your USB-2416-4AO shipment?

As you unpack your USB-2416-4AO, verify that the following components are included.

Hardware


USB-2416-4AO

USB cable (2-meter length)

PS-5V2AEPS - 10 Watt regulated power supply plugs into the external power connector of the
USB-2416-4AO.

Software


MCC DAQ CD

Documentation

In addition to this hardware user's guide, you should also receive the Quick Start Guide. This booklet provides
an overview of the MCC DAQ software you received with the device, and includes information about installing
the software. Please read this booklet completely before installing any software or hardware.

Optional components

Expansion devices that are compatible with the USB-2416-4AO must be ordered separately. If you ordered the
following product with your device, it should be included with your shipment.
AI-EXP32
Analog input expansion module adds up to 16 differential or 32 single-ended inputs to the USB-2416-4AO.
ACC-202 Din-rail kit
Accessory for mounting a USB-2416-4AO to a standard DIN rail. Use the thread-forming screws to attach the
DIN rail clip to your device.

Unpacking

As with any electronic device, you should take care while handling to avoid damage from static
electricity. Before removing the USB-2416-4AO from its packaging, ground yourself using a wrist strap or by
simply touching the computer chassis or other grounded object to eliminate any stored static charge.
If any components are missing or damaged, notify Measurement Computing Corporation immediately by
phone, fax, or e-mail:

Knowledgebase:

Phone: 508-946-5100 and follow the instructions for reaching Tech Support

Fax: 508-946-9500 to the attention of Tech Support

Email: techsupport@mccdaq.com
For international customers, contact your local distributor. Refer to the International Distributors section on our
website at www.mccdaq.com/International.
Thread-forming
screws
kb.mccdaq.com
