Functional Details
This chapter contains detailed information on all of the features available from the board, including:
explanations of the physical device components
a functional block diagram and mechanical drawings
information on how to use the signals generated by the device
diagrams of signals using default or conventional device settings
USB-2416-4AO components
These USB-2416-4AO components are shown in Figure 7 and Figure 8.
One USB connector
One external power connector
Two LED indicators
One 37-pin DSUB expansion connector
Six removable screw terminal blocks
and
)
Power
Activity

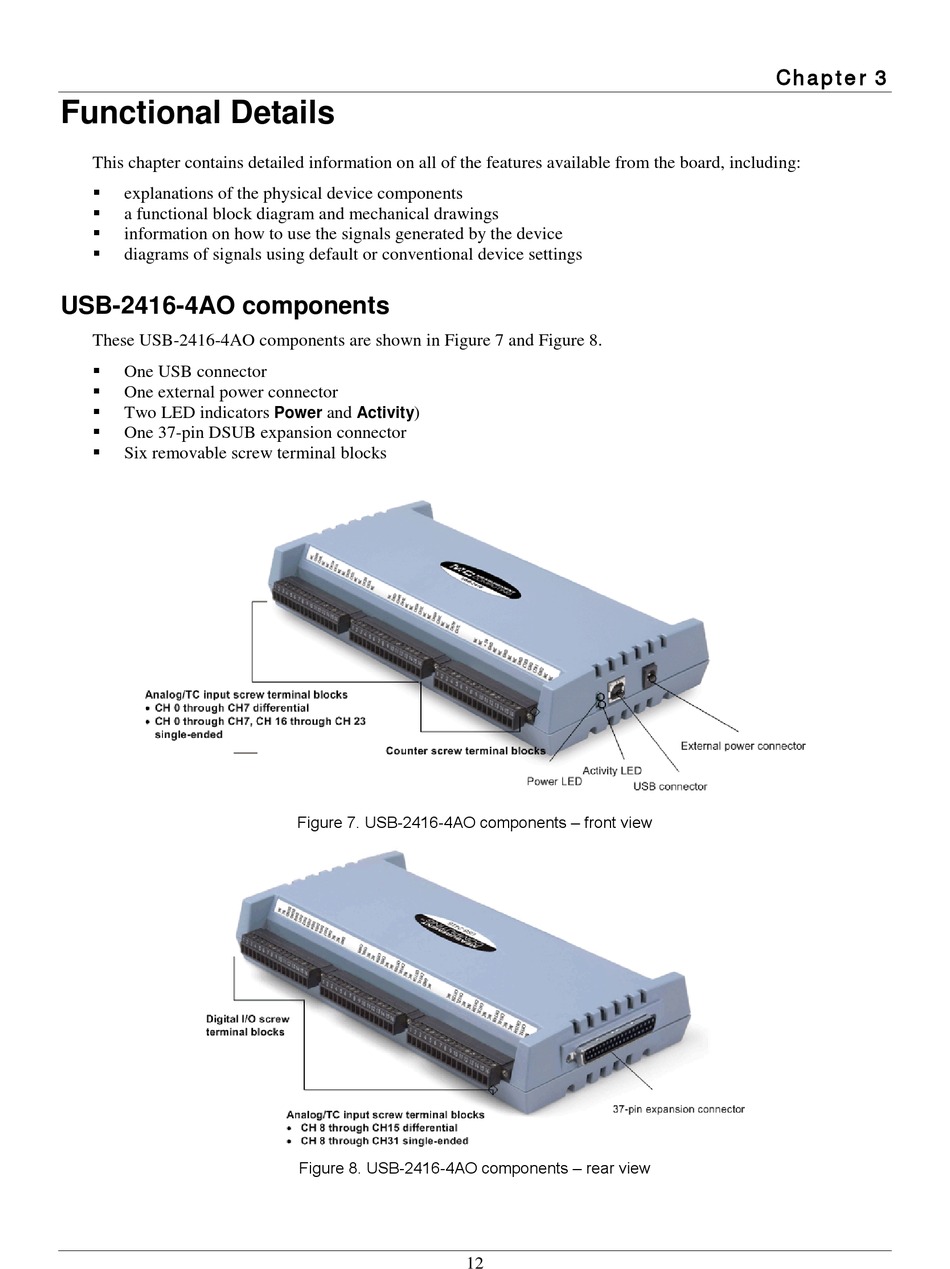

Figure 7. USB-2416-4AO components – front view
Figure 8. USB-2416-4AO components – rear view
12
Chapter 3
