USB-2416-4AO User's Guide

Internal pull-up/pull-down capability

Each of the eight DIO bits on the USB-2416-4AO has a 47 kΩ pull-up/pull-down resistor. To configure these
bits for the 0 V pull-down option, you must open the USB-2416-4AO case to access the three-pin jumper
labeled JP1.
To open the case and set the JP1 jumper, do the following.
1. Turn over the USB-2416-4AO and rest it on its top on a flat, stable surface.
2. Remove the five screws shown in Figure 14 from the bottom of the module.
3. Holding both the top and bottom sections of the module, turn it over, rest it on the surface, and carefully
remove the top portion of the case.

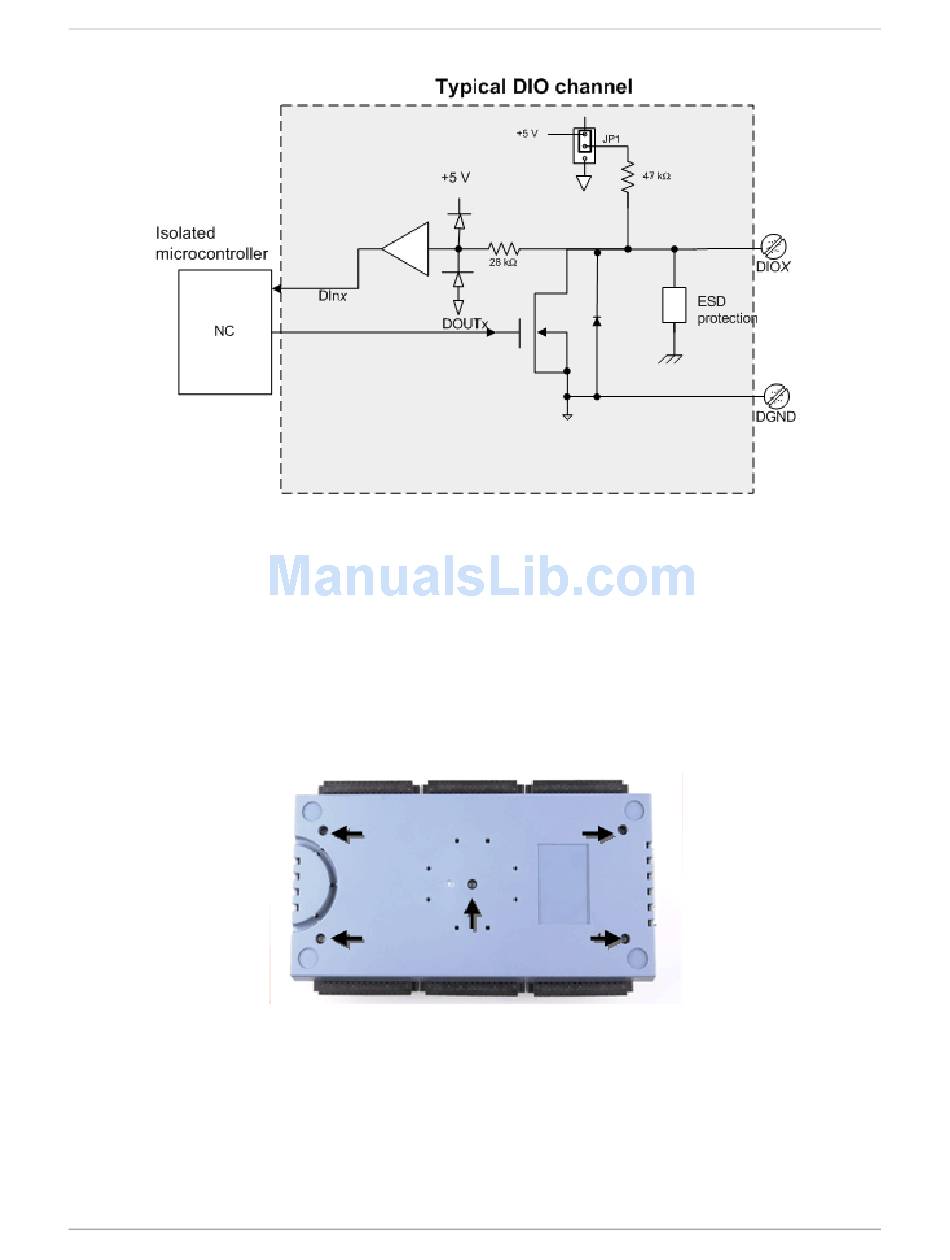

Figure 14. Location of screws connecting bottom and top sections of case
Figure 13. Digital output connection example
18
Functional Details
