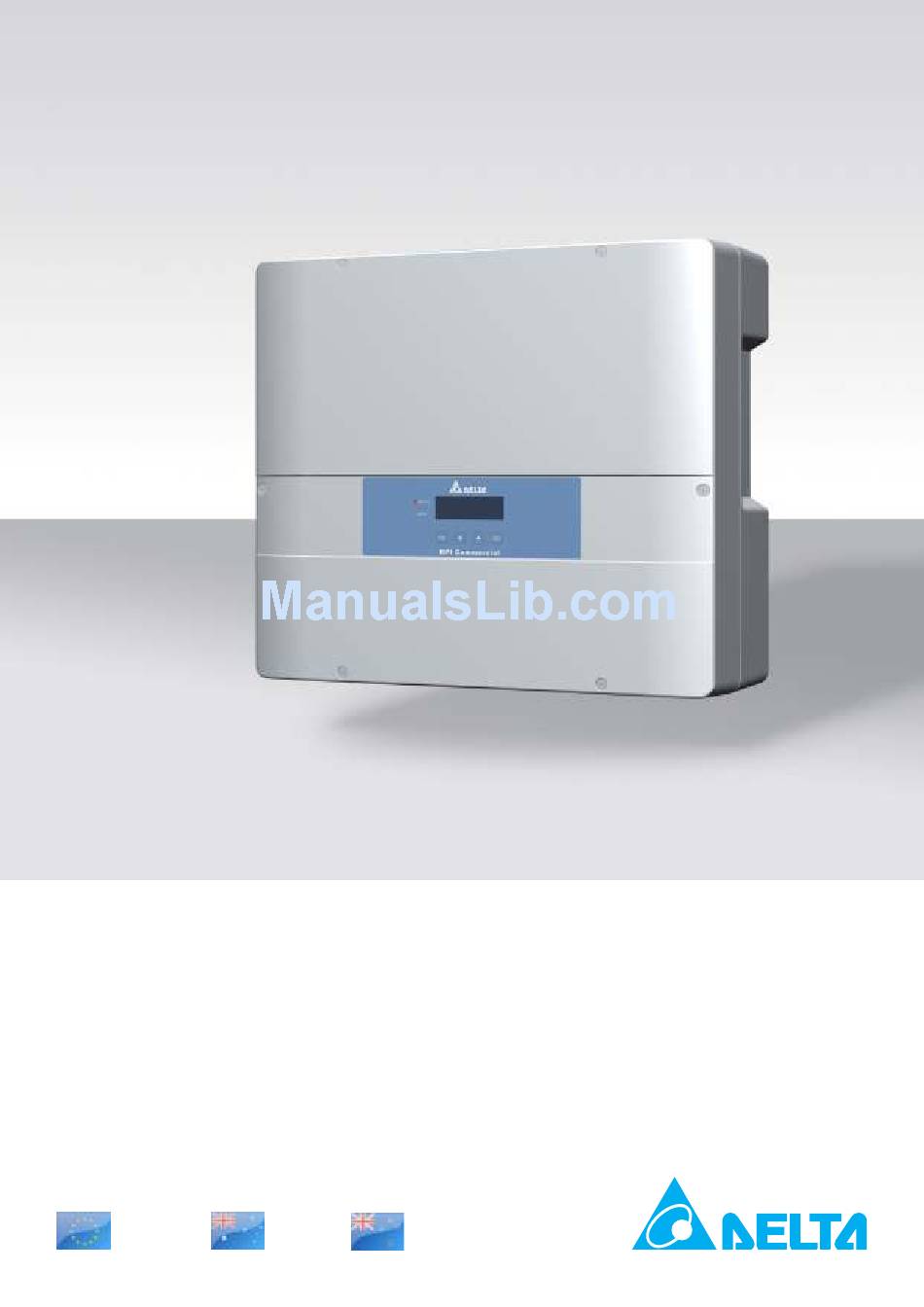

- Page 1 Quick Installation Guide RPI M6A RPI M8A RPI M10A Europe Australia New Zealand...
-
Page 2: General Safety Instructions
All connections must be suficiently insulated in order to com- ply with the IP65 protection rating. Unused connections must be closed by placing cover caps on the solar inverter. Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14... -
Page 3: Components Of The Inverter
Move downwards in menu. Set value (decrease). Move up Move upwards in menu. Set a value (increase). Select menu item. Open conigurable value for editing. Enter Finish editing (adopt set value). Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14... -
Page 4: Information On The Type Label
Quick Installation Guide and General Safety Instructions 2 mounting screws to fasten the 2 x MC4 plugs for DC– inverter to the mounting plate (M10A: 3 x) AC Plug Amphenol C16-3 Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14... -
Page 5: Planning The Installation
► Consider the operating temperature range (see >20 cm >20 cm >20 cm “Technical data”, p. 18). When the operating temperature range is exceeded, the solar inverter reduces the amount of power gener- ated. Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14... -
Page 6: Mounting The Inverter
Perform a continuity check for the grounding connection. If the test fails, scratch the paint off the inverter housing below the tooth lock washer to get a better electrical connection. Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14... -
Page 7: Connecting To The Grid (Ac)
TT is not recommended. The voltage of N has to L2-L3 400 V ± 20% L3-N 230 V ± 20% be very close to PE (difference < 20 V Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14... - Page 8 PV array and environmental conditions (e.g. humidity). Warning Two sources of voltage present Isolate both sources before - distribution network carrying out any work - photovoltaic panels Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14...
-
Page 9: Connecting To The Solar Modules (Dc)
► To ensure protection degree IP65, cap all nectors from the DC terminals on the unused connectors with the caps delivered with inverter. Otherwise you might destroy the the inverter. DC connectors. Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14... -
Page 10: Connecting To A Datalogger Via Rs485
Inverter ID for each inverter (see “Setting the inverter ID”, p. 14). Termination resistor = ON Termination resistor = OFF Termination resistor = OFF RS485 Datalogger Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14... -
Page 11: Connecting Digital Inputs, Epo And Dry Contacts (Optional)
A fault message occured. DC current 0.5 A Warning A warning message occured. Default setting is “On Grid”. When the inverter feeds into the grid, the dry contacts are closed. Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14... -
Page 12: Commissioning - Basic Settings
E - T o d a y : 0 k W h ► Check the next chapter of this quick installation guide whether you need to adjust addtional settings. Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14... -
Page 13: Commissioning - Further Settings
9 6 0 0 Use the buttons to select a value. 1 9 2 0 0 To conirm your setting, press the button 3 8 4 0 0 Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14... - Page 14 M a x . P o w e r : 1 0 0 % R e t u r n t o F a c t o r y Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14...
- Page 15 This setting is protected by a special password. To get the password, please call the Delta Support hotline in your country. You can ind the telephone number on the last page of this quick installation guide.
- Page 16 A constant power factor should be set only when requested by country regulations, authorities or your grid operator. This setting is protected by a special password. To get the password, please call the Delta Support hotline in your country. You can ind the telephone number on the last page of this quick installation guide.
- Page 17 To conirm your selection, press the Use the buttons R C M U : button E P O : N o r m a l C l o s e Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14...
-
Page 18: Technical Data
50 ± 5 Hz / 60 ± 5 Hz Power factor adjustable 0.8 cap ... 0.8 ind Total harmonic distortion <3% DC current injection <0.5% rated current Night-time loss <2 W Overvoltage category Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14... - Page 19 The maximum AC apparent power indicates the power an inverter is able to deliver. This maximum apparent power may not necessarily be reached. AC voltage and frequency range will be programmed according to the individual country requirements. Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14...
-
Page 20: Service Europe
+61 3 9543 3720 5013221702 02 © Copyright – Delta Energy Systems (Germany) GmbH – All rights reserved. All information and speciications can be modiied without prior notice. Quick installation guide for RPI M6A M8A M10A inverters 5013221702 02 2015-10-14...
