Installation; Boiler Assembly - Exploded View - IDEAL LOGIC CODE COMBI ESP1 26 Installation And Servicing

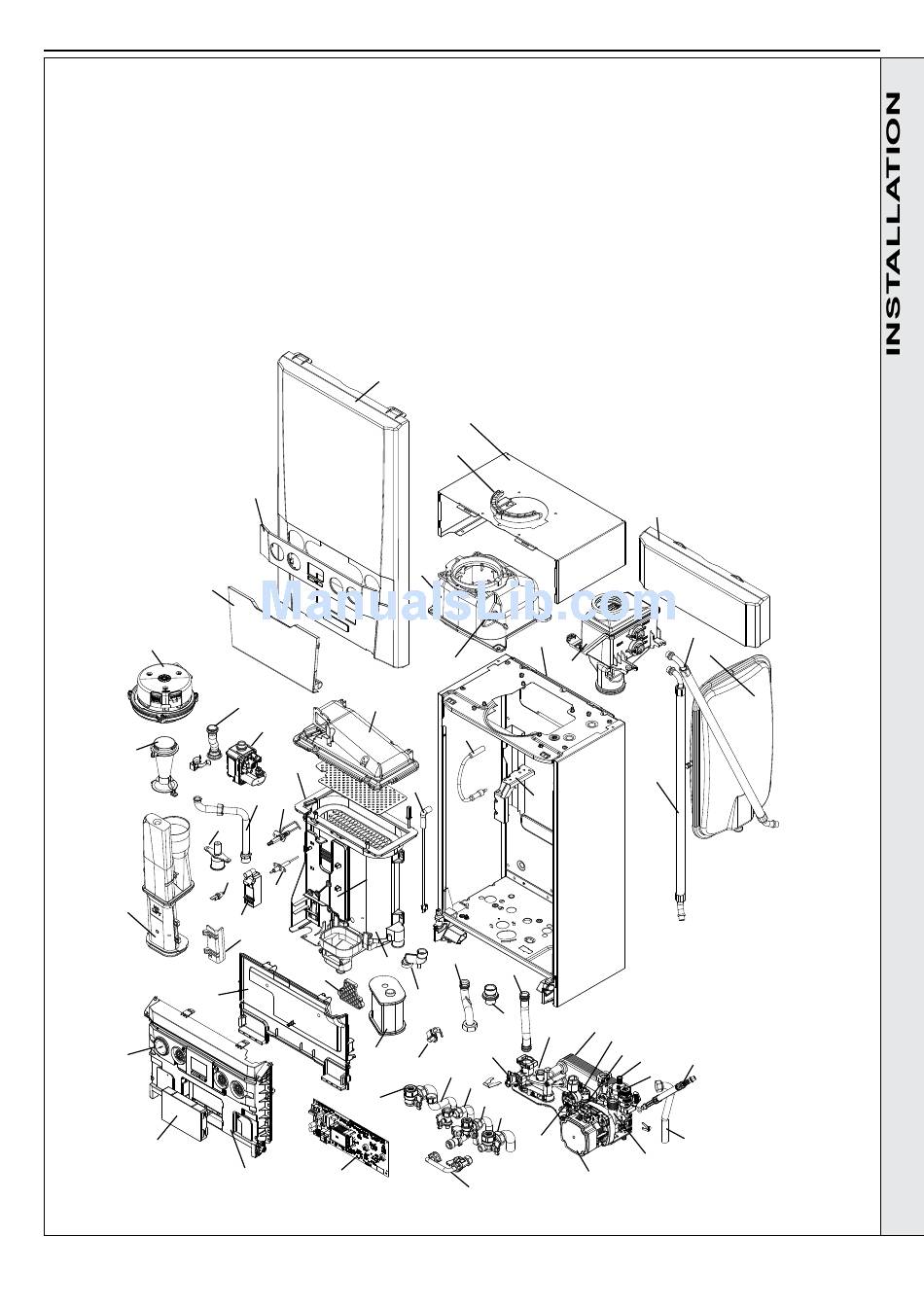

2.1 BOILER ASSEMBLY - Exploded View

Note that item numbers are linked to the spares list
104
CH Return Valve
105 CH Flow Valve
106 DHW Inlet & Outlet
107 Filling Loop
108 Pump Head
110 Air Vent Pump
111 Divertor Valve Head
112 Divertor Valve Cartridge
113 Pressure Relief Valve
114
Pipe - PRV Outlet
115 Pipe - Flow
116 Pipe - Return
117 Pipe - Expansion Vessel
118 Expansion Vessel
119 Return Group Manifold
120 Flow Group Manifold
514
215
214
223
324
135
326
Installation and Servicing
SECTION 2 - INSTALLATION
121 Plate Heat Exchanger
127 Flow Turbine
131 Water Pressure Switch
135 Pressure Gauge
203 Gas Cock
204
Pipe - Gas Inlet
205 Gas Valve
206 Pipe - Gas Injector
211 Injector Assy
214
Venturi
215 Fan
217 Burner
218 Gasket - Burner
221 Sump Clean Out Cover
223 Flue Manifold
224 Recuperator Assy
504
505
206
217
205
218
204
306
211
309 506
307
308
231
401
221
234
105
302
325
226
Air Duct Assy
228 Recuperator Inlet Pipe
229 Recuperator Outlet Pipe
231 Guide Bracket
232 Clamp Retaining Flue Turret
233 Hose Condensate Internal
234 Siphon Trap
236 Condensate Outlet Connection
238 Flue Sensing Nipple
302
PCB
304 Control Thermistor (Return)
306 Electrode Ignition
307 Electrode Detection
308
Ignitor Unit
309 Thermistor Flow
313 Ignition Lead
516
232
226
503
238
224
313
320
507
116
115
233
236
120
131
304
106
203
106
104
127
107
320
Detection Lead
324 Control Box Lid
325 Control Box Front
326 Blank Insert
401 Heat Engine
503 Wall Mounting Bracket
504 Front Panel
505 Fascia
506 Bracket - Gas Valve
507
Bracket - Expansion Vessel
512 Casing Door
514 Front Panel Door
516 Module Casing
512
228
118
229
121
111
112
117
110
113
114
119
108
17
