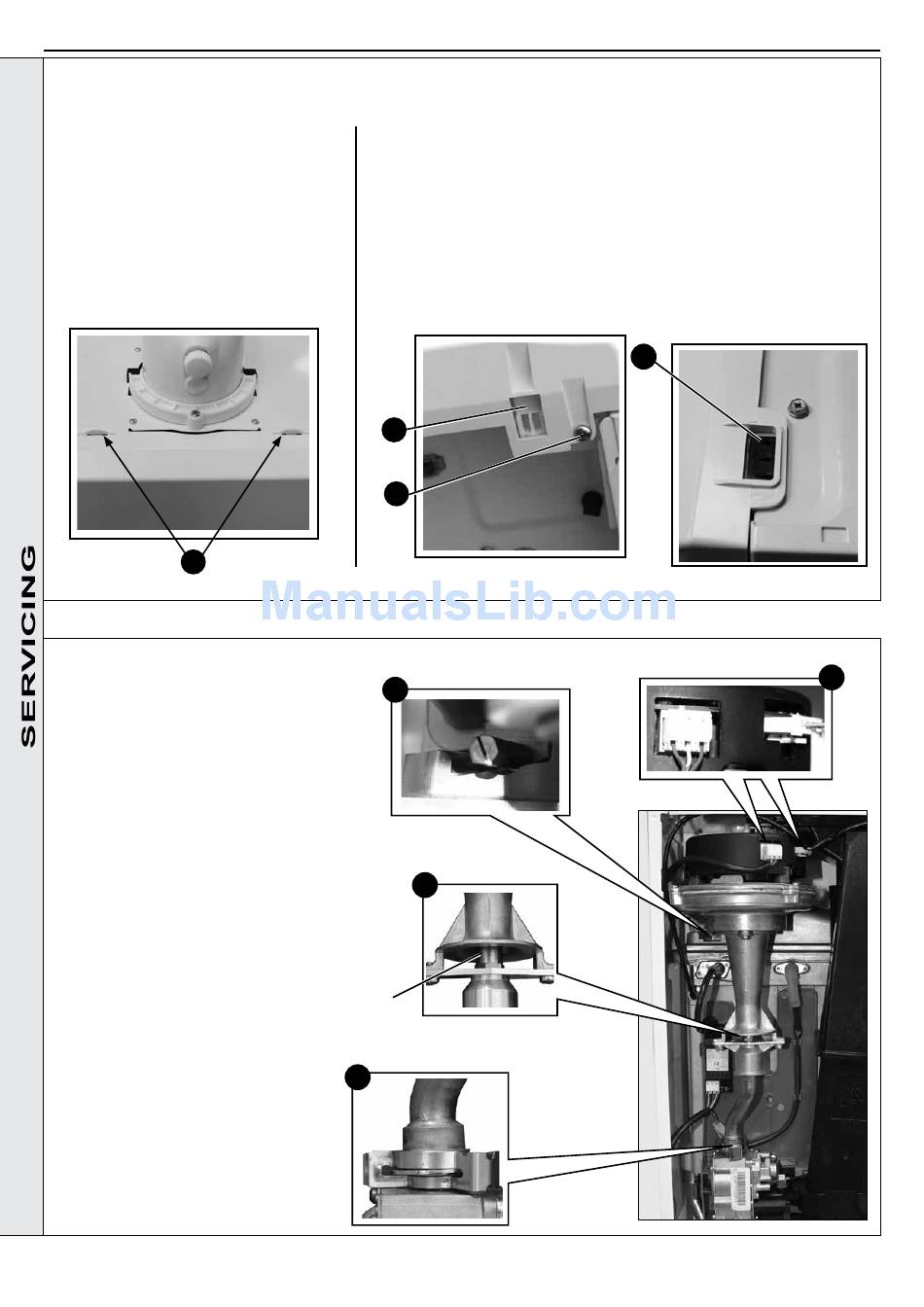

3.2 BOILER TOP POD DOOR & FRONT PANEL REMOVAL / REPLACEMENT
POD DOOR
1. Squeeze the two tabs forward and lift the
pod door upwards to remove.
2. Replace and refit in reverse order.
1

3.3 FAN AND VENTURI ASSEMBLY REMOVAL AND CLEANING

1. Disconnect the electrical leads from
the fan.
2. Remove the clip from the gas control
valve outlet and ease the pipe
upwards, rotate and then ease down to
remove.
3. Remove the extended nut on the fan
mounting bracket.
4. Lift off fan and venturi assembly.
5. Inspect the injector for blockage or
damage.
6. Inspect fan outlet sealing gasket and
replace if necessary.
40
SECTION 3 - SERVICING
FRONT PANEL REMOVAL
1. Loosen the two screws retaining the front panel.
2. Pull the two clips down to disengage and pull panel forward and upward
and remove.
FRONT PANEL REPLACEMENT
3. Hook the panel onto the top retaining clips.
4. Push the panel until the 2 bottom spring clips engage ensuring the 3
control knobs line up with the holes in the front panel.
5. Re-tighten the two retaining screws.
2
1
view from bottom of boiler
3
5
Injector
2
3
view from top of boiler
Installation and Servicing
