UNPACKING CONT'D
Note. This flue system incorporates a removable flue outlet nose that utilises a push fit location system. This enables the
installation of deflector, high level, soffit or balcony outlet flue kits without the removal of the whole 'B' pack terminal. The
appliance must not be operated without the desired outlet nose correctly fitted in place.
Note. Location dimples must be aligned with terminal mounting frame.

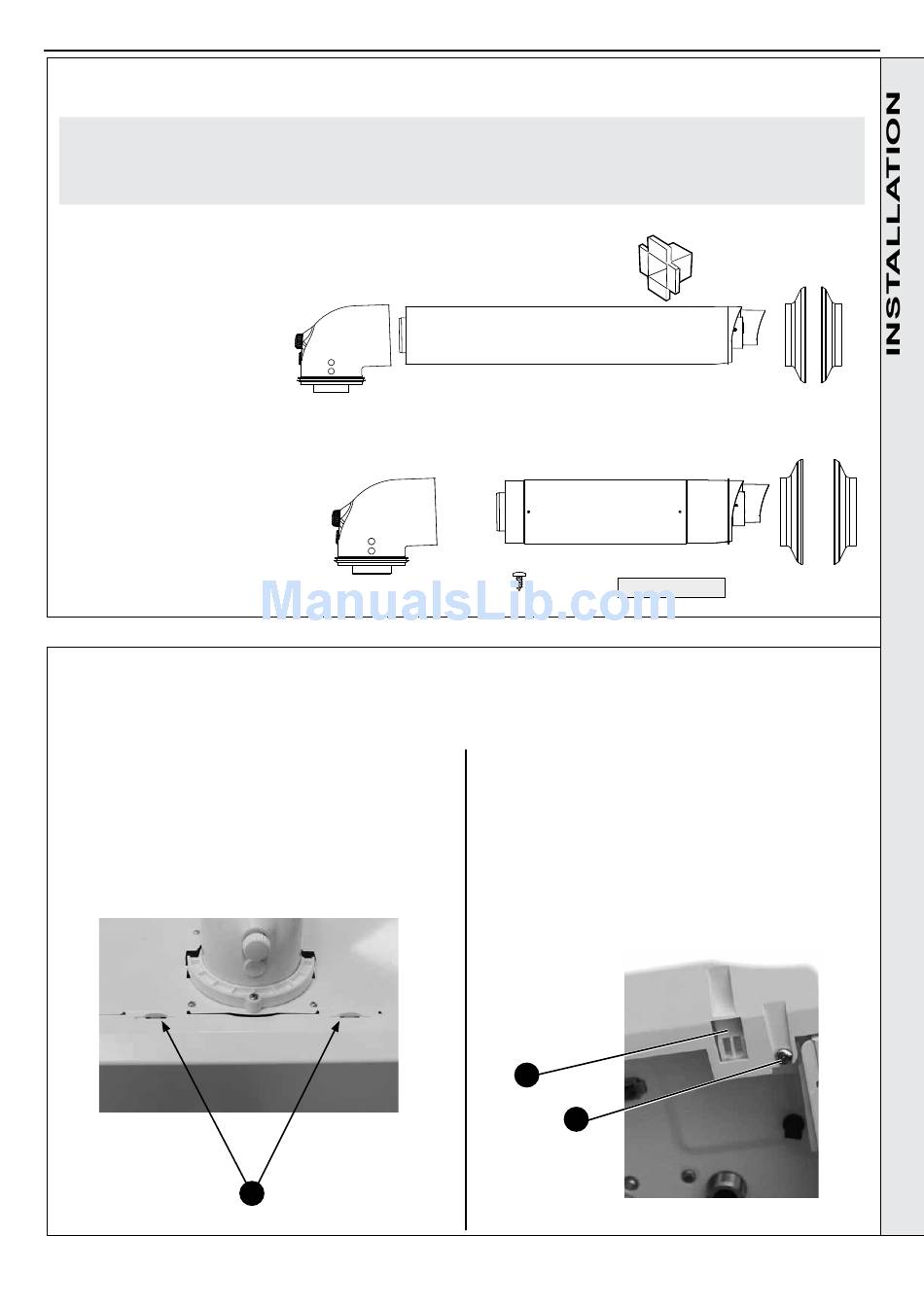

Pack B Contents Non-Telescopic
A Flue terminal
B Flue turret
C Rubber terminal wall seal
D Cutting Aid
E Wall Seal (white)
Pack B Contents Telescopic
A Telescopic flue terminal
B Flue turret
C Rubber terminal wall seal
D Screw
E Sealing Tape
F Wall Seal (white)
2.3 POD DOOR & FRONT PANEL REMOVAL
POD DOOR
1. Squeeze the two tabs forward and lift the pod door
upwards to remove.
Installation and Servicing
SECTION 2 - INSTALLATION
B
B
1
A
A
D
BOILER FRONT PANEL
1. Loosen the 2 screws retaining the front panel.
2. Pull the two clips downwards to disengage.
3. Pull the front panel forward and upwards to remove.
2
1
D
E
F
E
C
C
