Chapter 5: Maintaining Disk Modules
Deskside
76

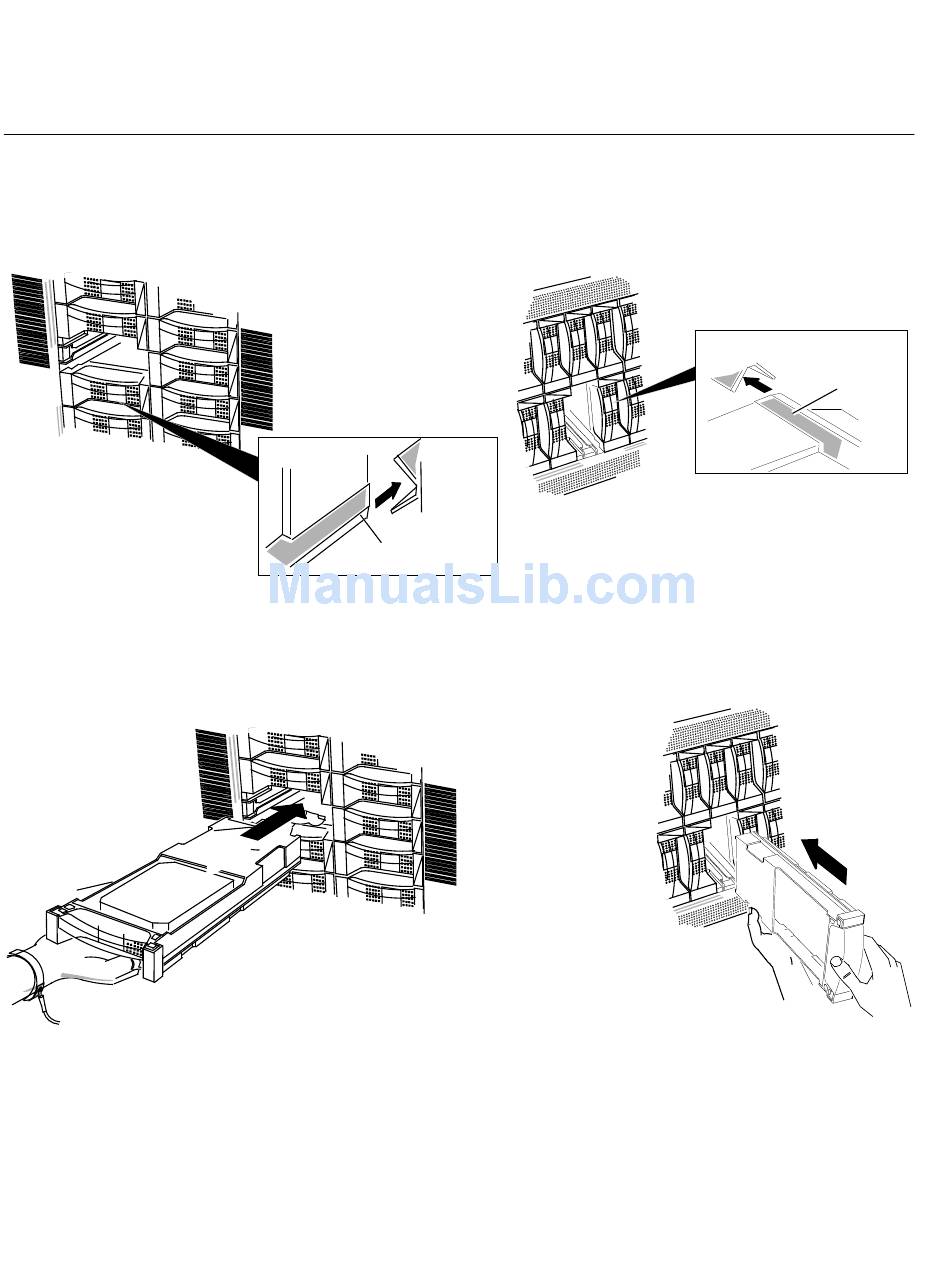

9. Engage the disk module's guide in the chassis guide slot, as shown in
Figure 5-13.
Guide slot
Disk module's guide
Figure 5-13 Engaging the Disk Module Guide
10. Insert the disk module, as shown in Figure 5-14. Make sure it is
completely seated in the slot.
Deskside
Figure 5-14 Inserting a Disk Module
Guide slot
Rack
Rack
Disk module's
guide
