Figure 3-2 Disk Module Locations - Silicon Graphics CHALLENGE RAID Owner's Manual

Chapter 3: Operating the Storage System
40
In this command,
diskposition
disk is located on (a through e; be sure to use lower case) and
number (0 through 3). Figure 3-2 diagrams disk module locations.
Deskside
A1 A0
B1 B0
C1 C0
D1 D0
E1 E0
A3 A2
B3 B2
C3 C2
D3 D2
E3 E2

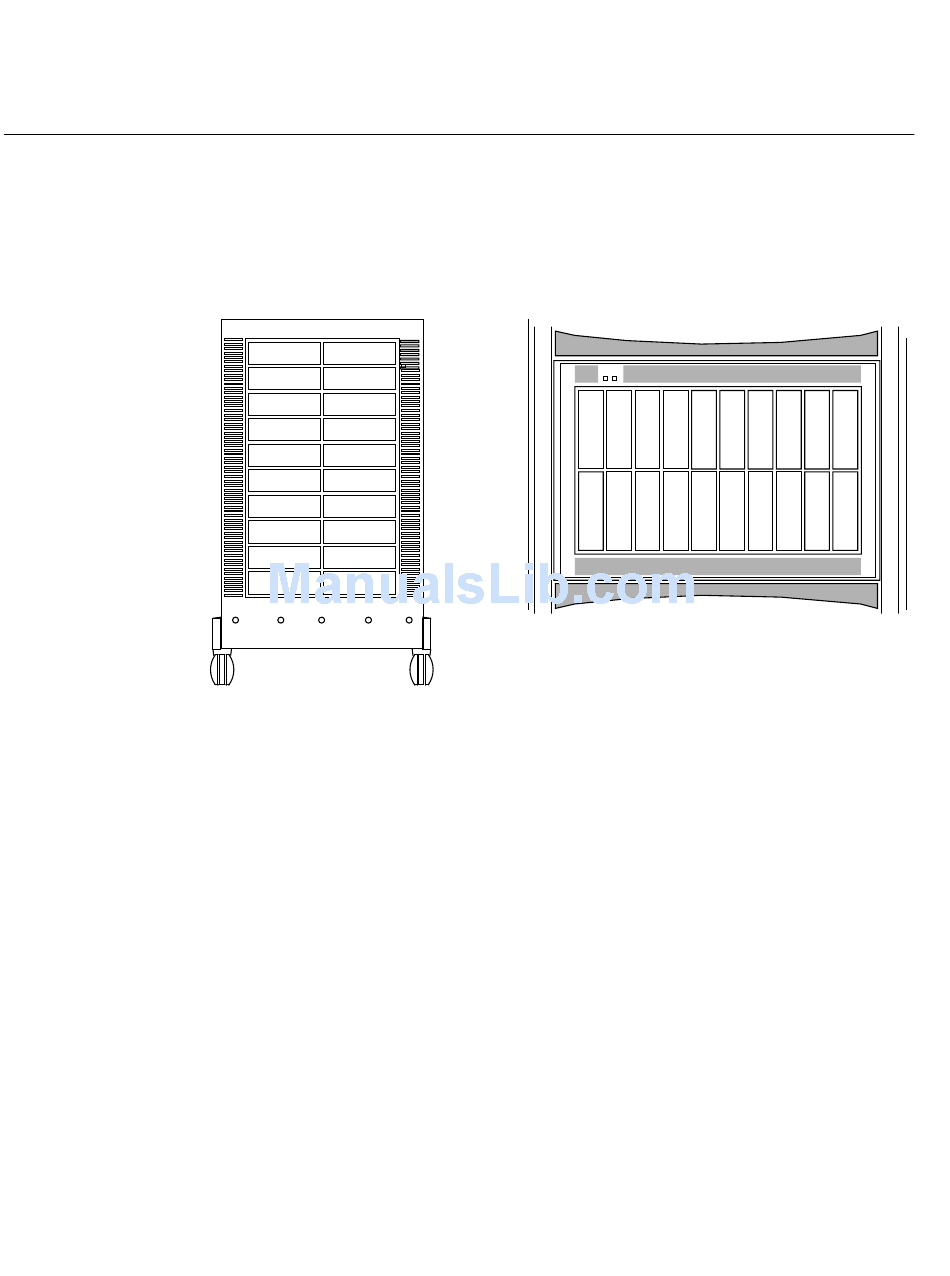

Figure 3-2 Disk Module Locations
For example, the following command gets information about disk A2.
raid5 -d scsi4d210 getdisk a2
A sample output of this command follows:
A0 Vendor Id: SEAGATE
A0 Product Id: ST15150N
A0 Lun: 0
A0 State: Bound and Not Assigned
A0 Hot Spare: NO
A0 Prct Rebuilt: 100
A0 Prct Bound: 100
A0 Serial Number: 032306
A0 Capacity: 0x000f42a8
A0 Private: 0x00009000
A0 Bind Signature: 0x1c4eb2bc
A0 Hard Read Errors: 0
has the format
Chassis assembly in rack
A0 B0 C0 D0
A1 B1 C1 D1 E1
5 to 20 disk modules in groups of 5
, where is the bus the
bd b
is the device
d
E0 A2 B2 C2 D2 E2
A3 B3 C3 D3 E3
