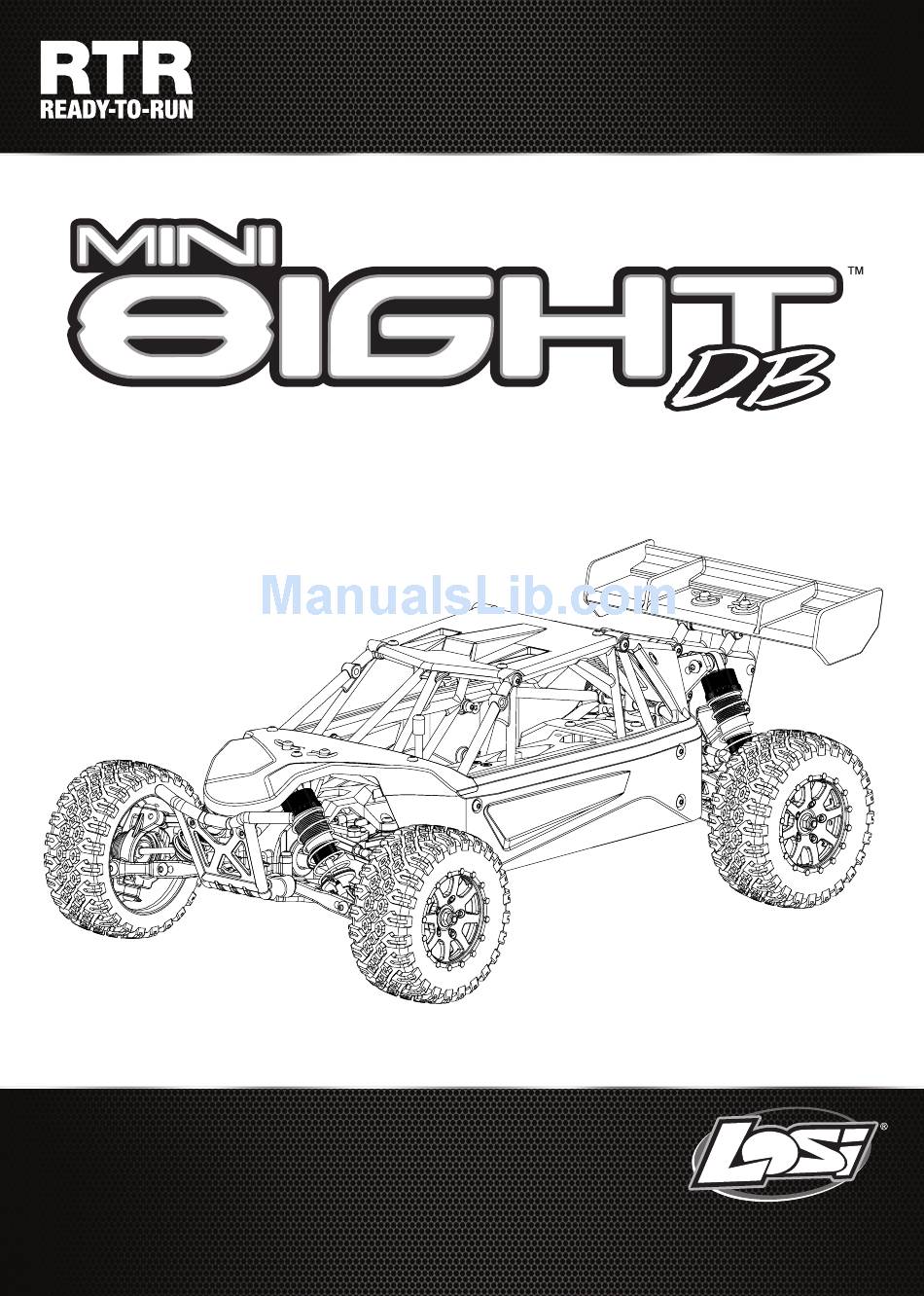

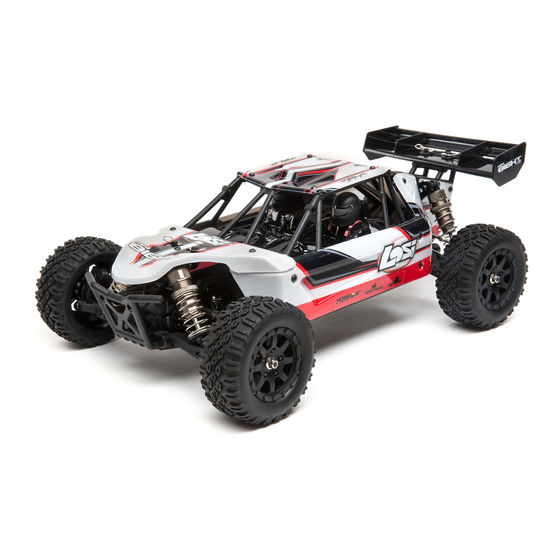

- Page 1 1/14-SCALE ELECTRIC 4WD BUGGY INSTRUCTION MANUAL BEDIENUNGSANLEITUNG MANUEL D’UTILISATION MANUALE DI ISTRUZIONI Before operating this vehicle, please read all printed materials thoroughly. Horizon Hobby is not responsible for inadvertent errors in this manual.
-
Page 2: Table Of Contents
IC Information ......................10 small screws and parts used on this model. EU Compliance Statement ..................10 Parts Listings ......................35–36 Optional Parts ......................36 Exploded View .....................37–41 Setup Sheet ......................42–43 LOSI MINI 8IGHT-DB RTR • INSTRUCTION MANUAL LOSI MINI 8IGHT-DB RTR • INSTRUCTION MANUAL... -
Page 3: Contents
3. Install the AA batteries in the transmitter. Only use alkaline or rechargeable batteries. 7. Drive your vehicle. 4. Install a fully charged battery in the vehicle. 8. Perform any necessary maintenance. LOSI MINI 8IGHT-DB RTR • INSTRUCTION MANUAL LOSI MINI 8IGHT-DB RTR • INSTRUCTION MANUAL... -
Page 4: Charging Warnings
2 seconds. 4. Ensure the ESC is powered off. 9. Close the body cage and reinstall the body clips. 5. Connect the battery to the ESC. LOSI MINI 8IGHT-DB RTR • INSTRUCTION MANUAL LOSI MINI 8IGHT-DB RTR • INSTRUCTION MANUAL... -
Page 5: Specktrum Stx2 Radio System
4. Center the ST TRIM and TH TRIM dials on the transmitter. 5. Turn the steering wheel to Full Right. Power the transmitter on while holding the steering wheel to the Right. 6. Release the steering wheel when the receiver LED stops flashing. LOSI MINI 8IGHT-DB RTR • INSTRUCTION MANUAL... -
Page 6: Control Test
Operating at low speed increases heat in the electronic speed control (ESC). Overheating can damage the vehicle and failure may result. LOSI MINI 8IGHT-DB RTR • INSTRUCTION MANUAL LOSI MINI 8IGHT-DB RTR • INSTRUCTION MANUAL... -
Page 7: Mini Brushless Waterproof Esc
4. Push the gears together while tightening the motor screws. 5. Remove the paper. Check the mesh at 3–5 different locations around the spur gear for a small amount of movement. 6. Reinstall the gear cover. LOSI MINI 8IGHT-DB RTR • INSTRUCTION MANUAL... -
Page 8: Tuning, Adjusting & Maintaining Your Vehicle
Rebind and calibrate way when the car slides/rotates calibration The throttle does not reduce when The steering channel was reversed after Rebind and calibrate the car slides/rotates calibration LOSI MINI 8IGHT-DB RTR • INSTRUCTION MANUAL LOSI MINI 8IGHT-DB RTR • INSTRUCTION MANUAL... -
Page 9: Limited Warranty
Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative. LOSI MINI 8IGHT-DB RTR • INSTRUCTION MANUAL... -
Page 10: Fcc Information
For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product. LOSI MINI 8IGHT-DB RTR • INSTRUCTION MANUAL LOSI MINI 8IGHT-DB RTR • INSTRUCTION MANUAL... -
Page 11: Parts Listings
Mini 8IGHT Mini 8IGHT LOSB1919 Rear Shock Spring Set: Mini 8IGHT Federnsatz hinten: Mini 8IGHT Jeu de ressorts d’amortisseur arrière: Set molla ammortizzatore posteriore: Mini 8IGHT Mini 8IGHT LOSI MINI 8IGHT-DB RTR LOSI MINI 8IGHT-DB RTR • MANUALE DI ISTRUZIONI... -
Page 12: Optional Parts
Corpo ammort. posteriore, anodizzato anodisés dur LOS210012 Body Set, Clear: Mini 8IGHT-DB Karosseriesatz, Transparent: Mini 8IGHT-DB Mini 8IGHT-DB - Carrosserie transparente Set carrozzeria, trasparente: Mini 8IGHT-DB LOSI TEN-RALLYX RTR • MANUALE DI ISTRUZIONI LOSI MINI 8IGHT-DB RTR LOSI MINI 8IGHT-T RTR... - Page 13 LOS210011 White/Red LOS210012 Clear LOS235005 TLR5913 Included in LOS235005 LOS210010, LOS210011 & LOS210012 LOS235005 LOS235005 LOS235005 LOS235005 TLR5913 LOS235005 LOS235005 LOS235005 LOS216001 LOS216001 LOS211007 LOSI MINI 8IGHT-DB RTR LOSI TEN-RALLY X RTR • MANUALE DI ISTRUZIONI LOSI MINI 8IGHT-T RTR...
- Page 14 LOSI TEN-RALLYX RTR • MANUALE DI ISTRUZIONI LOSI MINI 8IGHT-DB RTR...
- Page 15 LOSI MINI 8IGHT-DB RTR LOSI TEN-RALLY X RTR • MANUALE DI ISTRUZIONI...
- Page 16 LOSI TEN-RALLYX RTR • MANUALE DI ISTRUZIONI LOSI MINI 8IGHT-T RTR • MANUALE DI ISTRUZIONI LOSI MINI 8IGHT-DB RTR...
- Page 17 LOSI MINI 8IGHT-DB RTR LOSI MINI 8IGHT-T RTR • MANUALE DI ISTRUZIONI LOSI TEN-RALLY X RTR • MANUALE DI ISTRUZIONI...
-
Page 18: Setup Sheet
Inside Outside Electronics Fuze 3800Kv TAZER Mini Brushless Waterproof ESC 1200mAh 7.2V Ni-MH 60T/14T 2000mAh 7.4V 2S Li-Po (Gearing: 60T/14T) Notes For 3s operation 60T/12T is the recommended gearing. LOSI TEN-RALLYX RTR • MANUALE DI ISTRUZIONI LOSI MINI 8IGHT-DB RTR... -
Page 19: Setup Sheet
SETUP SHEET Mini 8IGHT-DB Inside Outside Electronics Notes LOSI MINI 8IGHT-DB RTR... - Page 20 WWW.LOSI.COM 49970 Created 2/2017 LOS01009T1/T2 ©2017 Horizon Hobby, LLC. Losi, 8IGHT, DSM, DSM2, DSMR, Dynamite, Fuze, Tazer, EC3, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
