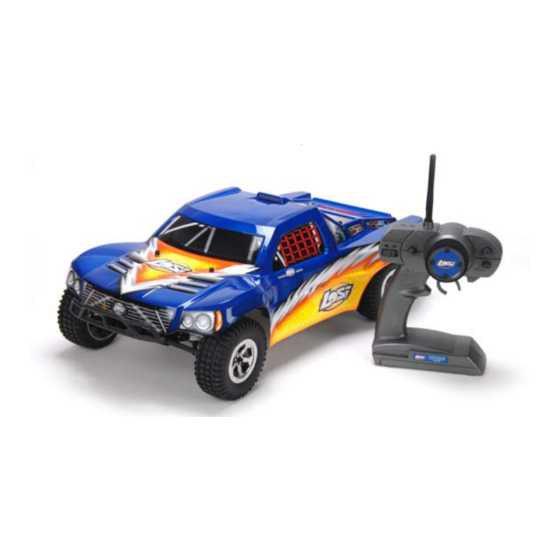

1/10-scale electric short course truck

Advertisement

1/10-SCALE ELECTRIC
LOSB0105 1/10 STRIKE Short Course Truck RTR
LOSB0105BD 1/10 STRIKE Short Course Truck Bind-N-Drive
CONNECT - REGISTER - WIN
Register your product online so we can notify you
about the latest option parts, product updates, tech
tips, service bulletins and more. Visit
WWW.LOSI.COM/REGISTER to stay connected.
For registering your Losi Product you will be automati-
cally entered for a chance to win the Losi-Pick-Your
Prize Sweepstakes. The winner will be allowed to
select a total prize package of $1,000 (retail value)
based on his/her preference.
SHORT COURSE TRUCK
Not Responsible for errors. All prices
subject to change without notice.
Losi, a Division of Horizon Hobby, Inc.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LOSB0105 and is the answer not in the manual?

Questions and answers

Summary of Contents for Team Losi LOSB0105

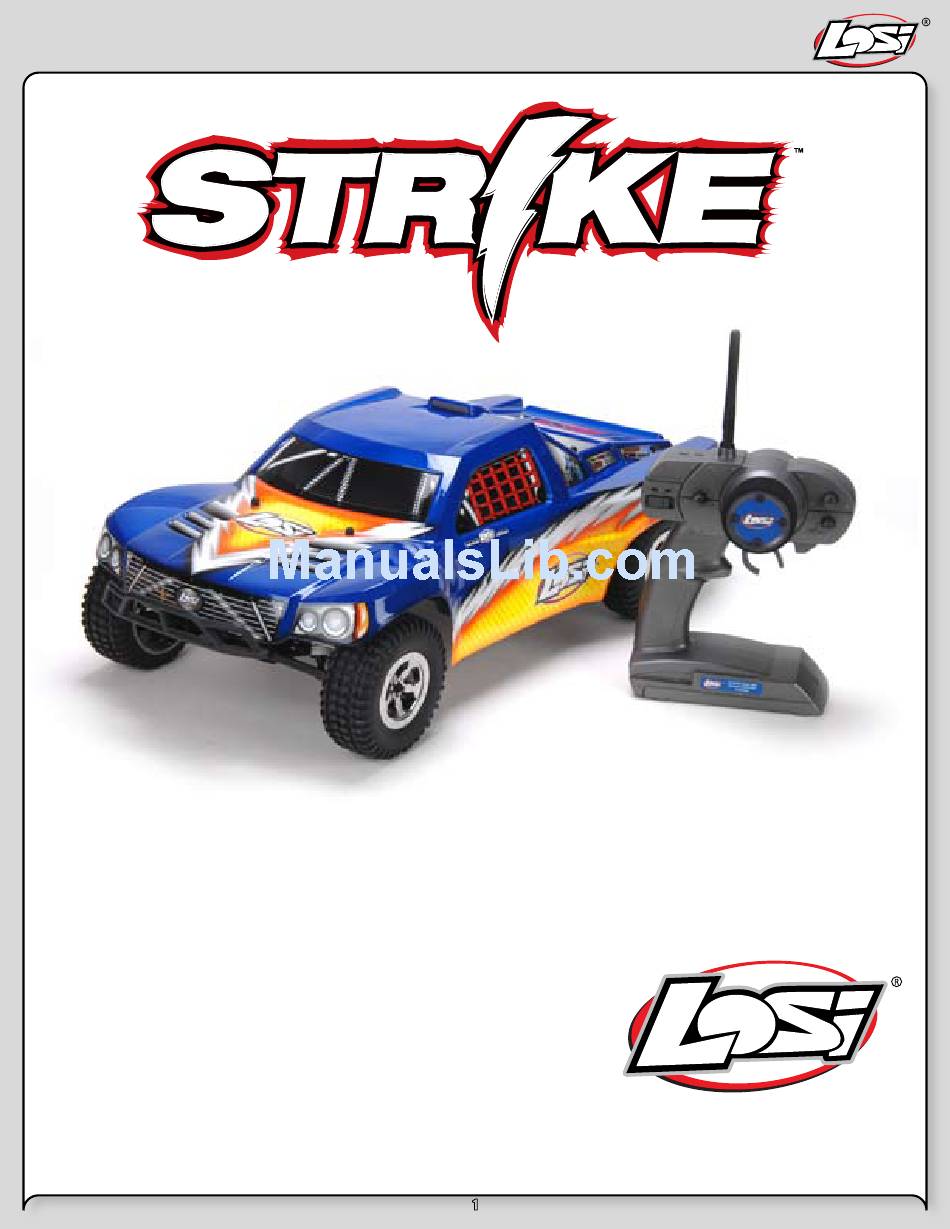

  • Page 1 1/10-SCALE ELECTRIC SHORT COURSE TRUCK LOSB0105 1/10 STRIKE Short Course Truck RTR LOSB0105BD 1/10 STRIKE Short Course Truck Bind-N-Drive CONNECT - REGISTER - WIN Register your product online so we can notify you about the latest option parts, product updates, tech tips, service bulletins and more.
  • Page 2: Table Of Contents

    Table of Contents Introduction Thank you for purchasing the Losi® 1/10 Strike Short Course Introduction................Truck. We are confident you will be satisfied with the performance of this durable and resilient vehicle. Safety Precautions..............Battery/Charging............... Understanding that you are anxiously wanting to get your 1/10 Strike SCT ready for the open road, it will be to your long term Supplied and Required Equipment........
  • Page 3: Safety Precautions

    Safety Precautions Batteries and Charging: We hope you operate this RC model in a safe, reasonable and cautious fashion in order to enjoy your vehicle. Should you operate this vehicle without a cautious and reasonable approach it may The 1/10 Strike SCT uses rechargeable batteries such as NiMH result in serious injury and/or property damage.
  • Page 4: Supplied And Required Equipment

    Supplied and Required Equipment Supplied Tools: Four (4) AA batteries NiMH battery charger with automatic “peak detection” or LiPo-compatible charger recommended. 2-Way wrench Flat Turnbuckle Wrench Three (3) Hex Wrenches (L shaped) 3/32, 5/64, and 1/16 Bind Plug Recommended Accessories: MultiPro™...
  • Page 5 The Losi 1/10 Strike SCT Overview Rear Suspension Arm Rear Tie Rod Rear Body Mount Slipper Clutch Adjustment Access Motor On/Off Switch EC3 Battery Connector Battery Positioning Blocks Digital Servo 2.4GHz DSM Receiver Front Body Mount Front Tie Rod Front Suspension Arm Front Camber Link...
  • Page 6 The Losi LSR-3000 Radio System Overview Steering Wheel Steering Trim (TH. Trim) Antenna Power On/Off Switch Throttle Trim (TH. Trim) Dual Rate Steering Adjustment Throttle/Brake Trigger Auxiliary Channel Throttle Channel Steering Channel Binding Port...
  • Page 7 1/10 Strike SCT Electronics System Overview Motor MRX-3000 DSM Receiver MSC 12L 12T ESC Digital Servo One-Touch Bind Plug Setup Button Male EC3 Battery Connector...
  • Page 8 MSC-12L Fwd/Rev ESC Features Speed Control Programming • LiPo, NiMH/NiCd compatible NOTE: While in the programming mode, no power is applied to • 4 user selectable modes—Forward/reverse, Forward only the motor. race, Practice mode with slow acceleration, and Crawler. Battery Selection: When the ESC is powered on, the LED will be •...
  • Page 9: Installing Batteries

    Installing Batteries: Transmitter Remove the battery cover from the bottom of the transmitter by sliding it away from the base of the handle. Install the four (4) AA-size batteries into the base, noting polarity when inserting each battery. Transmitter with batteries installed Reinstall the battery cover by sliding it back on the handle base.
  • Page 10 Battery Pack(s): To install the battery pack remove the battery hold-down strap by removing the clip from the front mounting boss, and then, while lifting the strap, pulling forward in one motion. After you have inserted the fully-charged battery pack reinstall the battery hold-down strap. Notice that the battery hold-down has a flat side while the other side has strengthening ribs;...
  • Page 11: Quick Start

    Quick Start Note: Please read the entire manual to gain a full understanding of the 1/10 Strike SCT vehicle, fine-tuning the setup and performing maintenance. Read the safety precautions found on page 3. This is important for your safety and prevention of personal injury. Charge the battery pack you have chosen (NOT INCLUDED).
  • Page 12 The Losi LSR-3000 Radio System The Losi LSR-3000 radio system with Spektrum™ 2.4GHz DSM® technology included with the 1/10 Strike SCT operates on 2.4GHz and provides 79 unique channels, which are automatically selected when the transmitter and vehicle are turned on. The communication between the transmitter and receiver begins in the few seconds after both are turned on.
  • Page 13 Receiver There is no adjustment required of the receiver. Please note the different slots for connection. Auxiliary Channel Throttle Channel Steering Channel Binding Port There are bind, channel one, channel two and auxiliary slots. The bind slot is used to bind the transmitter to the receiver. The Losi LSR-3000 DSM® radio system uses a unique GUID ID to “bind”...
  • Page 14 Driving the Strike SCT How you drive your 1/10 Strike SCT will also affect your run Please note the following precautions before running your 1/10 times. If you are performing runs, going from a standstill to Strike SCT: full speed repeatedly, you are asking a lot from your batteries and electronics.
  • Page 15: Tuning, Adjusting And Maintaining

    Tuning the Front End of the 1/10 Strike SCT Tuning, Adjusting & Maintaining the 1/10 Strike SCT Shock Location: The 1/10 Strike SCT has two mounting locations on the Periodically examine your 1/10 Strike SCT for the following: front shock tower. The position can be easily adjusted by simply moving the top of the shock to another hole.
  • Page 16 Tuning the Front End of the 1/10 Strike SCT (CONT’D) Tuning the Front End of the 1/10 Strike SCT (CONT’D) Inboard Camber Location: Outboard Camber Location: The 1/10 Strike SCT provides two outboard mounting NOTE: This is an adjustment that is difficult to make a generic statement for as it can have slightly different options.
  • Page 17 Tuning the Rear End of the 1/10 Strike SCT Tuning the Rear End of the 1/10 Strike SCT (CONT’D) Shock Location: Pro-squat is generated by raising the rear of the pivot Moving the shocks in on the arm will result in more relative to the front.
  • Page 18 Tuning the Chassis of the 1/10 Strike SCT (CONT’D) Adjusting Gear Mesh: Incorrect gear mesh is the most common cause of stripped spur Battery Position: gears. To set the gear mesh, one method is to cut a narrow strip This is a critical adjustment that is often overlooked but of notebook paper and thread it in between the gears.
  • Page 19 Vehicle runs slowly/slow acceleration: Troubleshooting Your 1/10 Strike SCT Check the battery connectors. Many questions are the result of simple user errors or Confirm that the battery is charged. minor adjustments which are easily addressed. If after reading below you cannot resolve your problem, then Vehicle will not reverse: please call the Horizon Support Team at 1-877-504-0233.
  • Page 20: Warranty And Repair Policy

    Warranty and Repair Policy Warranty and Repair Policy (CONT’D) Age Recommendation If you as the Purchaser or user are not prepared to accept the 14 years or over. This is not a toy. This product is not intended liability associated with the use of this Product, you are advised for use by children without direct adult supervision.
  • Page 21 Warranty and Repair Policy (CONT’D) Warranty and Repair Policy (CONT’D) Warranty Inspection and Repairs Germany To receive warranty service, you must include your original Electronics and engines requiring inspection or repair should be sales receipt verifying the proof-of-purchase date. Provided shipped to the following address: warrantyconditions have been met, your Product will be repaired or replaced free of charge.
  • Page 22: Declaration Of Conformity

    No. HH2009080901 No. HH2009080902 Product(s): Strike RTR Product(s): Strike BND Item Number(s): LOSB0105 Item Number(s): LOSB0105BD Equipment class: Equipment class: The object of declaration described above is in conformity The object of declaration described above is in conformity with the requirements of the specifications listed below, with the requirements of the specifications listed below, following the provisions of the European R&TTE directive...
  • Page 23: Rc Terminology

    RC Terminology Receiver – A device mounted into the vehicle that receives and decodes a signal sent by a transmitter. Servos, ESC and other BEC (Battery Elimination Circuit) – The BEC is used to devices are plugged into the receiver. eliminate the need for a receiver pack to power the radio system.
  • Page 24 Replacement Parts List Part Number Description Price LOSA6215 #4 Narrow Washers (10) $1.99 LOSA6300 4-40 Hex nuts $1.49 LOSA6903 Sealed Ball Bearing 3/16 x 3/8 $6.99 LOSA8200 Body Clips $1.49 LOSB0805 LSR-3000 DSM Transmitter $62.99 LOSB0806 MRX-3000 DSM Receiver $74.99 LOSB0818 MSX Digital Servo $16.99...
  • Page 25 Replacement Parts List (CONT’D) Part Number Description Price LOSB3005 Slipper Plates $11.99 LOSB3006 Transmission Main Shaft $7.99 LOSB3007 Ball Bearing 8 x12 x 3.5mm $4.99 LOSB3010 Slipper Rebuild Kit $5.99 LOSB3016 Motor Plate: STRIKE $7.99 LOSB3437 Spur Gear 86T $3.99 LOSB3438 Spur Gear 88T $3.99...
  • Page 26 Optional Parts for the 1/10 Strike SCT (CONT’D) Part Number Description Price LOSA5221 Silicone Shock Oil, 15Wt, 2 oz $3.99 LOSA5222 Silicone Shock Oil, 20Wt, 2 oz $3.99 LOSA5223 Silicone Shock Oil, 25Wt, 2 oz $3.99 LOSA5224 Silicone Shock Oil, 30Wt, 2 oz $3.99 LOSA5225 Silicone Shock Oil, 35Wt, 2 oz...
  • Page 27 LOSA8200 Unless otherwise noted: All fasteners are contained in the 1/10 Strike SCT Screw Kit - LOSB4050...
  • Page 28 Unless otherwise noted: All fasteners are contained in the 1/10 Strike SCT Screw Kit - LOSB4050...
  • Page 30 LOSB7044 LOSB7214 LOSB7214 LOSB2829 LOSB2903 LOSB2903 LOSB2011 LOSB2903 LOSB2011 LOSB2847 LOSB2829 LOSB2903 LOSB2829 LOSB2958 LOSB2903 LOSB2902 LOSB2902...
  • Page 31 Notes:...
  • Page 34 Arms Level Losi 30 wt Stock Strike Inside Middle Outside 1-Middle 0 (Pivot Block has 2 ) Arms Level Middle Losi 30 wt Stock Strike OUTSIDE INSIDE 2-Inside Rear Losi 550...
  • Page 35 Inside Middle Outside OUTSIDE INSIDE...
  • Page 36 ™ 1/10-SCALE ELECTRIC SHORT COURSE TRUCK 2010 Losi, A division of Horizon Hobby, Inc. Not responsible for typographical errors. All pricing subject to change without notice. 800-0359 The Spektrum trademark is used with permission of Bachmann Industries, Inc. Spektrum radios and accessories are exclusively available from Horizon Hobby, Inc. Printed in China...
