2.1 General

FLOW-BUS is a 3-wire, RS485-based fieldbus communication system for parameter value exchange between
digital BRONKHORST HIGH-TECH B.V. products.
In this system each instrument/device is equipped with a micro-controller for its own dedicated task but also for
exchanging parameter value information with other instruments/devices connected to the same FLOW-BUS
system.

2.2 Technical information

FLOW-BUS systems may have a minimum of 2 and a maximum of 126 connections.
The maximum length for datalines between the first and the last connection may be up to approx. 600 meters.
Longer distances are only possible in combination with special bus-repeater modules.
Each instrument/device connection T-part (stub) must be kept as short as possible (max. cable length 0.5
meter!).
The baudrate used to transport messages is 187.5 Kbaud.
FLOW-BUS is a multi-master network with a token-ring architecture.

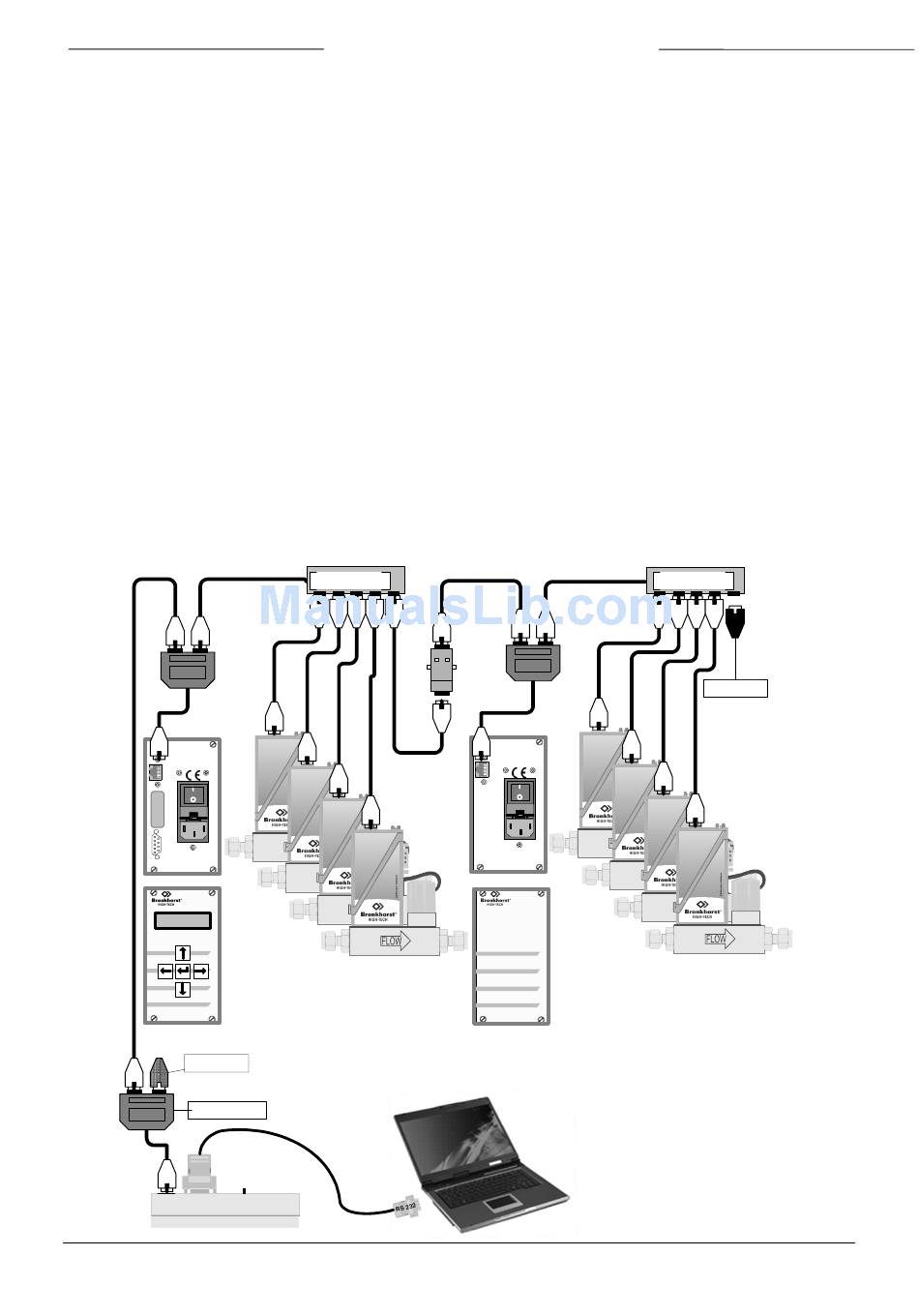

3
