CONTROLLING WITH AN EXTERNAL PC

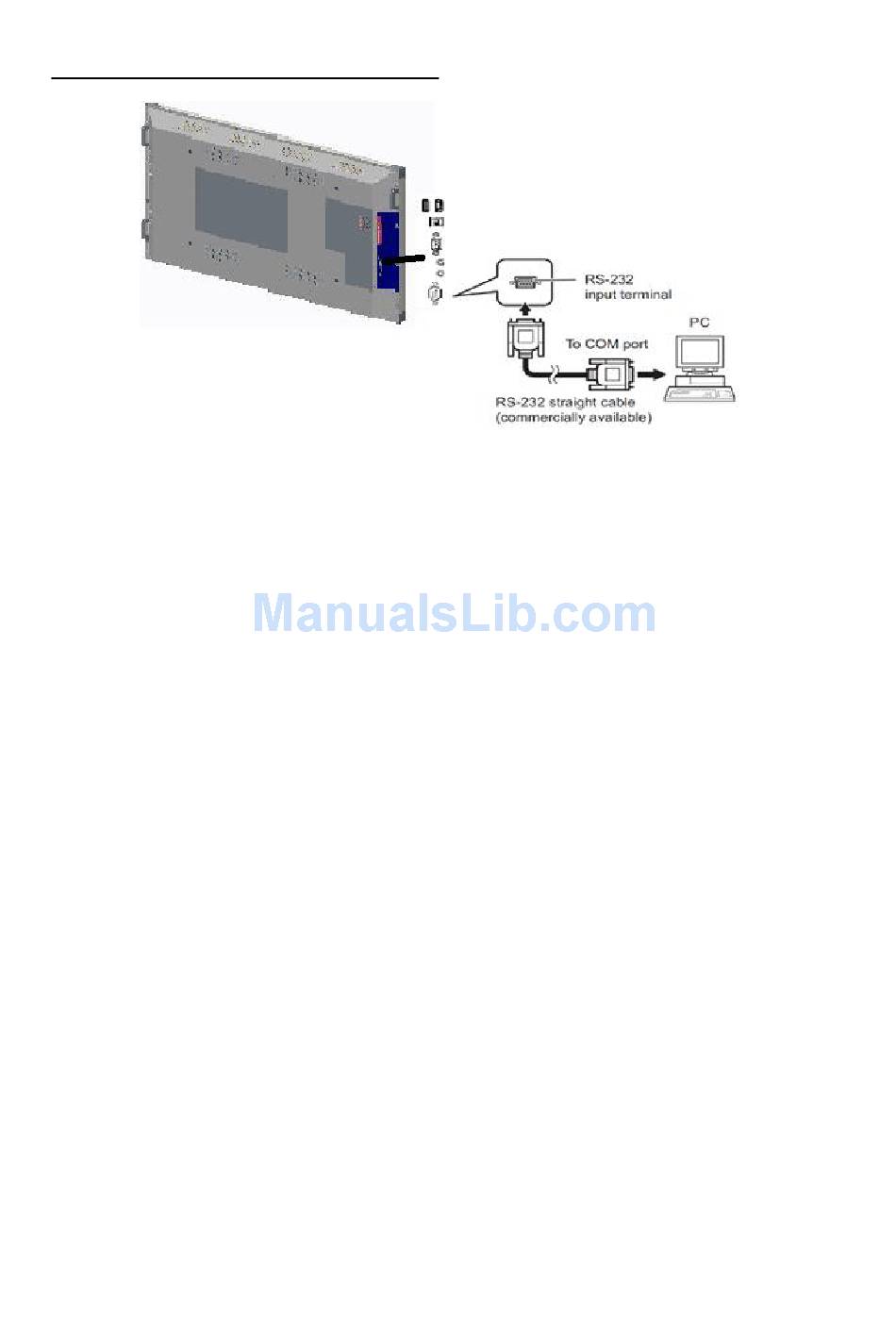

• You can control the interactive monitor from an
external PC via RS-232 (COM port) on the PC.
• For instance, system source can be changed by
RS-232 from remote computer.
• When a command is sent from the PC to the
interactive monitor, the interactive monitor
operates according to the received command and
sends a response message to the PC.
Equipment/Tools:
• RS-232 (female) to RS-232(male) cable
• USB to RS-232(male) cable
• Notebook or PC which has USB port
• Installed program on remote PC to send
commands:
In general, the RS-232 commands are sent for
operating the implemented functions via serial port
and utility which is named as Docklight.
Setup file and help documents can be found
Docklight website.
