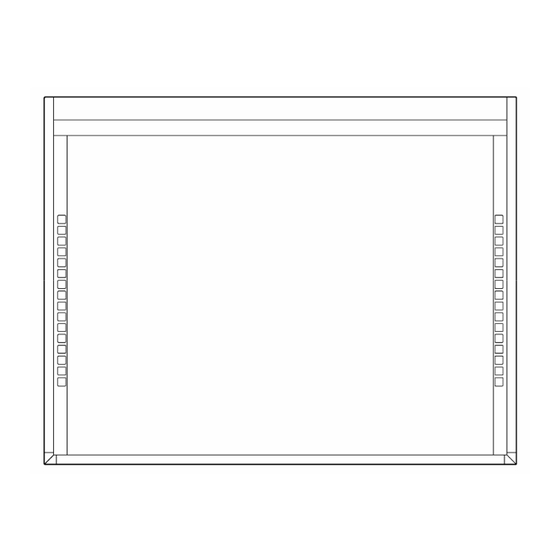

StarBoard FX-DUO Series
Notices
Reproduction or reprinting, without permission, of this User's Guide or any part thereof is prohibited.
The contents of this User's Guide are subject to change without prior notice.
Every effort has been made to ensure that this User's Guide is complete and correct. However, should any
questionable points, mistakes, etc., come to your attention, please inform the vendor.
Hitachi Software Engineering Co., Ltd., assumes no responsibility for losses resulting from or related to
the use of this product. Refer to "3. Appendix 3.7 Product Warranty Policy" at the end of this User's
Guide for details on the warranty and liabilities.
Disclaimers
Hitachi Software Engineering Co., Ltd. assumes no liability and makes no warranty, either express or
implicit, regarding the contents of this User's Guide.
Also, the company makes no warranty as to the product's suitability, merchantability or fitness for a
particular intended use.
All products of Hitachi Software Engineering Co., Ltd., described in this User's Guide are presently for
sale or are site-licensed.
Users who purchased the aforesaid product(s) will bear the costs of all required services, repairs, and
damages resulting from defects in this product, and will bear the costs of direct or indirect damages
(including the loss of profits or required information) that resulted from the product defects.
Moreover, Hitachi Software Engineering Co., Ltd., retains the right to revise this User's Guide and to
modify the contents thereof, without any obligation to notify anyone.
English
1

Advertisement

   Also See for Hitachi StarBoard FX-DUO-63

   Related Manuals for Hitachi StarBoard FX-DUO-63

   Summary of Contents for Hitachi StarBoard FX-DUO-63

  • Page 1

    Also, the company makes no warranty as to the product's suitability, merchantability or fitness for a particular intended use. All products of Hitachi Software Engineering Co., Ltd., described in this User's Guide are presently for sale or are site-licensed. Users who purchased the aforesaid product(s) will bear the costs of all required services, repairs, and damages resulting from defects in this product, and will bear the costs of direct or indirect damages (including the loss of profits or required information) that resulted from the product defects.

  • Page 2

    Windows is a trademark of Microsoft Corporation (U.S.) and in other countries. Other trademarks and product names are trademarks and/or registered trademarks of their respective holders. Manual Creation Dates November 2009, Fourth Edition FXD-EU091101 All Right Reserved, Copyright(c) 2008, 2009, Hitachi Software Engineering Co.,Ltd. English...

  • Page 3

    StarBoard FX-DUO Series Introduction Thank you very much for purchasing HitachiSoft's StarBoard FX-DUO-63/FX-DUO-77 /FX-DUO-88W (henceforth referred to as "StarBoard"). This User's Guide has been created for people who already have a working knowledge of personal computers (henceforth referred to as "PC"). Please make sure that you understand the contents of this User's Guide and use the software correctly.

  • Page 4

    StarBoard FX-DUO Series Safe Handling Safe Handling Markings and Symbols Various markings and symbols are used in this User's Guide and on this product, to ensure the safe and correct use of this product and to prevent personal injury and property damage. These symbols and their meanings are as explained below.

  • Page 5

    StarBoard FX-DUO Series Safe Handling Safety Precautions Required Precautions (1) Precautions Regarding Operation CAUTION Do not make modifications. Do not make any adjustments, repairs, or modifications not given in this User's Guide as doing so may lead to personal injury or damage to the product.

  • Page 6

    StarBoard FX-DUO Series Safe Handling (2) Dealing with Trouble NOTICE What to do in case of emission of smoke, strange odor, or strange noise If an abnormal condition such as emission of smoke, strange odor, or strange noise happens to occur for some reason, immediately disconnect the product's USB cable from the PC.

  • Page 7

    StarBoard FX-DUO Series Safe Handling NOTICE Disconnect the USB cable during extended periods of non-use. For safety reasons, disconnect the USB cable if the product is not going to be used for an extended period of time. Failure to comply may result in fire.

  • Page 8

    StarBoard FX-DUO Series Safe Handling (5) Precautions Regarding Setup Environment WARNINGS Wall mounting work should be performed by a construction specialist. Improper work m ay result in death or personal injury due to the product falling during operation. Always use the specified mounting unit .

  • Page 9

    StarBoard FX-DUO Series Safe Handling NOTICE Regarding the setup environment Set up this product on a level floor surface with a weight bearing capacity of 150 kg/m or more, and which is made of floor materials that will not deform or become depressed due to movement by casters.

  • Page 10

    StarBoard FX-DUO Series Safe Handling Careful thought was given to the cautions on this device and in this User's Guide. However, unanticipated circumstances might occur. When operating this product, users themselves must exercise caution as well as follow instructions. CAUTIONS Precaution Contents Page(s) Tighten the screws securely.

  • Page 11: Table Of Contents

    StarBoard FX-DUO Series Contents Contents 1. Introduction...................... 1-1 Preparations ......................1-1 1.1.1 Product Outline ......................1-1 1.1.2 Features......................... 1-1 Parts Check ......................1-2 1.2.1 StarBoard ........................1-2 1.2.2 Stand (option)........................ 1-3 1.2.3 Electronic Pen (option) ....................1-4 1.3 Role of Each Part ....................1-5 1.3.1 StarBoard ........................

  • Page 12

    StarBoard FX-DUO Series English...

  • Page 13: Introduction

    StarBoard FX-DUO Series Introduction 1. Introduction Preparations This chapter describes the preparations to be made before using StarBoard. First-time users of StarBoard should read through this chapter. 1.1.1 Product Outline The StarBoard FX-DUO Series is an extremely convenient and easy-to-use electronic whiteboard. After setting up the provided software on a PC that is connected to a projector, you can use your finger or the stylus pen that is included with the product to operate the PC or import to the PC in real time characters or images that are drawn on the whiteboard.

  • Page 14: Parts Check

    StarBoard FX-DUO Series Introduction 1.2 Parts Check After unpacking, make sure that all the following parts are present. 1.2.1 StarBoard [1] Parts Name Qty. StarBoard Pen holder (with installation part) Stylus pen Wall-mounting bracket StarBoard Software x.x (*1) FX-DUO Series User’s Guide (this manual) Warranty Sheet Sponge mat (small) Sponge mat (large) (*2)

  • Page 15: Stand (option)

    StarBoard FX-DUO Series Introduction 1.2.2 Stand (option) [1] Parts Name Qty. Stand vertical support Stand crossbar Stand foot with casters Board receiving bracket (left-hand version) Board receiving bracket (right-hand version) Board fixing bracket Hex socket head cap screw, with collar Hex socket head cap screw Pan head screw (10)

  • Page 16: Electronic Pen (option)

    StarBoard FX-DUO Series Introduction 1.2.3 Electronic Pen (option) [1] Parts Name Qty. Electronic pen AAA alkaline battery Spare pen tip English...

  • Page 17: Role Of Each Part

    StarBoard FX-DUO Series Introduction 1.3 Role of Each Part 1.3.1 StarBoard (1) Digitiser Storage Area (5) Casters Receives information regarding characters These are the casters for moving the board. or images drawn with the pen or the user's After setting up the StarBoard, be sure to finger, and transmits this data to the PC.

  • Page 18: Function Area

    StarBoard FX-DUO Series Introduction 1.3.2 Function Area The function area is provided with shortcut keys for the functions that are frequently used in the StarBoard Software. Use by clicking the middle of the symbol with your pen or finger. With the exception of touch mode/pen mode selection and one-time right click, you can customise the shortcuts with the software.

  • Page 19: Electronic Pen (option)

    StarBoard FX-DUO Series Introduction 1.3.3 Electronic Pen (option) (1) Battery cover Open the cover when inserting or replacing the battery. Refer to page 2-4 in this User's Guide for details. (2) Side buttons Operations such as right click and scrolling can be assigned to these buttons.

  • Page 20: Stand Setup Method

    StarBoard FX-DUO Series Introduction 1.4.1 Stand Setup Method Reconfirm that all the parts are present before assembling and setting up the stand (option). FX-DUO-88W is only for the wall-mounting. Do not use FX-DUO-88W with the stand. CAUTION Tighten the screws securely. Failure to comply may cause the stand to collapse, resulting in personal injury, or may cause damage to this product due to shock of impact from the board falling.

  • Page 21

    StarBoard FX-DUO Series Introduction [2] Install the board CAUTION Be sure to use two or more people for this work. Failure to comply may cause the board to fall, resulting in personal injury, or may cause damage to this product due to shock of impact. Tighten the screws securely.

  • Page 22

    StarBoard FX-DUO Series Introduction [3] Adjust the height CAUTION Be sure to use two or more people for this work. Failure to comply may cause the board to fall, resulting in personal injury, or may cause damage to this product due to shock of impact. The StarBoard can be positioned at six height levels.

  • Page 23: Wall-mounting Setup Method

    StarBoard FX-DUO Series Introduction 1.4.2 Wall-Mounting Setup Method CAUTION Keep the wall material in mind when installing. Installing the board on to the wall in a way that does not suite the wall material, may result in the board falling off the wall causing injuries or damage to the board. Furthermore, wall installation may not be possible depending on the wall.

  • Page 24

    StarBoard FX-DUO Series Introduction [2] Install the board CAUTION Be sure to use two or more people for this work. Failure to comply may cause the board to fall, resulting in personal injury, or may cause damage to this product due to shock of impact. Attach the wall-mounting brackets to the top square holes (both sides) of the stays on the back of the board.

  • Page 25: Pen Holder Setup Method

    StarBoard FX-DUO Series Introduction Remove the tape cover and fix the board on to the wall. NOTICE When detaching the wall the paint might peel off from the wall and the doble-faced tape might remain on the wall by the adhesiveness of the double-faced tape's glue and the wall. Install the board at your own risk.

  • Page 26

    StarBoard FX-DUO Series Introduction [2] Removal method To remove the pen holder, apply pressure to the top of the pen holder and pull it back. [3] To change the position of the pen holder (a) Remove the installation part from the pen holder. (b) Insert the installation part into the opposite groove.

  • Page 27: Equipment Connection Method

    StarBoard FX-DUO Series Introduction 1.4.4 Equipment Connection Method Before Starting to Connect Equipment Install the StarBoard Software on your PC before starting to connect equipment. The equipment might not operate correctly if it is connected without the software being installed. Connect the PC, projector and StarBoard according to the following procedure.

  • Page 28

    StarBoard FX-DUO Series English...

  • Page 29: How To Use

    StarBoard FX-DUO Series How to Use 2. How to Use 2.1 How to Use Touch Mode This section gives a basic description of how to use the board in touch mode. 2.1.1 Character Input To input characters, use your finger or the stylus that was provided with the product. NOTICE Use an input tool with a thickness of least 7 mm.

  • Page 30: Pc Operations

    StarBoard FX-DUO Series How to Use - Using your finger Extend your finger and touch the board. In the same way as the stylus pen, if you touch the board with anything other than your finger or you are too close to the board, it might cause an incorrect operation.

  • Page 31: Starboard Fx-duo Series How To Use

    StarBoard FX-DUO Series How to Use CAUTION Do not strike the board forcefully with the stylus pen, bend it, or apply an excessive load to it. Failure to comply may result in damage to the stylus pen or personal injury. Important Keep the stylus pen in the pen holder when not in use.

  • Page 32: How To Use The Electronic Pen

    StarBoard FX-DUO Series How to Use 2.2 How to Use the Electronic Pen This section gives a basic description of how to use the electronic pen (option). 2.2.1 Inserting the Battery Perform the preparations for using the electronic pen. CAUTION Be sure to install batteries correctly.

  • Page 33: Using The Electronic Pen

    StarBoard FX-DUO Series How to Use 2.2.2 Using the Electronic Pen To use the electronic pen to draw characters or images, place the tip of the electronic pen on the board and then move the pen. When you release the tip of the electronic pen from the board, the writing is complete.

  • Page 34: Basic Operations Of The Electronic Pen

    StarBoard FX-DUO Series How to Use 2.2.3 Basic Operations of the Electronic Pen In the default setting of the electronic pen, the pen tip button is set to emulate the left click button of a mouse. While Windows is in operation, the following mouse operations can be performed using the pen tip button.

  • Page 35: Start Method

    StarBoard FX-DUO Series How to Use 2.3 Start Method 2.3.1 Start Method (1) Connect the devices with reference to the connection method on page 1-15. (2) Turn on the power switch of the projector. (3) Turn on the power switch of the PC to start Windows. (4) Adjust the position of the projector so that the Windows screen projected by the projector is within the input area (refer to page 1-5 of this User's Guide).

  • Page 36

    StarBoard FX-DUO Series How to Use (6) Run "LsCanWiz.exe" located under "My Computer" → "C Drive" → "Program Files" → "Hitachi Software Engineering" → "FX-DUODriver", and adjust the sensor according to theinstructions on pages 3-5. Important Conduct sensor adjustments upon first-time operations and whenever the board has been moved.

  • Page 37: Appendix

    Appendix StarBoard FX-DUO Series 3. Appendix 3.1 Troubleshooting Before assuming the product is broken, be sure to check adjustments, proper handling procedures, the possibility of faulty cable connections, etc. Recognition-Related Problems Problem What to check What to do Is the USB cable connected Connect the USB cable to the PC.

  • Page 38

    Appendix StarBoard FX-DUO Series Input-Related Problems Problem What to check What to do The input position does not Has position alignment Perform proper position alignment. match. been performed properly? Other than the above Contact a support center. The position cannot be Have the StarBoard and Adjust the position of the StarBoard aligned properly.

  • Page 39

    Appendix StarBoard FX-DUO Series Problem What to check What to do Electronic pen operation is Is a remote controller for Stop operating the remote controller. unstable or stops. AV equipment being operated while using the pen? The battery charge of the Replace the batteries.

  • Page 40: Adjusting The Sensor (for Windows)

    [1] Press the "Adjust Camera" button on the "LSaDrv Touch Sensor Error" dialog box displayed on the PC screen. Manual Startup In order to manually run the sensor adjustment wizard, open "My Computer" and execute "LsCanWiz.exe" located under "C Drive" → "Program Files" → "Hitachi Software Engineering" → "FX-DUODriver". English...

  • Page 41

    Appendix StarBoard FX-DUO Series [2] "Camera Adjustment Wizard Start" window appears. Press "All Adjust." [3] Press "Finish." This completes sensor adjustment. After making adjustments, check that input can be performed normally. English...

  • Page 42: Regularly Auto Sensor Adjustment

    Appendix StarBoard FX-DUO Series 3.3 Regularly Auto Sensor Adjustment While using StarBoard, auto sensor adjustment will execute regularly. To use StarBoard comfortably this function is recommended to use. 3.3.1 Sensor Auto Adjustment Procedure [1] Confirmation message of auto sensor adjustment will be displayed after 7days passed from first connect of StarBoard to PC.

  • Page 43

    Appendix StarBoard FX-DUO Series [2] Sensor adjusting screen will be displayed during auto adjustment. Do not touch the board surface until auto adjustment completed. [3] Following window will be displayed when sensor auto adjustment finished. Press “OK”. This is all of auto sensor adjustment. Confirm the normal input after adjustment * In case of adjustment error, following window will be displayed.

  • Page 44: System Specifications

    Appendix StarBoard FX-DUO Series 3.4 System Specifications Item Specification Model name StarBoard FX-DUO-77 StarBoard FX-DUO-63 Detection method Infrared image sensor system Digitiser resolution 0.05 mm Sampling rate Approx. 100 points/second (when using USB 1.1 Full Speed) Interface USB 1.1 (cable length: 4.9 m) USB 1.1 (cable length: 5.1 m) Approx.

  • Page 45

    Appendix StarBoard FX-DUO Series Item Specification Model name StarBoard FX-DUO-88W Detection method Infrared image sensor system Digitiser resolution 0.05 mm Sampling rate Approx. 100 points/second (when using USB 1.1 Full Speed) Interface USB 1.1 (cable length: 4.7 m) Approx. 88 inches, Effective screen size (mm) 1,888 (W) ×...

  • Page 46: Proper Care And Cleaning

    Appendix StarBoard FX-DUO Series 3.5 Proper Care and Cleaning Clean the StarBoard periodically so that you may use it for a long time to come. (1) Cleaning the StarBoard ・ To clean the StarBoard, use a soft cloth dampened with whiteboard cleaner or a diluted neutral cleansing agent that does not contain a polishing compound.

  • Page 47: Product Warranty Policy

    Appendix StarBoard FX-DUO Series 3.7 Product Warranty Policy 1. During the free warranty service period, if a malfunction occurs during normal use, the malfunction will be corrected without charge, according to the provisions of the warranty. Furthermore, if the customer registration card accompanying the warranty is not returned to our company, the customer information will not be registered;...

  • Page 48

    Appendix StarBoard FX-DUO Series 5. If this product malfunctions, review the contents of this user’s guide. If the problems remain irreparable, contact the dealer. The dealer will determine whether or not the product must be repaired, so please contact them. If the customer sends the product to our company without RMA (Return Merchandise Authorisation) number, it might not be covered by warranty.
