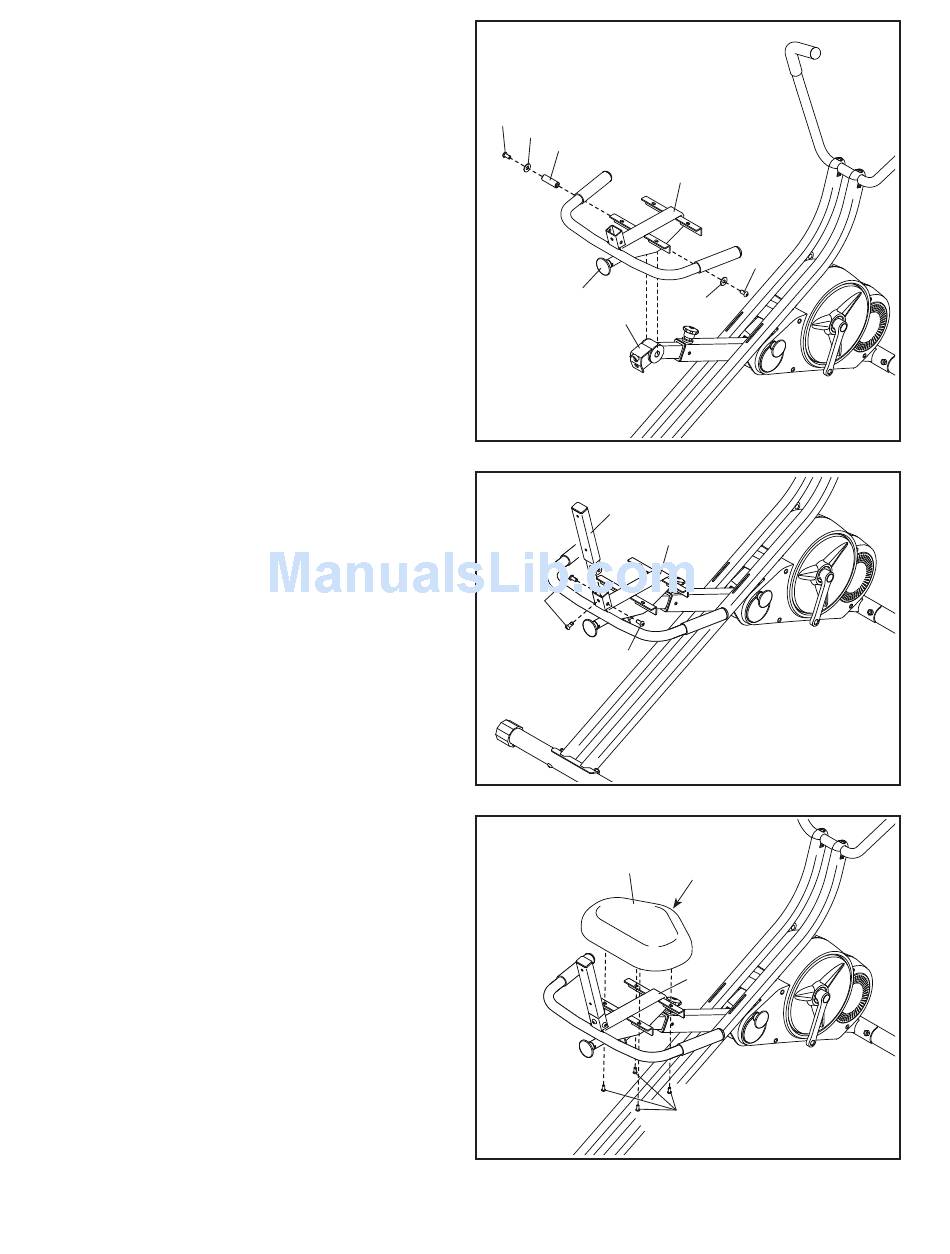

6. Orient the Seat Frame (8) near the Seat Post (7)
as shown. Pull the Pin Knob (20) outward and
slide the Seat Frame onto the Seat Post.
Insert the Seat Axle (57) through the Seat Frame
(8) and the Seat Post (7). Tighten an M8 x 20mm
Screw (70) and an M8 x 25mm Washer (72) into
each end of the Seat Axle at the same time.
7. Attach the Seat Bracket (9) to the Seat Frame
(8) with three M8 x 20mm Screws (70); start all
the Screws, and then fully tighten them.
8. Orient the Seat (10) as shown; make sure that
the nose (B) of the Seat is in the location
shown.
Attach the Seat (10) to the Seat Frame (8) with
four M6 x 14mm Screws (78); start all the
Screws, and then fully tighten them.
6
70
72
57
20
7
7
9
70
70
8
10
8
8
70
72
8
B
8
78
