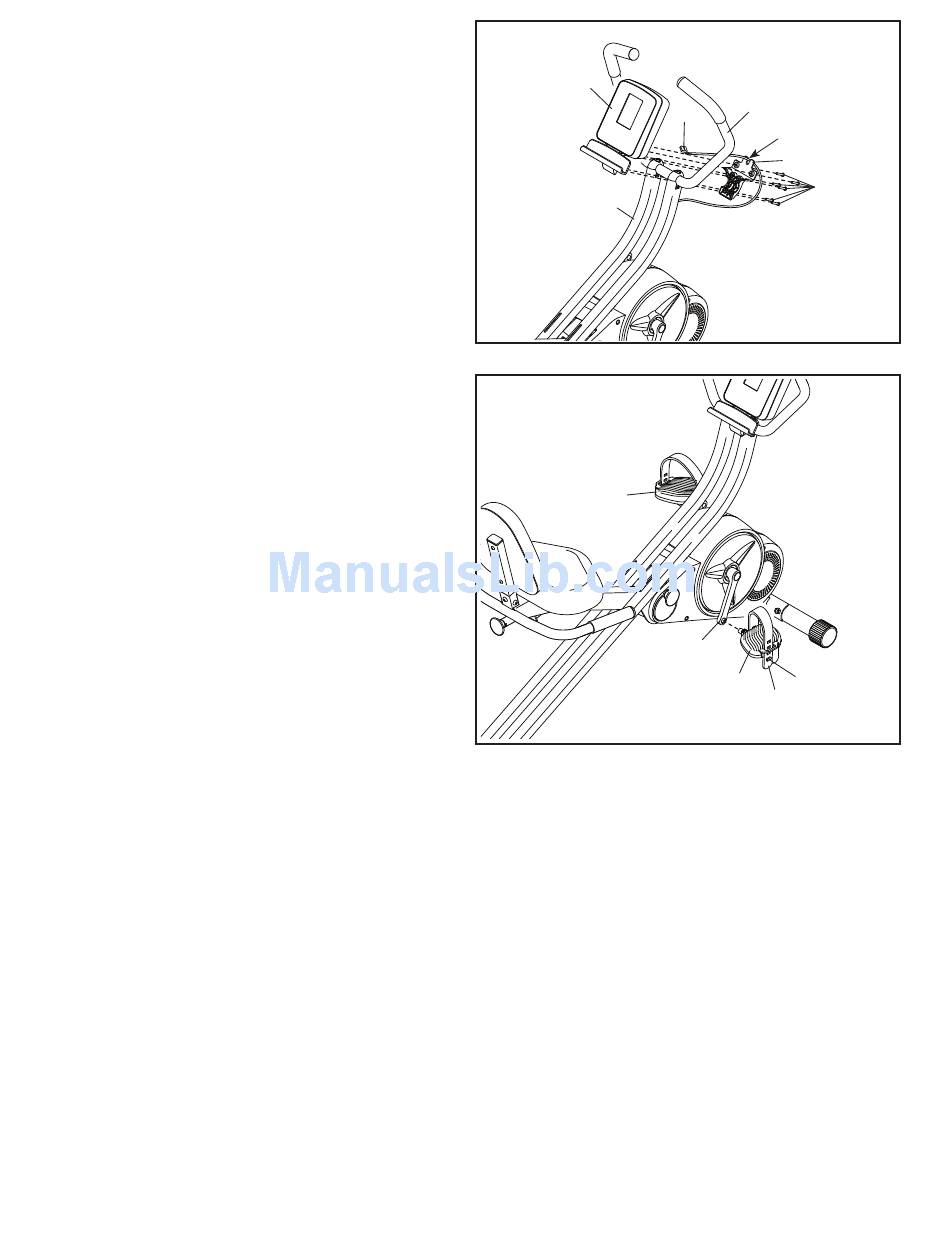

11. Have a second person hold the Console (6) near
the Handlebar (5). Connect the Main Wire (87) to
the receptacle on the back of the Console.
Tip: Avoid pinching Main Wire (87). Make
sure that the Main Wire is routed through
the notch (D) in the Console Bracket (40).
Attach the Console (6) to the Upright (2) with
six M4 x 12mm Machine Screws (89) and the
Console Bracket; start all the Screws, and then
tighten them.
Then, pivot the Console (6) to the desired angle.
12. Identify the Right Pedal (55).
Using an adjustable wrench, firmly tighten the
Right Pedal (55) clockwise into the Right Crank
Arm (18).
Firmly tighten the Left Pedal (56)
counterclockwise into the Left Crank Arm
(not shown). IMPORTANT: You must turn the
Left Pedal counterclockwise to attach it.
Adjust the right strap (E) to the desired position,
and press the ends of the strap onto the tabs (F)
on the Right Pedal (55). Adjust the strap on
the Left Pedal (56) in the same way.
13. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Extra parts may be included. Place a mat under the exercise bike to protect the floor.
