Summary of Contents for Xantech CA1250
-

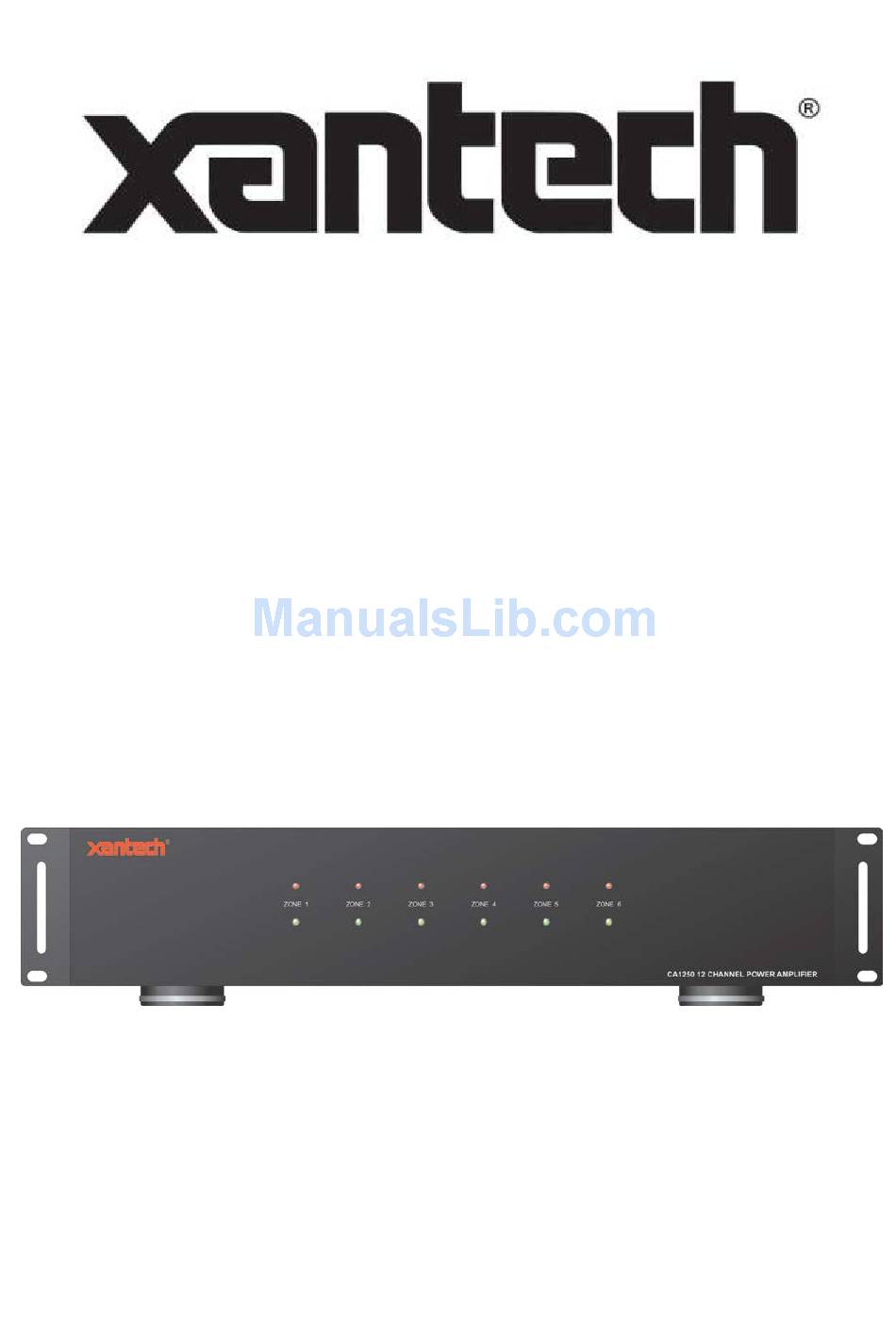

Page 1: User Manual
INSTALLATION INSTRUCTIONS CA1250 DISTRIBUTED SOUND POWER AMPLIFIER User Manual... - Page 2 Page2 Model CA1250 IMPORTANT SAFETY INSTRUCTIONS-READ BEFORE OPERATING EQUIPMENT...
- Page 3 Model CA1250 page:3 13. Cleaning – Clean only with dry cloth. 14. Power Lines – An outdoor antenna should be located away from the power lines. 15. Nonuse Periods – The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
- Page 4 The Ch. Input Line/Bus switch selects between either the Bus Input (button depressed) or the individual Zone’s Input signal. Additional features include: any amplifier with no signal at its input is automatically shut off and the CA1250 is able to operate either...
-
Page 5: Features And Functions
Model CA1250 Page:5 Features and Functions AC Mains. The CA1250 comes configured to connect to 110V-120V/60Hz mains. For use with 220V-240V/50Hz mains set the rear panel Voltage Select switch to220V-240V (also, replace the T10.0AL/250V fuse with a T5.0AL/250V fuse). Front Panel 1. -
Page 6: Rear Panel
4-ohm load would therefore be 2-ohms to a bridged amp and if the amplifier isn’t designed to run Safely into such a low impedance (which the CA1250 is not) damage may occur to the amplifier. - Page 7 (Note: use only one type of source). For Bus outputs: These RCA connectors are simply in parallel with the Bus Inputs and enable you to interconnect the CA1250 with another CA1250 or amplifier. ( Note: only the Input Bus signals will be patched to Output).
-
Page 8: Physical Location And Mounting
Physical location and mounting 1. The CA1250 is convection cooled. That is, it depends on the natural free flow of air up through the slot perforations in the bottom plate, over the internal heat dissipating fins, then out the top cover, for adequate cooling. -
Page 9: Technical Specifications
Page: 9 Model CA1250 Technical specifications Continuous Output Power: 30W per channel 8ohms at 1k Hz THD 0.1% 50W per channel 4ohms at 1k Hz THD 0.1% 100W Bridged 8ohms at 1k Hz THD 0.1% 30W per channel 70V/100V at 1k Hz THD 0.1% Total Harmonic Distortion: 0.1% @ 10W... - Page 10 Page:10 Model CA1250...
- Page 11 Model CA1250 Page:11 Block Diagram for CA1250...
- Page 12 This document is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Xantech LLC. Xantech LLC shall not be liable for operational, technical, or editorial errors/omissions made in this document.
