TABLE OF CONTENTS
SectionTitle
SAFETY INSTRUCTIONS - READ BEFORE OPERATING EQUIPMENT.........................................................................................................2
GENERAL INFORMATION .............................................................................................................................................................................3
PA4100X PANEL AND FEATURE DESCRIPTIONS ........................................................................................................................................5
INSTALLATION - PHYSICAL LOCATION AND MOUNTING ............................................................................................................................8
CONNECTING THE PA4100X.........................................................................................................................................................................9
Stereo Mode Connections ...................................................................................................................................... 9
Speaker Phasing.................................................................................................................................................. 10
Connecting the REMOTE MASTER ON/OFF MUTE CONTROL........................................................................... 10
A Multi-Zone System Diagram Using The PA4100X and MRC88 .......................................................................... 12
TROUBLE SHOOTING .................................................................................................................................................................................13
SPECIFICATIONS ........................................................................................................................................................................................14
INSTALLATION INSTRUCTIONS

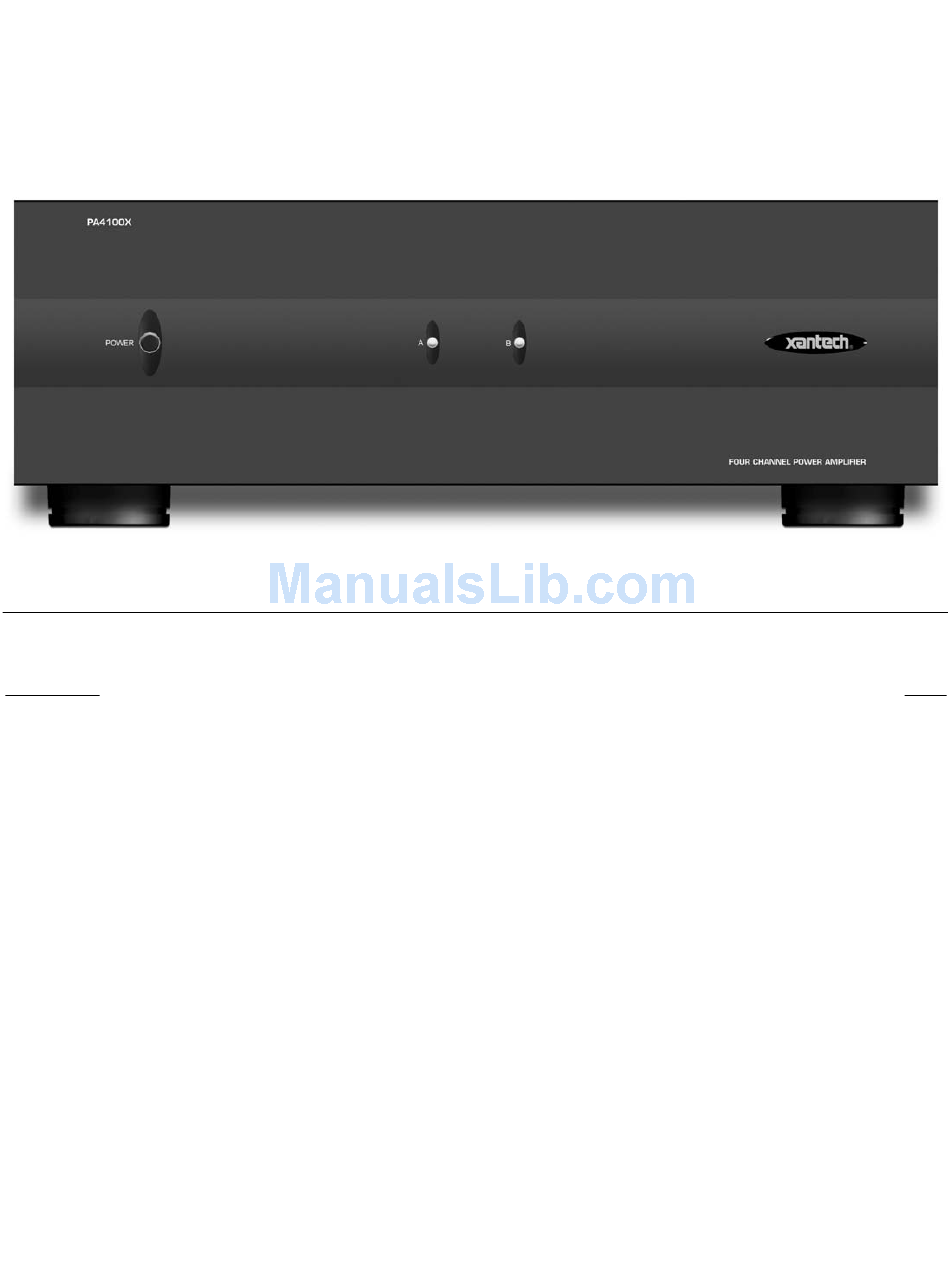

MODEL PA4100X

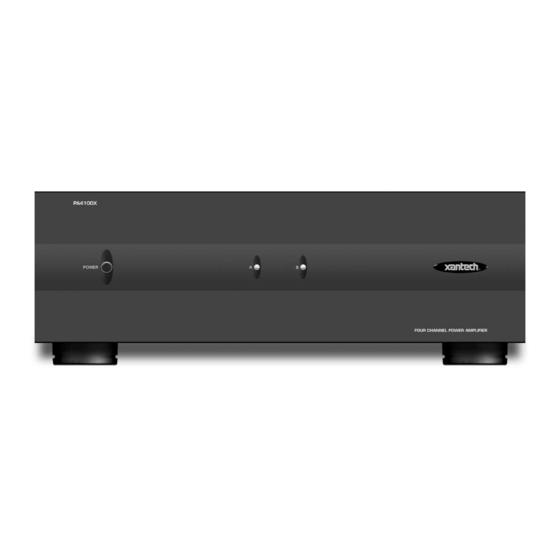

FOUR CHANNEL HI-POWER AMPLIFIER
Page
Advertisement
Table of Contents
Related Manuals for Xantech PA4100X
Summary of Contents for Xantech PA4100X
-
Page 1: Table Of Contents
INSTALLATION - PHYSICAL LOCATION AND MOUNTING ...8 CONNECTING THE PA4100X...9 Stereo Mode Connections ... 9 Speaker Phasing... 10 Connecting the REMOTE MASTER ON/OFF MUTE CONTROL... 10 A Multi-Zone System Diagram Using The PA4100X and MRC88 ... 12 TROUBLE SHOOTING ...13 SPECIFICATIONS ...14 INSTALLATION INSTRUCTIONS MODEL PA4100X... -
Page 2: Safety Instructions - Read Before Operating Equipment
18. Servicing – The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel. DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE CONNECTORS PLUGGED-IN © 2003 Xantech Corporation Model PA4100X... -
Page 3: General Information
-- each with a 100-watt stereo amplifier per zone. Remote ON/OFF Control Jacks (C1 & C2). These 3.5mm Stereo Mini Jacks allow the PA4100X to be powered on and off and muted by a positive DC voltage ranging between 5 and 30 volts (11mA @ 12 V). Specifically, when interfaced with the Control Out jacks of zones 7 &... - Page 4 Page 4 Model PA4100X Auto Protection Circuit. This feature protects the PA4100X if a short or very low impedance is detected at the speaker terminals with each amplifier pair protected separately. Normal operation is restored automatically within 3 to 4 seconds after the short is removed.
-
Page 5: Pa4100X Panel And Feature Descriptions
STANDBY MODE: With the POWER SWITCH left in the IN position (and the CI switch set to ON) the 2 channels of PA4100X may be controlled remotely from the MRC88 via the CI1 and CI2 Control Inputs (or any Voltage Control Signal). When both channels enter STANDBY Mode the front LEDS will turn off leaving the amplifier in a low current sleep mode. - Page 6 6. Line Inputs. These RCA-type jacks are the audio inputs for each of the amplifier pairs. Connect them to the Preamp Output jacks of Zone 7 & 8 of the MRC88 (or other driving preamp output) with good quality RCA-type patch cables. Note that the inputs are marked LEFT-A-RIGHT, LEFT-B-RIGHT signifying the stereo channel pairs.
- Page 7 5 and 30 Volts DC (11mA @ 12 V). When connected to the C01 and C02 jacks from Zones 7 & 8 on the Xantech MRC88, this will allow remote Power ON/OFF control directly from the MRC88 System Controller. This allows the ‘A’ & ’B’ amplifier channel pairs to be individually controlled by Zones 7 &...
-
Page 8: Installation - Physical Location And Mounting
PA4100X of obstructions! When mounting the PA4100X, you should plan its location carefully. Pay close attention to each of the following factors: 1. The amplifier is convection cooled. That is, it depends on the natural free flow of air up through the slot perforations in the bottom plate, over the internal heat dissipating fins, then out the top cover, for adequate cooling. -
Page 9: Connecting The Pa4100X
Be sure to allow enough strain relief for the leads and dress them in such a manner so as not to block airflow. 7. The PA4100X is designed for shelf mounting on flat horizontal surfaces. When mounting into a 19" rack, use an appropriate rack kit. -
Page 10: Speaker Phasing
CONTROL inputs (CI1 & CI2) will allow the power to the PA4100X to be turned ON, OFF, and MUTED by remotely applied DC Voltages. Fig. 7 illustrates how a PA4100X can be switched ON and OFF via the MRC88 Zone 7 & 8 Control Outputs (CO1 and CO2) or other control source. - Page 11 Model PA4100X Page 11 PA435X -- -- -- -- Figure 7: Using the PA4100X REMOTE MASTER ON/OFF CONTROL Terminals © 2003 Xantech Corporation...
-
Page 12: A Multi-Zone System Diagram Using The Pa4100X And Mrc88
PA4100X is powered ON. Similarly, when either Zone is powered down, the associated amplifier pair on the PA4100X is put into STANDBY Mode. When both Zones (7 & 8) are powered down, the PA4100X will either go into STANDBY Mode on both amplifier pairs or will be POWERED OFF depending upon the position of the front panel POWER/STANDBY button (IN = STANDBY;... -
Page 13: Trouble Shooting
Rear panel Power Indicator does not light – no sound. Sound cuts in and out every 3 to 5 seconds. PA4100X does not turn OFF when both REMOTE input voltages go to 0 Volts. The Logo stays illuminated. PA4100X becomes very warm, shuts OFF, but does not come back ON automatically. -
Page 14: Specifications
Input Sensitivity at rated power, stereo mode, input gain Input Impedance Power Source Power Consumption Remote On/Off/Mute CI1 & CI2 Voltage/Current +5 V to +30 VDC (11mA at +12 VDC) Line Fuse Rating Dimensions Weight 100 Watts at 8 Ohms 150 Watts at 8 Ohms &... - Page 15 Model PA4100X Page 15 © 2003 Xantech Corporation...
- Page 16 Page 16 Model PA4100X XANTECH CORPORATION 12950 Bradley Avenue, Sylmar CA 91342-3829 phone 818.362.0353 • fax 818.362.9506 www.xantech.com Part No. 08901195 Rev B 04-03-2003 © 2003 Xantech Corporation...
