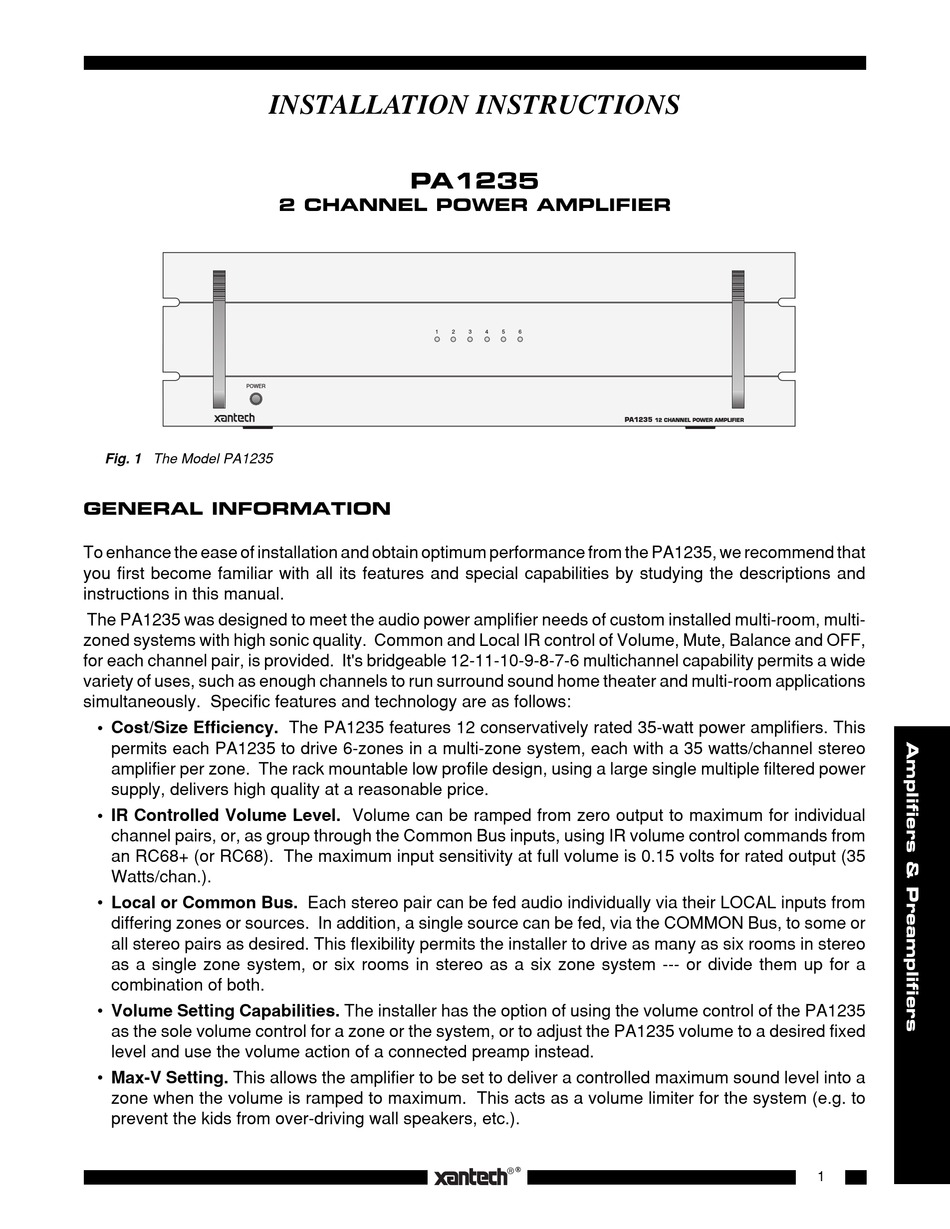

Fig. 1 The Model PA1235
GENERAL INFORMATION
To enhance the ease of installation and obtain optimum performance from the PA1235, we recommend that
you first become familiar with all its features and special capabilities by studying the descriptions and
instructions in this manual.
The PA1235 was designed to meet the audio power amplifier needs of custom installed multi-room, multi-
zoned systems with high sonic quality. Common and Local IR control of Volume, Mute, Balance and OFF,
for each channel pair, is provided. It's bridgeable 12-11-10-9-8-7-6 multichannel capability permits a wide
variety of uses, such as enough channels to run surround sound home theater and multi-room applications
simultaneously. Specific features and technology are as follows:
• Cost/Size Efficiency. The PA1235 features 12 conservatively rated 35-watt power amplifiers. This
permits each PA1235 to drive 6-zones in a multi-zone system, each with a 35 watts/channel stereo
amplifier per zone. The rack mountable low profile design, using a large single multiple filtered power
supply, delivers high quality at a reasonable price.
• IR Controlled Volume Level. Volume can be ramped from zero output to maximum for individual
channel pairs, or, as group through the Common Bus inputs, using IR volume control commands from
an RC68+ (or RC68). The maximum input sensitivity at full volume is 0.15 volts for rated output (35
Watts/chan.).
• Local or Common Bus. Each stereo pair can be fed audio individually via their LOCAL inputs from
differing zones or sources. In addition, a single source can be fed, via the COMMON Bus, to some or
all stereo pairs as desired. This flexibility permits the installer to drive as many as six rooms in stereo
as a single zone system, or six rooms in stereo as a six zone system --- or divide them up for a
combination of both.
• Volume Setting Capabilities. The installer has the option of using the volume control of the PA1235
as the sole volume control for a zone or the system, or to adjust the PA1235 volume to a desired fixed
level and use the volume action of a connected preamp instead.
• Max-V Setting. This allows the amplifier to be set to deliver a controlled maximum sound level into a
zone when the volume is ramped to maximum. This acts as a volume limiter for the system (e.g. to
prevent the kids from over-driving wall speakers, etc.).

INSTALLATION INSTRUCTIONS

PA1235
2 CHANNEL POWER AMPLIFIER
1
2
3
4
5
6

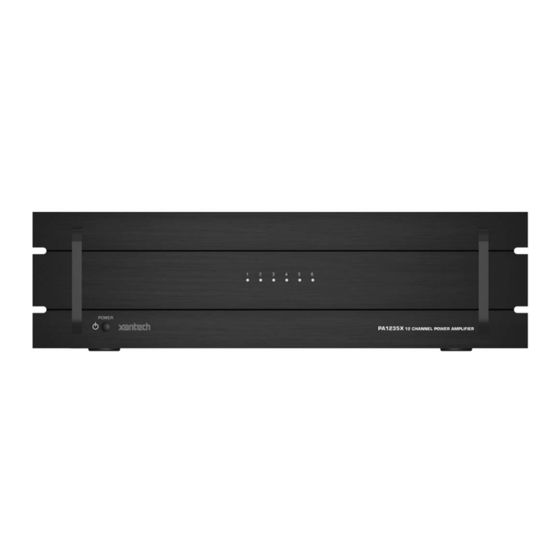

PA1235
®
12 CHANNEL POWER AMPLIFIER
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA1235 and is the answer not in the manual?

Questions and answers

Summary of Contents for Xantech PA1235

  • Page 1: Installation Instructions

    • Volume Setting Capabilities. The installer has the option of using the volume control of the PA1235 as the sole volume control for a zone or the system, or to adjust the PA1235 volume to a desired fixed level and use the volume action of a connected preamp instead.
  • Page 2 Standby of the PA1235 channel pairs (CI) On and Off with zone ON and OFF commands. • Remote Master ON/OFF. Allows the entire PA1235 to be powered ON and OFF by a positive DC voltage ranging between 5 and 30 volts (16mA @ 12V). Specifically, it permits the 12 Volt common CO (Control Output) on the Xantech ZPR68 to power one or more PA1235's ON and OFF automatically with first zone ON and last zone OFF commands.
  • Page 3 NOTE: The PA1235 may also be powered ON/OFF with an external AC line switch into which the power cord of the PA1235 is plugged (such as the switched AC outlet of a preamp, timer, etc.). For this type of operation, leave the POWER switch depressed to the MANUAL ON position.
  • Page 4 +30 VDC is applied to CI for 2 or more seconds. See also item #11) NOTE: The PA1235 will always return to last set values (plus any unaltered factory defaults) after main power shut down or after any power interruptions.
  • Page 5: Rc68+ (Or Rc68) Programmer / Remote Control

    IR Code Group is changed on amplifier pairs you wish to control separately. The STATUS output goes high and low with the AC Power ON/OFF state of the entire PA1235. It does not respond to a Common IR OFF/ON (Standby) condition.
  • Page 6 • Since it includes adjustable code groups, the user may inadvertently alter the installer configurations. • Also, since the user will require IR commands from other brands of equipment to control the total system, in addition to those of the PA1235, all commands should be consolidated into one learning device, for ease of use.
  • Page 7: Installation Physical Location And Mounting

    9. Code Group Numbers. The PA1235 is capable of being set to 55 different code groups, both individually as amplifier pairs and collectively as a group. NOTE: As shipped from the factory, all amplifier pairs in the PA1235 are set to code group number Be sure to set the RC68+ to the same number! It may be necessary to change the PA1235 amplifier pairs to different code groups if you wish to address each pair individually from the COMMON IR BUS (item #15, Fig.
  • Page 8 4. Do not hesitate to use fans (quiet, boxer type), if necessary, to ensure a constant flow of air through the PA1235's and the other heat generating components. 5. When mounting in a 19" (483mm) rack, adding a single RU (Rack Unit) above and below the PA1235 will improve convection in heavy use applications.
  • Page 9 3. Connect one speaker wire pair between the 4-terminal "SPEAKER" connectors on the PA1235 and the speak- ers as shown in Fig. 7. Be sure to use only the two outer terminals marked "+" and "–" on the 4-terminal connector as shown on the panel for BRIDGED con- nections.
  • Page 10: Typical Applications

    IR receivers, three leads are connected between the CB18 and a 789-44 Connecting Block. 6. Since a common IR bus is used to keep costs low, each of the amplifier pairs on the PA1235 must be set to a different IR Code Group number , so that Volume, Mute, Balance and Standby ON/OFF in each room can be adjusted independent of the others.
  • Page 11 SPEAKERS +12V Smart Pad ™ ROOM 1 780-80 "J" Box IR Receiver ROOM 2 Fig. 8 Basic PA1235/RS41 System - Requires Room Dedicated Remotes PA1235 Cassette DecK Satellite Receiver To Video Distribution (if used) RS41AV VIDEO REMOTE SWITCHER CONFIRM ®...
  • Page 12: Connecting The Remote Master On/Off Control Terminals

    A typical system of this type is shown in Fig. 10, where each remote room has a Dedicated IR path going to the PA1235 amplifier pair that controls it. The IR bus is not connected in common as it is in Fig. 8. It eliminates the need for dedicated remotes, allowing you to carry the same remote(s) from room-to- room - that is, remote commands for Volume, Mute, etc., will work in any room from the same remote.
  • Page 13 • Similarly, when the last zone is turned OFF, the CO drops to 0 V, turning the PA1235 totally OFF. NOTE: No IR control of the PA1235 is used in the system shown in Fig. 11. All volume, mute, etc. functions are handled by IR control of the ZPR68-10.
  • Page 14 ZONE 5 ZONE 6 Smart Pad ™ ROOM 1 780-80 "J" Box IR Receiver ROOM 2 Fig. 10 Basic PA1235/RS41/796-20 System - Uses Non-Dedicated Room Remotes Cassette DecK Satellite Receiver To Video Distribution (if used) RS41AV VIDEO REMOTE SWITCHER CONFIRM ®...
  • Page 15: Troubleshooting

    IR receivers can cause poor IR executions. Refer to the troubleshooting sections of the IR receiver and keypad manuals you are using. 7. The PA1235 blew its fuse (item #10, Fig. 3) as power was turned OFF using an adapter driving the REMOTE MASTER ON/OFF CONTROL terminals.
  • Page 16: Specifications

    COMMON AUDIO BUS Inputs ... 70 kOhms 12 chan @ 1/10 rated power ... 360 Watts (3.0/1.5 A) 12 chan @ rated power ... 1090 Watts (9.1/4.6 A) 6 chan Bridged @ 8.5 watts/chan .. 720 Watts (6.0/3.0 A)  ® 3-9-01 Rev.C PA1235...
