All units require a minimum clearance of two 2" (51 mm) between all sides of the
housing and any surface or obstacle. All drop-in units require a minimum clearance of
open space below the unit of 6" (152 mm). The space must have openings allowing
for the flow of cool air (ambient temperature not to exceed 50˚C/122˚F) to the cooktop
housing intake vents. If either the air intake or exhaust outlet is blocked, the internal
temperature will rise, causing an error code to occur (NOTE: The 6" (152 mm) can be
reduced if additional fans and ducting are added to provide forced ventilation).
Apogee Single Burner Cooktop
Models MC1800G, MC2500G, MC3000G, and MC3500G
Exterior Dimensions
Height: 4.98" (126 mm)
Width: 13.85" (351 mm)
Depth: 17.66" (448)
Weight: 17.75 lb. (8.1 kg)
Clearances
Front: 2" (51 mm)
Back: 2" (51 mm)
Sides: 2" (51 mm)
Apogee Single Burner Drop-in
Models MCD1800G, MCD2500G, MCD3000G, and MCD3500G
Exterior Dimensions
Height: 3.63" (92 mm)
Width: 16.16" (410 mm)
Depth: 20.67" (525)
Weight: 23 lb. (10.4 kg)

Cutout Dimensions

Width: 15.30 (388 mm)
Depth: 19.81 (503 mm)
Clearances
Front: 2" (51 mm)
Back: 2" (51 mm)
Sides: 2" (51 mm)
Bottom: 6" (152 mm)

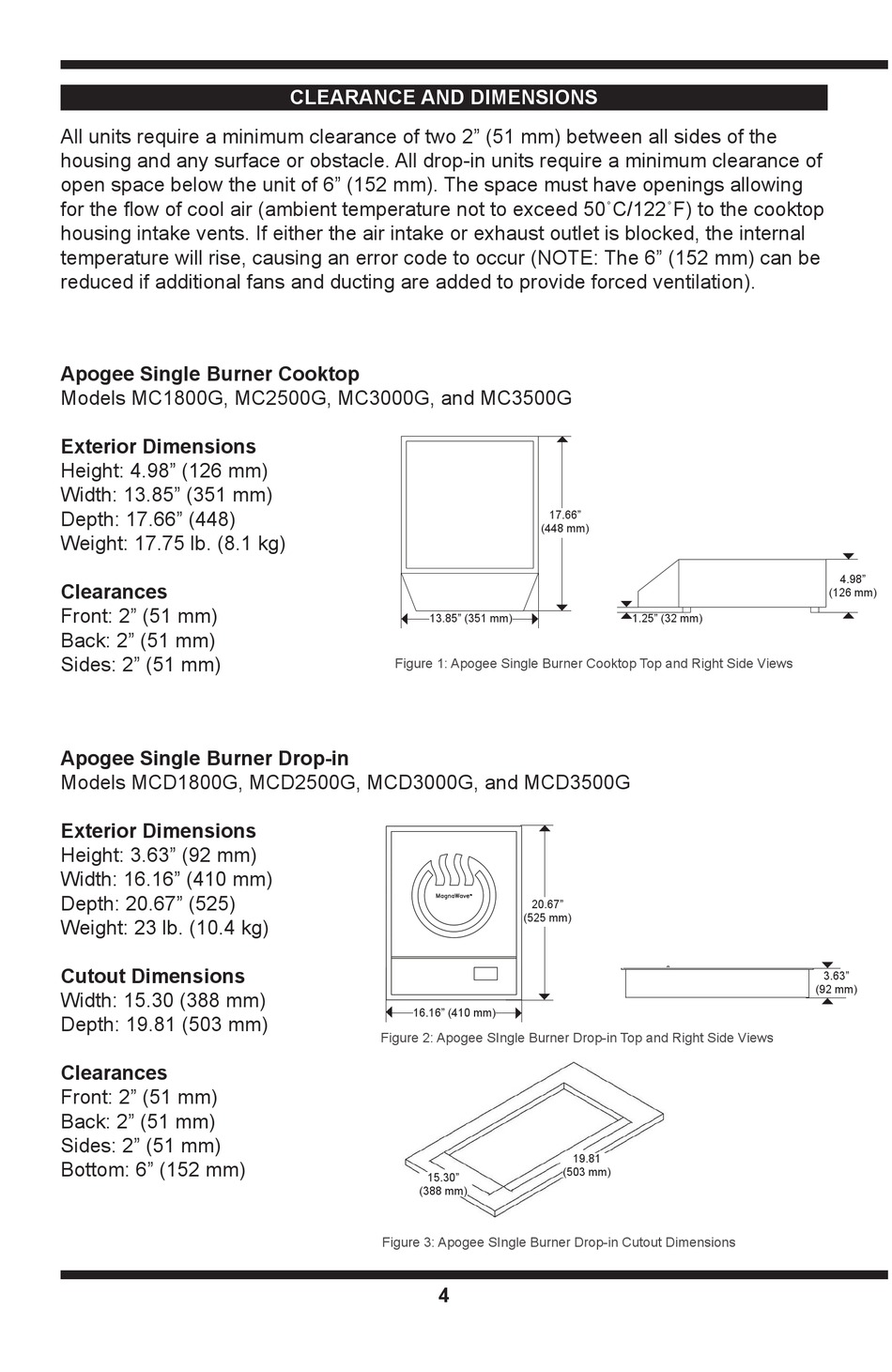

CLEARANCE AND DIMENSIONS

13.85" (351 mm)
13.85" (351 mm)
Figure 1: Apogee Single Burner Cooktop Top and Right Side Views
16.16" (410 mm)
13.85" (351 mm)
Figure 2: Apogee SIngle Burner Drop-in Top and Right Side Views
15.30"
(388 mm)
Figure 3: Apogee SIngle Burner Drop-in Cutout Dimensions
4
17.66"
17.66"
(448 mm)
(448 mm)
1.25" (32 mm)
1.25" (32 mm)
20.67"
17.66"
(525 mm)
(448 mm)
19.81
(503 mm)
4.98"
4.98"
(126 mm) (126 mm)
3.63"
(92 mm)
