Electrical Connection; Clearance And Dimensions - CookTek MC14004-200 Owner's Manual

Wiring Connection:
Black - Phase A
Black - Phase B
NOTE: For proper operation, an independent, dedicated circuit should be used
in all installations.
ALL WIRING MUST BE PERFORMED BY A LICENSED ELECTRICIAN.
Clearance: Be sure to allow for a minimum clearance of 2" (51 mm) between all
sides of the housing and any surface or obstacle, and 6" (152 mm) between the
bottom of the housing and any surface or obstacle. The 4- or 6-hob unit's internal
fans require up to 140CFM (3.9m
ambient temperature of 115
4-Hob Units (MC14004-200, MC14004-400, MC17004-200, MC17004-400)
Exterior Dimensions
Height: 17.2"* (436 mm*)
Width: 25.2" (640 mm)
Depth: 30.4" (772 mm)
Weight: 120 lb. (54.4 kg)
6-Hob Units (MC21006-200, MC21006-400, MC25506-200, MC25506-400)
Exterior Dimensions
Height: 17.2"* (436 mm*)
Width: 36" (914 mm)
Depth: 30.4" (772 mm)
Weight: 175 lb. (79.38 kg)
*Feet are adjustable. Height range is 6-8" (152-203 mm)

ELECTRICAL CONNECTION

Blue - Neutral
Yellow/Green - Ground

CLEARANCE AND DIMENSIONS

/min) free air flow and a maximum (do not exceed)
3
o o
F (46 C).

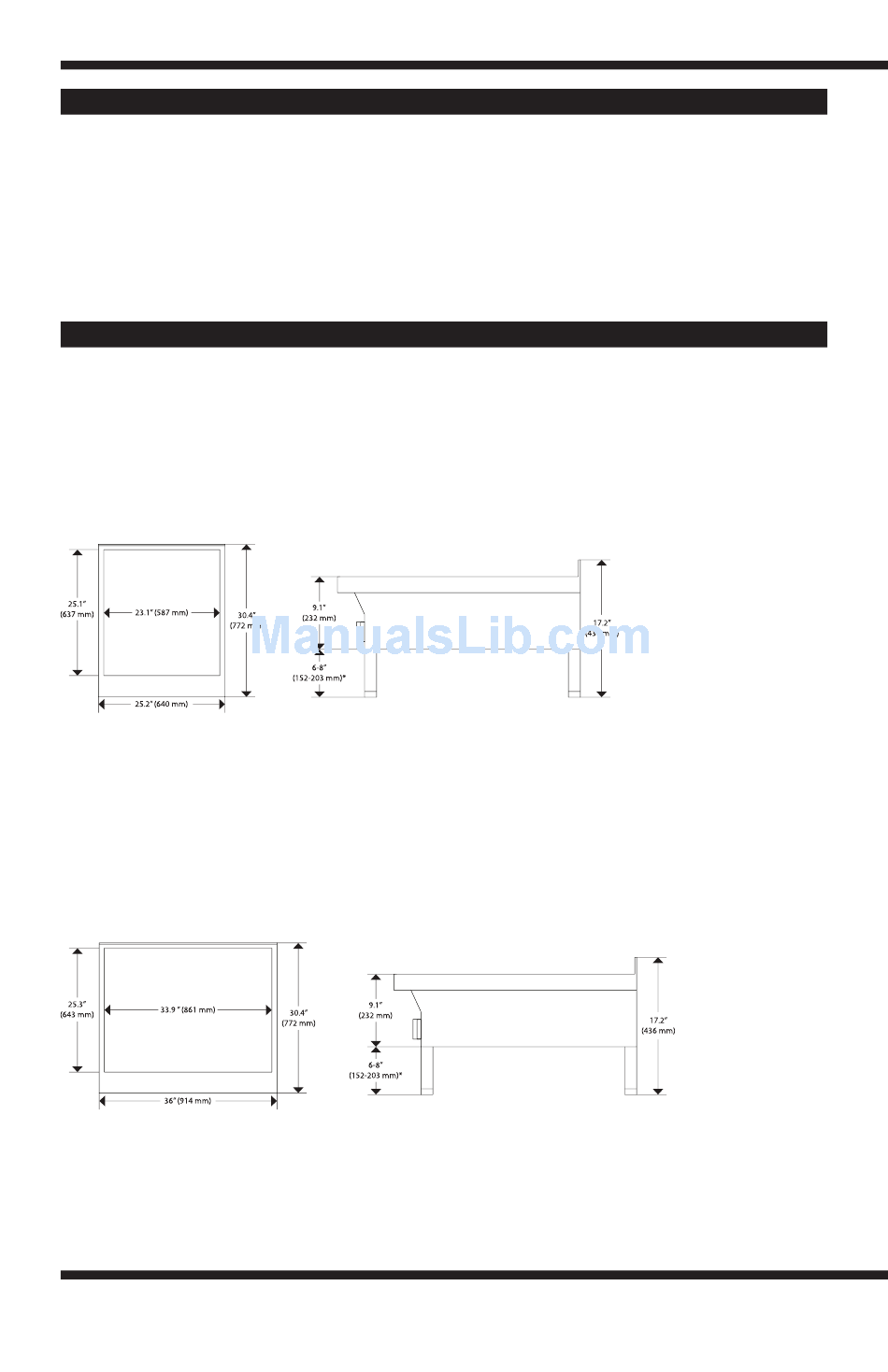

Surface Dimensions
Width: 23.1" (587 mm)
Depth: 25.1" (637 mm)
Surface Dimensions
Width: 33.9" (861 mm)
Depth: 25.3" (643 mm)
Brown - Phase C
Clearances
Front: 2" (51 mm)
Back: 2" (51 mm)
Sides: 2" (51 mm)
Bottom (Housing): 6" (152 mm)
Clearances
Front: 2" (51 mm)
Back: 2" (51 mm)
Sides: 2" (51 mm)
Bottom (Housing): 6" (152 mm)
