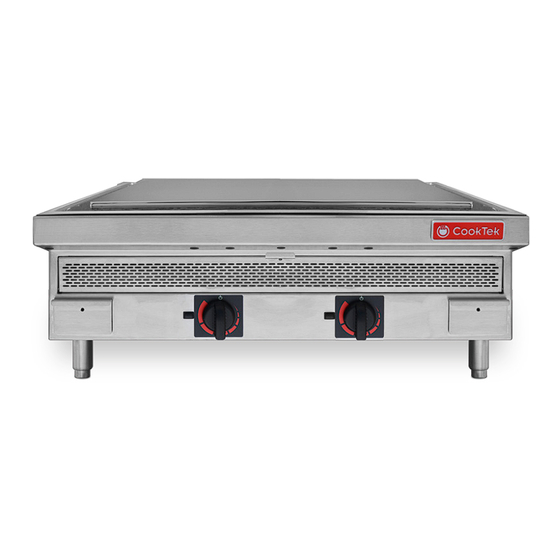

- Page 1 Owner’s Manual f o r t h e co o k t e k 36 ” p l a n c h a 36” PLANCHA MODEL NUMBER PL362CR – 200/230/400 PL362CRG – 200/230/400 PL362CS – 200/230/400 PL362CSG – 200/230/400 CAUTION: Read the instructions before using the equipment. ©2018 TurboChef Technologies, Inc.
- Page 2 For further information, call 800.90 TURBO +1 214.379.6000 Original Instructions The information contained in this manual is important for the proper installation, use, maintenance, and repair of this equipment. Follow these procedures and instructions to help ensure satisfactory results and years of trouble-free service. Errors –...
-
Page 3: Table Of Contents
Table of Contents Important Safety Instructions Important Safety Precautions General Safety Information Grounding Instructions Electrical Installation Requirements Electrical Specifications Installation and Operation Features Dimensions Certifications Installation Operation Care and Cleaning Error Codes Troubleshooting North America Limited Warranty... -
Page 5: Important Safety Instructions
You may then remove the plug from the outlet. DO NOT use the CookTek 36” Plancha for anything other than its intended use as described in this manual. This unit is designed to heat food and is not intended for laboratory or industrial use. -
Page 6: Electrical Installation Requirements
Every installation site has different electrical wiring. Because many different local codes exist, it is the Owner and Installer’s responsibility to comply with those codes. CookTek is not responsible for any consequential damages as a result of failure to comply with installation requirements. -
Page 7: Electrical Specifications
Electrical Specifications 3–Phase UNITED STATES/CANADA PL362CR-200/240–Chrome Top 680101 208/240V, 39A, 14kW, 50/60Hz PL362CRG-200/240–Chrome/Half-grooved Top 680201 208/240V, 39A, 14kW, 50/60Hz PL362CS-200/240–Steel Top 680301 208/240V, 39A, 14kW, 50/60Hz PL362CSG-200–Steel/Half-grooved Top 680401 208/240V, 39A, 14kW, 50/60Hz UK AND SAUDI ARABIA PL362CR-400–Chrome Top 681102 380-415V, 14kW, 20.5A, 50/60Hz... -
Page 8: Installation And Operation
INSTALLATION AND OPERATION 23”(584 mm) 10.65” (271 mm) 30.06” 23” (764 mm) (584 mm) 4” (102 mm) 27”(686 mm) 30” (762 mm) 36” (914 mm) figure 1: 36” Plancha Dimensions features Dimensions • 14,000 watts (7,000 watts per zone) Height: 14.84”... -
Page 9: Certifications
Certifications Operation user Interface The user interface on a CookTek Plancha unit consists of two knobs for adjusting the setting, a 4-digit display for visual verification of the setting, and a button to change between power and temperature control modes. -
Page 10: Care And Cleaning
CARE AND CLEANING Care and Cleaning Plancha Surface Cleaning, End Of Shift 1. Clean the plancha surface often to prevent WARNING: Hot surfaces can cause serious sticking and poor food product quality (see the personal injury. adjacent steps for instructions pertaining to specific cooking surfaces.) Scrape the plancha Plain Steel Cooking Surface plate regularly with a griddle scraper intended... -
Page 11: Error Codes
Error Codes In the event of a possible malfunction, the unit will display an Error Code on the segmented display. Please consult the following table when encountering an Error code. Error Error Description Potential Cause Action Required Broken Temperature Sensor E-01 Service required. -
Page 12: Troubleshooting
TROuBLESHOOTING Troubleshooting The following is a list of issues, along with the possible cause(s), that the unit may be experiencing. Please attempt the recommended resolution before calling Customer Support (800.90TURBO, +1 214.379.6000) or your Authorized Distributor. Issue Possible Cause(s) Resolution No power •... -
Page 13: North America Limited Warranty
“Warranty Claims” below, and providing CookTek with all data and information requested by CookTek or its service agents in connection with such claims as well as all necessary access to your premises and the Equipment. This warranty is made only to the initial purchaser of the Equipment from CookTek or its authorized dealer;... - Page 14 Outstanding Invoices: If the full invoiced amount for Equipment purchased has not been paid within forty-five (45) days from the invoice date, then CookTek will have no obligation to honor this or any other warranty on the Equipment until payment is received in full, including any accrued interest or other charges, has been satisfied, at which time warranty coverage will be reinstated, but the Warranty Period will not be extended.
- Page 15 Equipment warranties. The terms of this warranty may not be altered, amended or modified except by a signed writing from CookTek. Any purported alteration, amendment or modification by a service agent or anyone else will not be enforceable against CookTek.
- Page 16 For service or information: with i n n o rth am e r i c a c al l Customer Support at 800.90 T U R B O ou ts id e n o rth am e r i c a c a l l +1 214.379.6000 or Your Authorized Distributor Global Operations Customer Support...
