Mounting The Switch In A Rack - LevelOne GSW-1657 User Manual

GSW-1657/2457
Gigabit Ehternet Switch User's Guide
Note:
Make sure there is a grounded AC outlet within 1.5 meters, and working
well.
Make sure there is free space for radiating heat and air.
Make sure not to place anything to heavy on top of the switch.

2.2 Mounting the Switch in a Rack

The dimension of GSW-1657/GSW-2457 is designed according to the standard
19 rack-mountable steel case of Electronic Industries Association.
Turn off all the equipment connected to the Switch before mounting it in
the rack, then rivet the two "L" brackets onto each side of the Switch,
fasten it with screws in the rack.

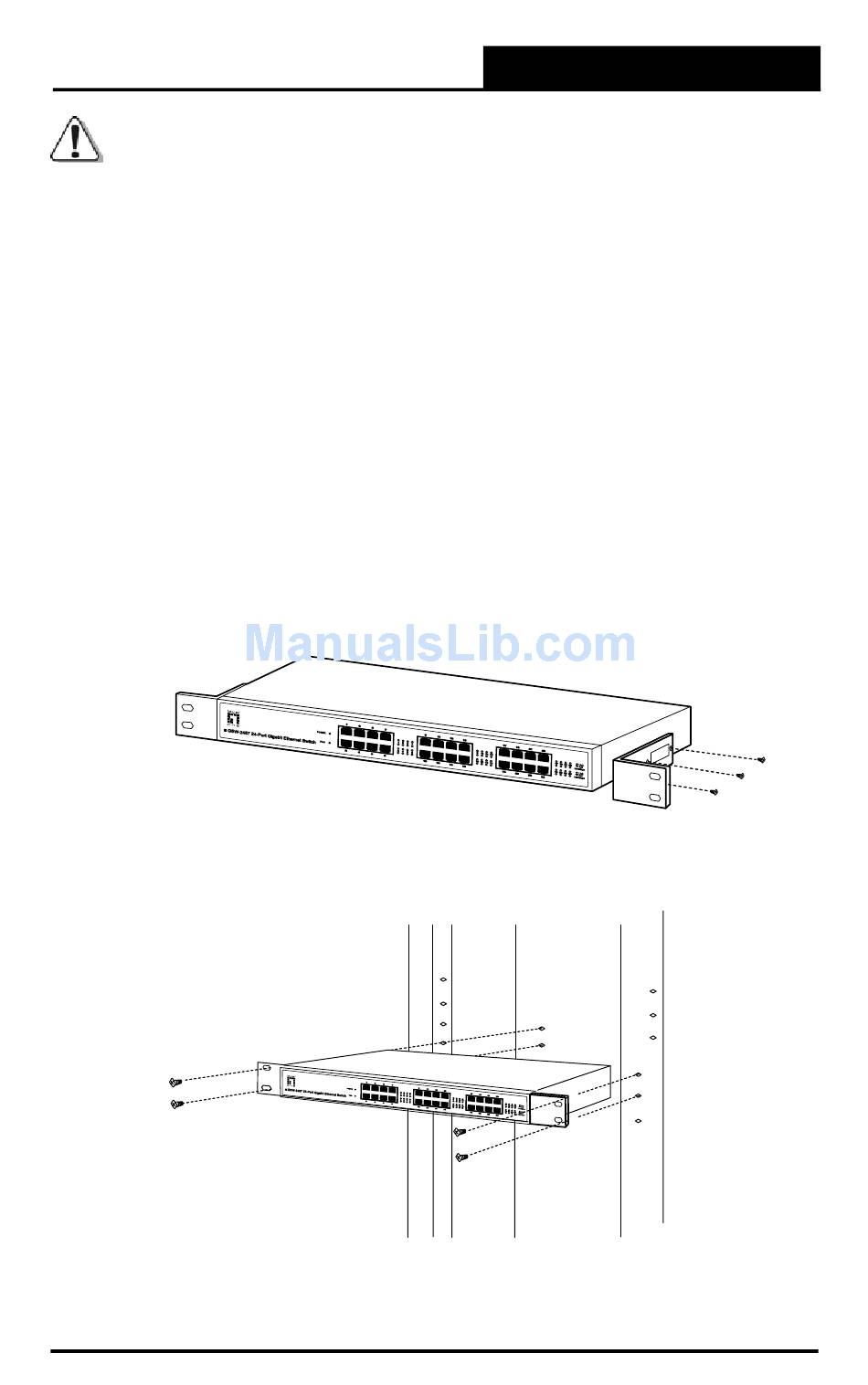

Figure 2-1 Rivet the "L" brackets onto the Switch
Figure 2-2 Fasten the Switch in the rack
