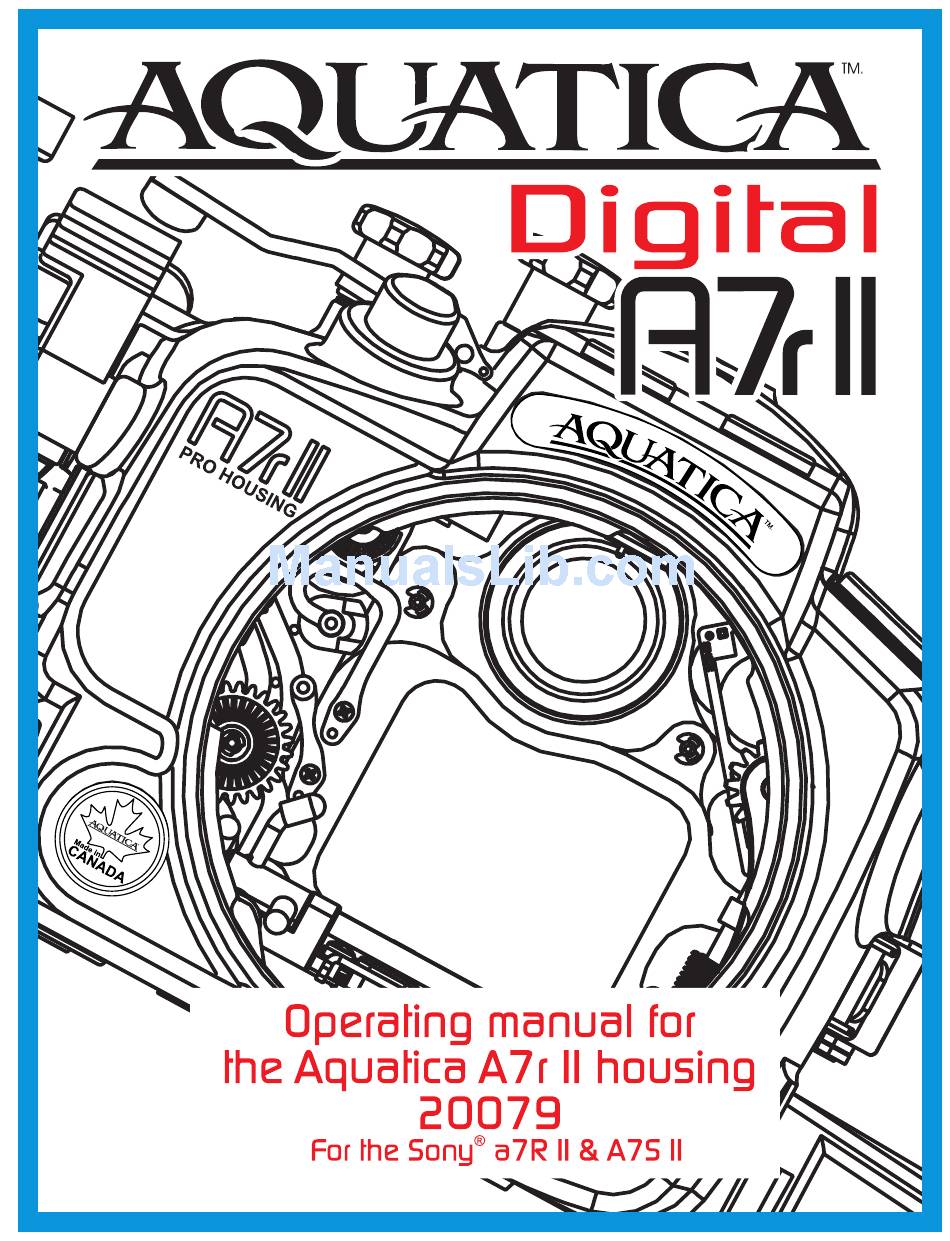

- Page 2 Sony a7R II & a7S II. This operating manual assumes that the Exposure Compensation user is already familiar with the Sony a7R II & a7S II camera and Focus Area Selector its operation. If not, please read your instruction manual before ISO sensitivity quick access attempting to use the housing.
- Page 3 Controls of A7r II housing CAMERA QUICK RELEASE TRAY RETAINING SCREW CAMERA TRAY RELEASE TAB ALIGNEMENT POSTS LENS RELEASE TAB LENS RELEASE ACTUATING LEVER SHUTTER RELEASE LEVER C2 ACCESS LEVER FRONT DIAL ACCESS KNOB REAR DIAL ACCESS KNOB VIDEO RECORD LEVER...
- Page 4 Controls of A7r II housing RIGHT ACCESSORY BULKHEAD ENTRY POINT (0.5”) BOTTOM ACCESSORY BULKHEAD ENTRY POINT (0.5”) C3 ACCESS BUTTON AF/MF & AEL SWITCH LEVER AF/M & AEL ENGAGING BUTTON Fn ACCESS BUTTON MULTI CONTROLLER BUTTON ARRAY CONTROL WHEEL ACCESS KNOB...
- Page 5 HOUSING CONTROLS IN DETAILS 1) CAMERA QUICK RELEASE TRAY: This quick mounting tray 17) FOCUS / ZOOM CONTROL KNOB: Turning allows manual focus allows for precise installation of the camera inside the housing, it of a single focus lens or rotation of the zoom mechanism of a lens. also allows removal of the camera with the lens attached for easy battery replacement.
-
Page 6: Preparation Of The Housing
HOUSING CONTROLS IN DETAILS 34) AF/MF & AEL SWITCH LEVER: Allows switching between 52) RUBBER ANTI SKID PADS: Rubber pads are provided to protect focus modes and AEL function. the housing and preventing it from sliding on wet decks. 35) AF/M & AEL ENGAGING BUTTON: depending on the selected 53) MOISTURE AND VACUUM LED PORT: Gives visual access to mode, pressing this button will allow toggling between auto and the moisture and pressure sensor status LED. -
Page 7: Preparation Of The Ports
PREPARATION OF THE PORTS shown. Lift the camera rear LCD screen up out of the way, care- fully place the camera on the tray, making sure that the camera is Underwater photography typically requires the use of a dome port properly aligned and secured against rotation or movement on the for wide-angle or a flat port for close up and macro photography. - Page 8 FOCUSING MODE Zoom lenses: Mount the gear on the lens zoom ring. The housing Various focusing options are offered on the Sony a7R II and a7S focus/zoom control (key # 17) then becomes the exclusive method II, but the main AF/MF can be accessed by rotating the lever (# of controlling the zoom.
- Page 9 When using large dome port such as the 6”, 8” and 9.25” For user of the 20079-OPT version: Start by selecting the desired optical with an extension, uses of the optional extension ring to cord adapter(s) if needed, and insert in the optical port base(s). port locking collar (# 18469) is recommended, this add another layer of safety by preventing the larger dome port The LED flash trigger included with...
- Page 10 MAINTENANCE OF HOUSING AND PORTS O-RINGS OF THE HOUSING, PORTS AND EXTENSION RINGS: 1. Removing an O-ring: Never use a sharp instrument when removing When changing ports or O-rings, a simple seal test without the an O-ring as this may damage the sealing surface of the groove or camera inside should be performed.
-
Page 11: Warranty
Installation of the valve is straight forward and does not require special tooling, there is a designated entry hole on the rear left hand side (# 30) of the A7r II housing dedicated to this purpose. As is customary with any O-ring replacement, it is always suggested... - Page 12 HOUSING PROTECTIVE CAP Surveyor moisture and vacuum sensor 20054 425ft/130m DEEP RATED SPRING OPTION 19217 INCLUDED INCLUDED 19229-A7r II Available as a factory install Protective Hard Case 19216 * Bulkhead connections 20079 No Bulkhead (video optimized) 20079-NK Double Nikonos connectors 20079-KM One Ikelite 2 pins connector 20079-OPT Dual Optical &...
