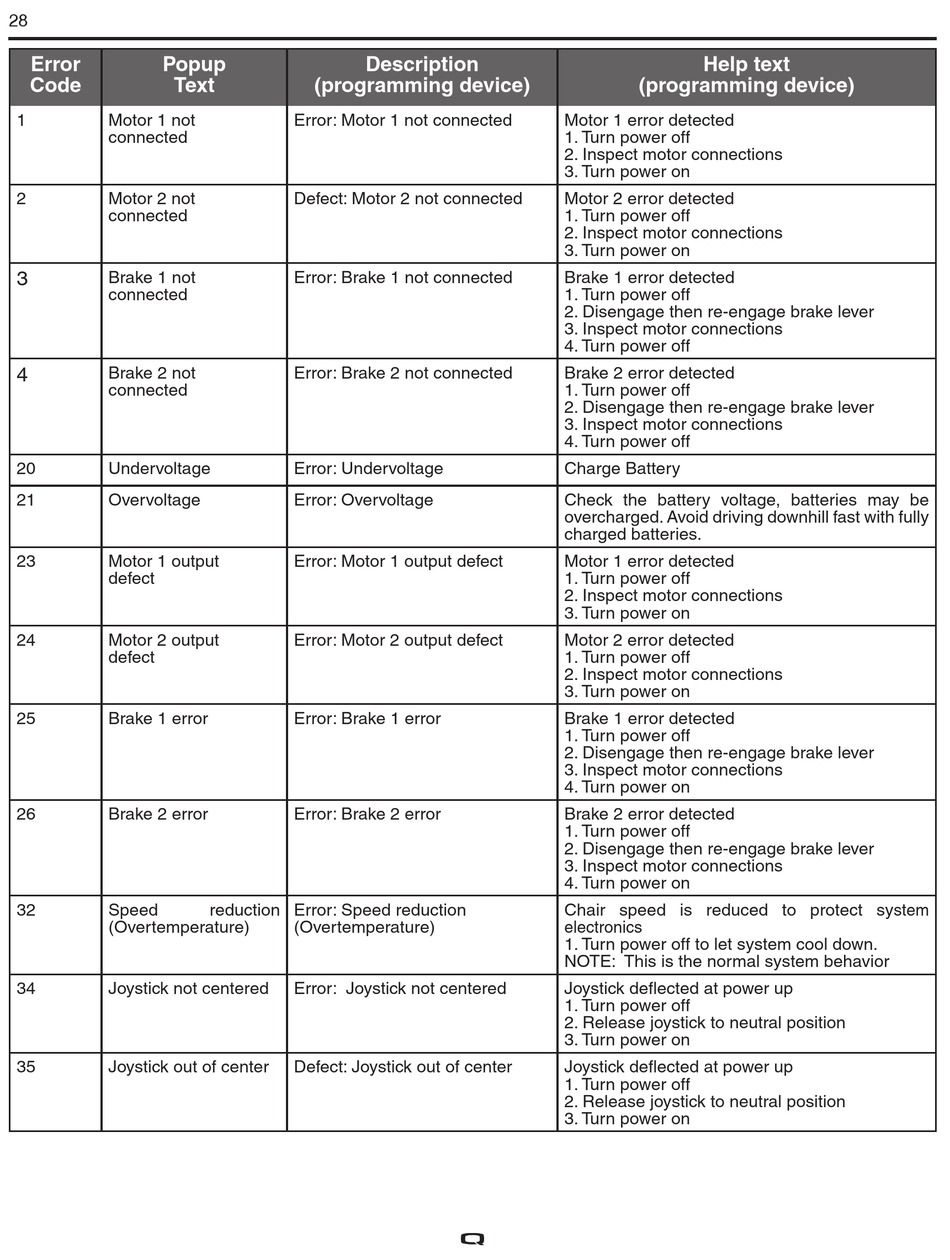

Quantum Q-Logic 3 Basic Operation Instructions page 28


Error Popup
Code Text
1 Motor 1 not
connected
2 Motor 2 not
connected
3 Brake 1 not
connected
4 Brake 2 not
connected
20 Undervoltage
21 Overvoltage
23 Motor 1 output
defect
24 Motor 2 output
defect
25 Brake 1 error
26 Brake 2 error
32 Speed
(Overtemperature)
34 Joystick not centered
35 Joystick out of center
Description
(programming device)
Error: Motor 1 not connected
Defect: Motor 2 not connected
Error: Brake 1 not connected
Error: Brake 2 not connected
Error: Undervoltage
Error: Overvoltage
Error: Motor 1 output defect
Error: Motor 2 output defect
Error: Brake 1 error
Error: Brake 2 error
reduction Error: Speed reduction
(Overtemperature)
Error: Joystick not centered
Defect: Joystick out of center
Help text
(programming device)
Motor 1 error detected
1. Turn power off
2. Inspect motor connections
3. Turn power on
Motor 2 error detected
1. Turn power off
2. Inspect motor connections
3. Turn power on
Brake 1 error detected
1. Turn power off
2. Disengage then re-engage brake lever
3. Inspect motor connections
4. Turn power off
Brake 2 error detected
1. Turn power off
2. Disengage then re-engage brake lever
3. Inspect motor connections
4. Turn power off
Charge Battery
Check the battery voltage, batteries may be
overcharged. Avoid driving downhill fast with fully
charged batteries.
Motor 1 error detected
1. Turn power off
2. Inspect motor connections
3. Turn power on
Motor 2 error detected
1. Turn power off
2. Inspect motor connections
3. Turn power on
Brake 1 error detected
1. Turn power off
2. Disengage then re-engage brake lever
3. Inspect motor connections
4. Turn power on
Brake 2 error detected
1. Turn power off
2. Disengage then re-engage brake lever
3. Inspect motor connections
4. Turn power on
Chair speed is reduced to protect system
electronics
1. Turn power off to let system cool down.
NOTE: This is the normal system behavior
Joystick deflected at power up
1. Turn power off
2. Release joystick to neutral position
3. Turn power on
Joystick deflected at power up
1. Turn power off
2. Release joystick to neutral position
3. Turn power on
