1. Tilt Mode
2. Recline Mode
3. Elevating Seat Mode
1
5

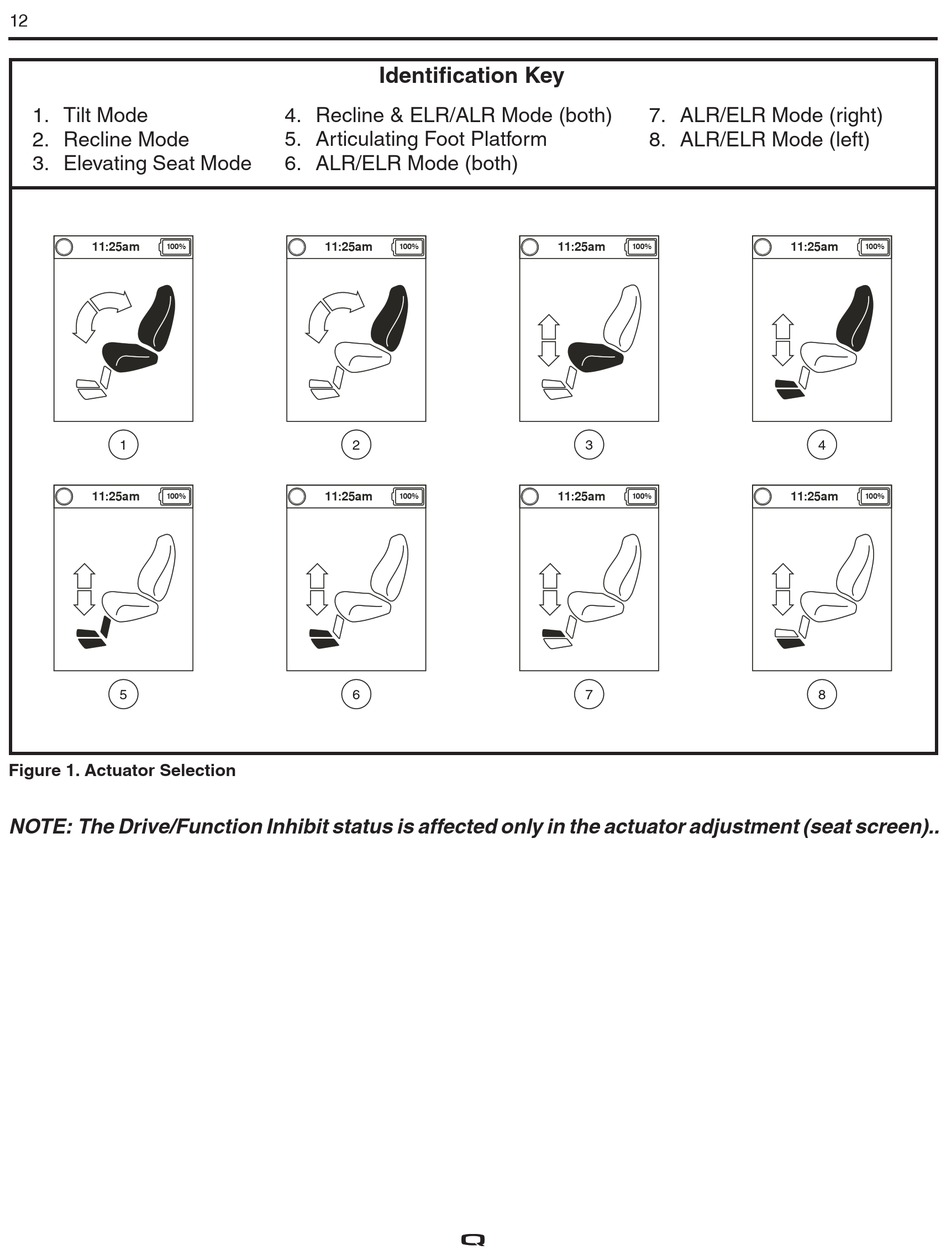

Figure 1. Actuator Selection
NOTE: The Drive/Function Inhibit status is affected only in the actuator adjustment (seat screen)..
Identification Key
4. Recline & ELR/ALR Mode (both)
5. Articulating Foot Platform
6. ALR/ELR Mode (both)
