Key 1 And Key 2 Button; Light Button; Left/Right Turn Indicator Button; Lcd Screen - Quantum Q-Logic 3 Basic Operation Instructions


1
2

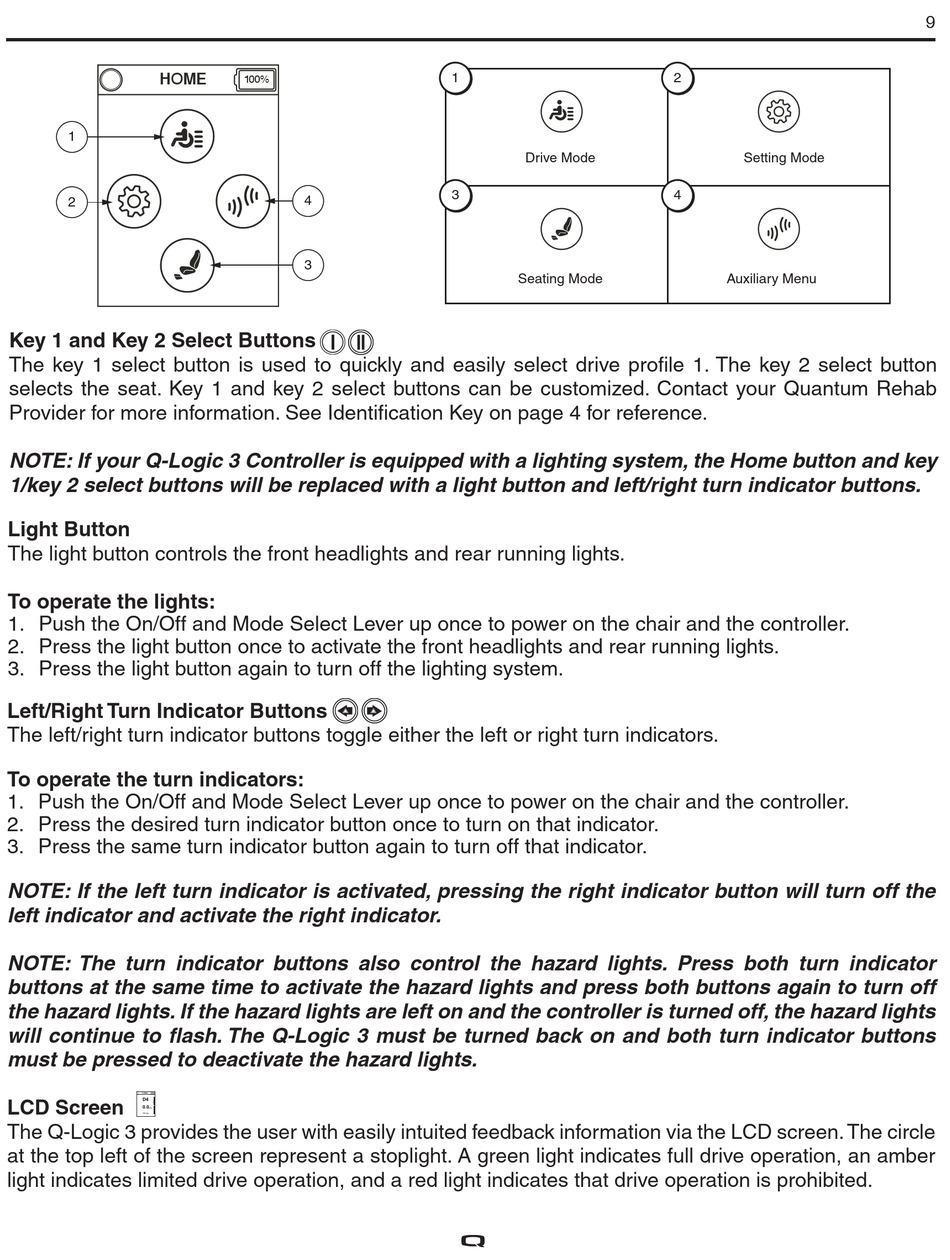

Key 1 and Key 2 Select Buttons
The key 1 select button is used to quickly and easily select drive profile 1. The key 2 select button
selects the seat. Key 1 and key 2 select buttons can be customized. Contact your Quantum Rehab
Provider for more information. See Identification Key on page 4 for reference.
NOTE: If your Q-Logic 3 Controller is equipped with a lighting system, the Home button and key
1/key 2 select buttons will be replaced with a light button and left/right turn indicator buttons.

Light Button

The light button controls the front headlights and rear running lights.
To operate the lights:
1. Push the On/Off and Mode Select Lever up once to power on the chair and the controller.
2. Press the light button once to activate the front headlights and rear running lights.
3. Press the light button again to turn off the lighting system.
Left/Right Turn Indicator Buttons
The left/right turn indicator buttons toggle either the left or right turn indicators.
To operate the turn indicators:
1. Push the On/Off and Mode Select Lever up once to power on the chair and the controller.
2. Press the desired turn indicator button once to turn on that indicator.
3. Press the same turn indicator button again to turn off that indicator.
NOTE: If the left turn indicator is activated, pressing the right indicator button will turn off the
left indicator and activate the right indicator.
NOTE: The turn indicator buttons also control the hazard lights. Press both turn indicator
buttons at the same time to activate the hazard lights and press both buttons again to turn off
the hazard lights. If the hazard lights are left on and the controller is turned off, the hazard lights
will continue to flash. The Q-Logic 3 must be turned back on and both turn indicator buttons
must be pressed to deactivate the hazard lights.

LCD Screen

The Q-Logic 3 provides the user with easily intuited feedback information via the LCD screen. The circle
at the top left of the screen represent a stoplight. A green light indicates full drive operation, an amber
light indicates limited drive operation, and a red light indicates that drive operation is prohibited.

4
3
1
Drive Mode
3
Seating Mode
2
Setting Mode
4
Auxiliary Menu

