Handlebar Set Up - ISLABIKES Rothan Owner's Manual

1. Brake levers
2. Brake pads
3. Saddle
4. Seatpost
5. Seatpost clamp
6. Stem
7. Stem bolts
8. Headset
3
13
12
14 4
5
2
Rothan
9. Headset spacers
10. Headset adjuster bolt
11. Handlebars
12. Rim
13. Spokes
14. Tyres
15. Frame
16. Fork
11
10
9
1
7
6
8
15
16

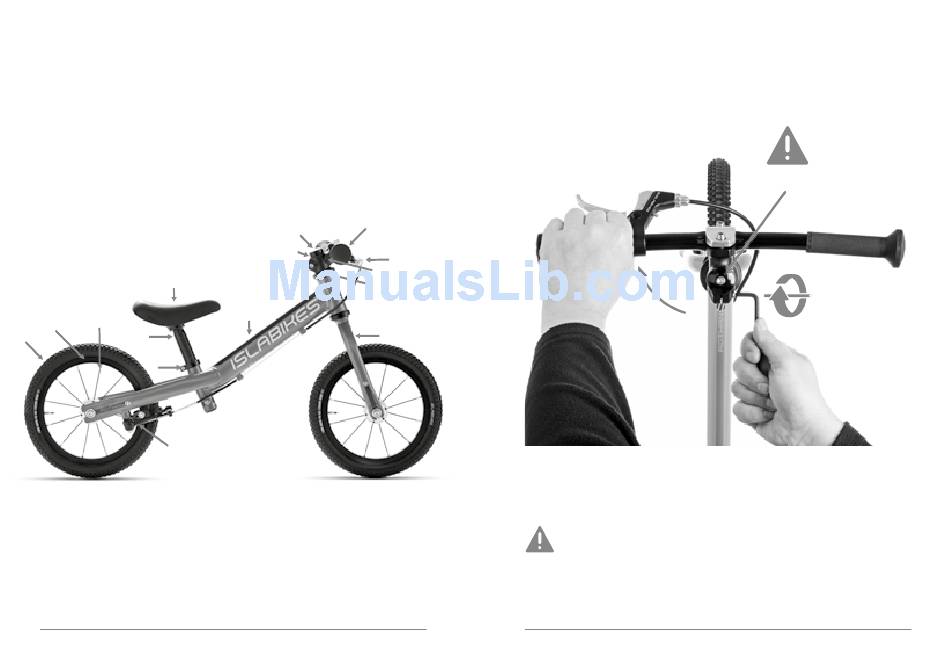

Step 1 of 2

Handlebar set up

Turn
a. Turn handlebars clockwise and align with front wheel
b. Tighten stem clamp bolt max 7Nm
Failure to correctly tighten stem clamp bolt may result
in serious injury or death. If in doubt, please consult our
technical support team on +44 (0)1584 856 881
or email techsupport@islabikes.co.uk.
E-mail: techsupport@islabikes.co.uk
Do Not
Tighten
Tighten
Telephone: +44 (0)1584 856 881
