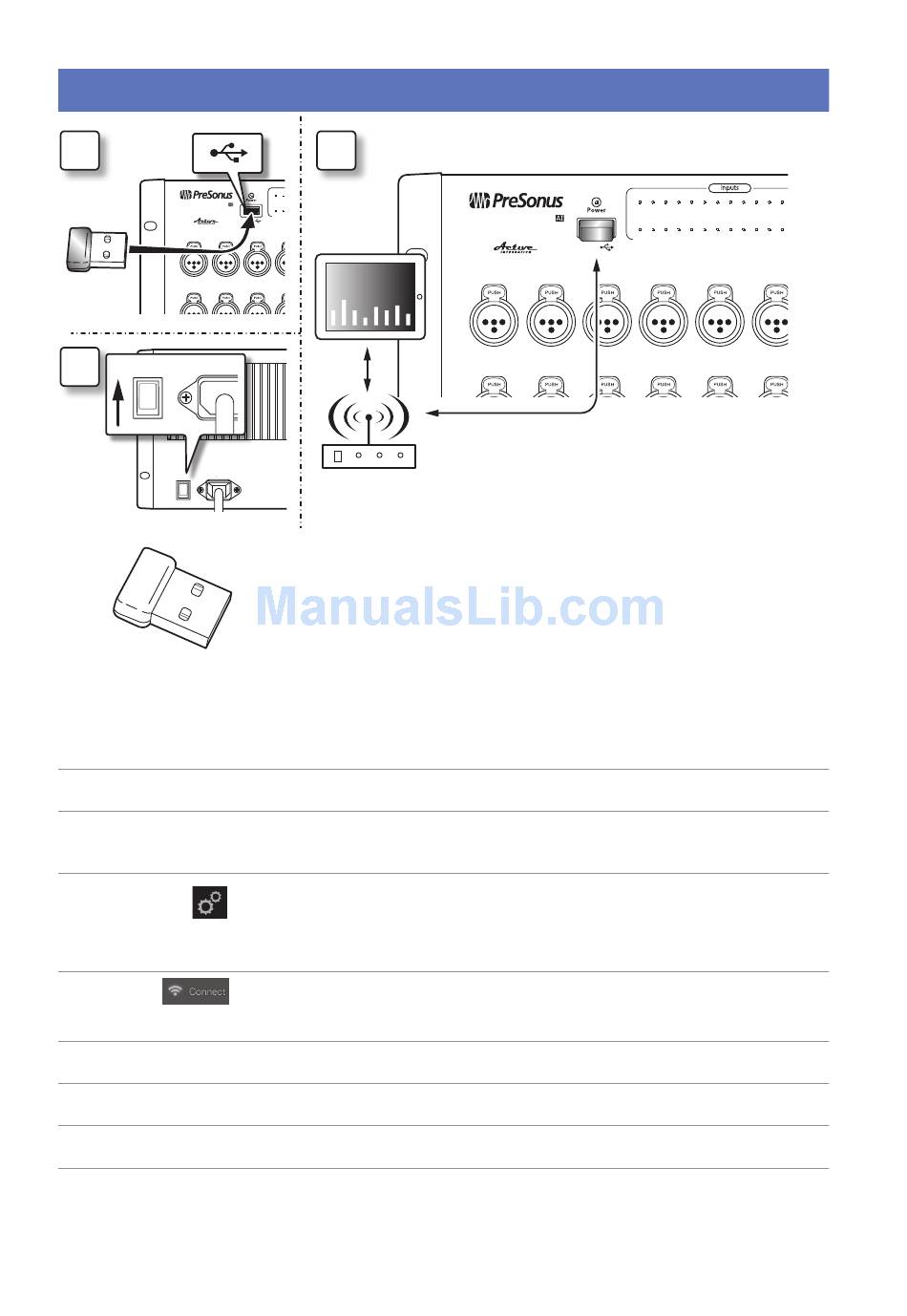

StudioLive AI mixers do not support hot-swapping the Wi-Fi LAN Adapter so you
must have it plugged into the front-panel USB port prior to turning on your mixer.
By default, StudioLive mixers are configured to automatically connect to a wireless
network with the following name and password:
• Wireless network name: StudioLive
• Wireless network password: StudioLive
If you would like to connect to a custom wireless network, you first need to
connect to the mixer with a wired connection and configure the wireless network
preferences.
1.
Connect to a wired control network, as described in Wired Ethernet control setup.
2.
Launch UC-Surface on a Mac or Windows computer or iPad that is connected to
the same network.
3.
Open the Settings page.
4.
At the top of the Settings page select the wireless connection icon.
5.
Choose the wireless network you would like to use from the list shown.
6.
If a password is required you will be prompted to enter it.
7.
You are now configured to connect to the new wireless network for control.
8.
Every time you turn on your StudioLive AI mixer, if there is no wired Ethernet
connection, and the USB Wi-Fi dongle is plugged in, the mixer will look for this
network and attempt to connect to it.
Note: StudioLive AI only supports WPA and WPA2 security. Please be sure that your
router is configured using one of these security protocols.
