Mix Selection Area; Mix Settings - PRESONUS StudioLive RM32AI Visual Quickstart Manual

13.0

Mix Selection Area

13.0 Mix Selection Area

13.1 Mix Settings

1
2
3
4
12

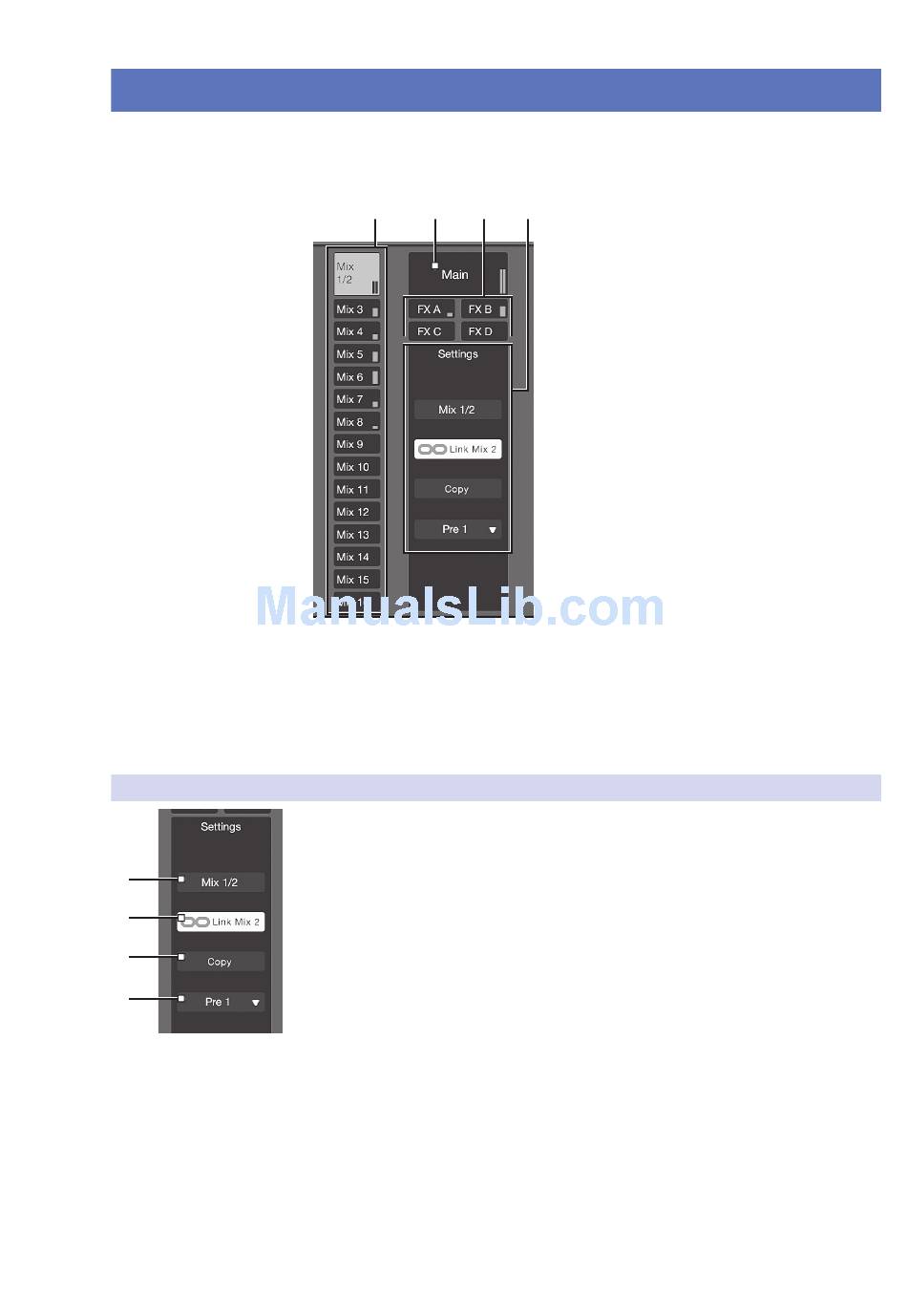

This is the primary navigation area for your mixer. Here you'll select the mix that's
currently being controlled by the channel faders. This is also where you'll find the
settings for each mix.
1 2
1. Mix selection buttons
2. Main Mix Select button
3. FX Mix selection buttons
4. Mix settings and Filter Groups area
1. Mix name. Select to rename.
Stereo Link. Select to link two adjacent mixes for stereo operation.
2.
Copy/Paste. Copies the currently selected mix so you can paste into other mixes.
3.
Mix Position. Selects routing position for the selected mix (Pre 1, Pre 2, Post).
4.
Mix Delay. Adjusts the output delay for the selected mix, if available.
5.
Note: when a delay is assigned to a mix, a delay settings box will be shown in
this area.
PreSonus
3 4
StudioLive RM32AI/RM16AI
® ™
Visual Quick Start Guide
