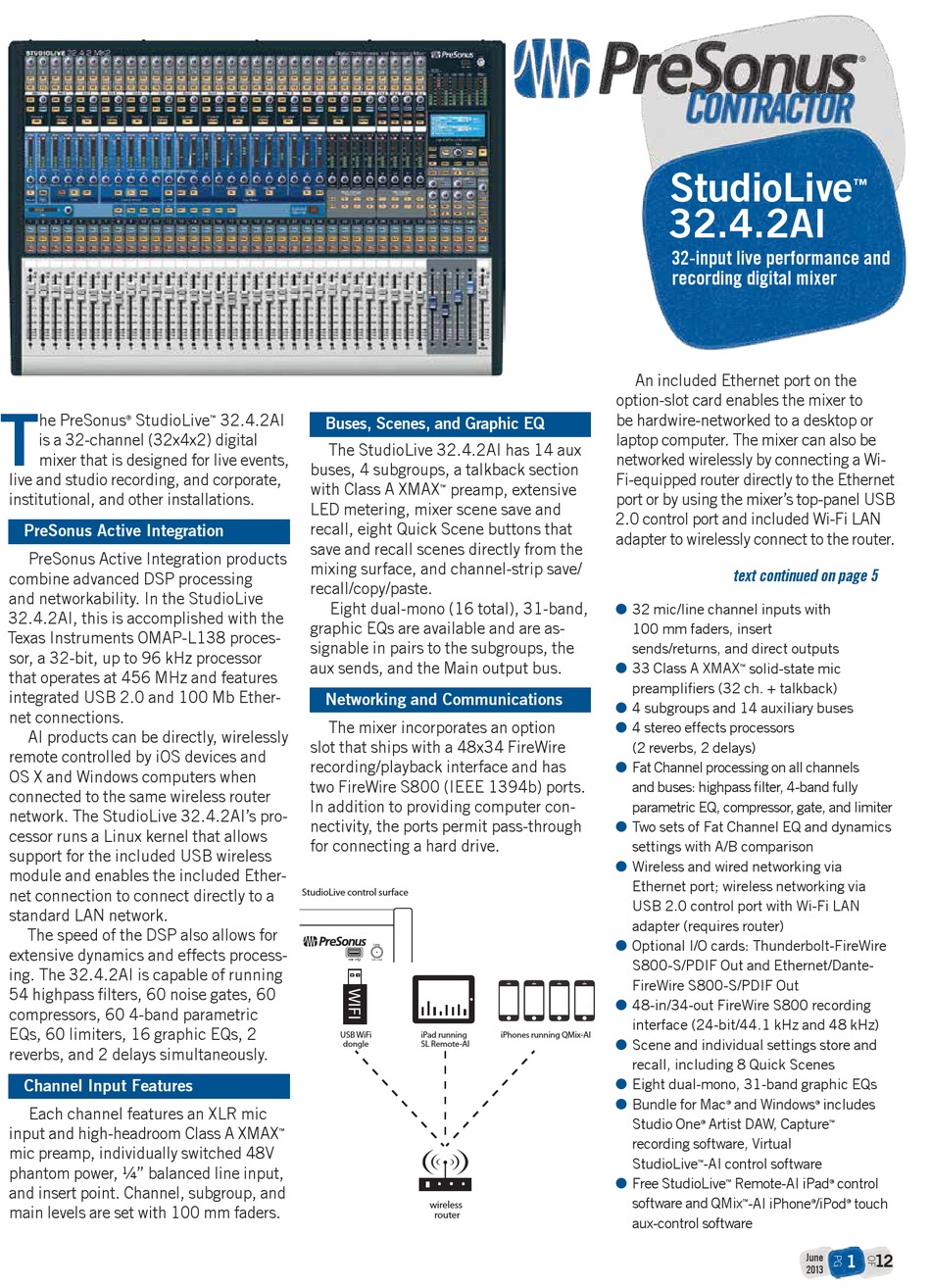

he PreSonus
StudioLive
®
is a 32-channel (32x4x2) digital
mixer that is designed for live events,
live and studio recording, and corporate,
institutional, and other installations.

PreSonus Active Integration

PreSonus Active Integration products
combine advanced DSP processing
and networkability. In the StudioLive
32.4.2AI, this is accomplished with the
Texas Instruments OMAP-L138 proces-
sor, a 32-bit, up to 96 kHz processor
ar amp
bass/d.i.
that operates at 456 MHz and features
integrated USB 2.0 and 100 Mb Ether-
net connections.
AI products can be directly, wirelessly
remote controlled by iOS devices and
OS X and Windows computers when
connected to the same wireless router
network. The StudioLive 32.4.2AI's pro-
cessor runs a Linux kernel that allows
support for the included USB wireless
module and enables the included Ether-
net connection to connect directly to a
standard LAN network.
The speed of the DSP also allows for
extensive dynamics and effects process-
ing. The 32.4.2AI is capable of running
54 highpass filters, 60 noise gates, 60
compressors, 60 4-band parametric
EQs, 60 limiters, 16 graphic EQs, 2
reverbs, and 2 delays simultaneously.

Channel Input Features

Each channel features an XLR mic
input and high-headroom Class A XMAX
mic preamp, individually switched 48V
phantom power, ¼" balanced line input,
and insert point. Channel, subgroup, and
main levels are set with 100 mm faders.
drum monitor
side ll
32.4.2AI

Buses, Scenes, and Graphic EQ

The StudioLive 32.4.2AI has 14 aux
buses, 4 subgroups, a talkback section
with Class A XMAX
LED metering, mixer scene save and
recall, eight Quick Scene buttons that
save and recall scenes directly from the
mixing surface, and channel-strip save/
recall/copy/paste.
Eight dual-mono (16 total), 31-band,
graphic EQs are available and are as-
signable in pairs to the subgroups, the
aux sends, and the Main output bus.
drumkit

Networking and Communications

The mixer incorporates an option
slot that ships with a 48x34 FireWire
recording/playback interface and has
two FireWire S800 (IEEE 1394b) ports.
In addition to providing computer con-
nectivity, the ports permit pass-through
for connecting a hard drive.
StudioLive control surface
USB WiFi
dongle
preamp, extensive
iPad running
iPhones running QMix-AI
SL Remote-AI
wireless
router
StudioLive
32.4.2AI
32-input live performance and
recording digital mixer
An included Ethernet port on the
option-slot card enables the mixer to
be hardwire-networked to a desktop or
laptop computer. The mixer can also be
networked wirelessly by connecting a Wi-
Fi-equipped router directly to the Ethernet
port or by using the mixer's top-panel USB
2.0 control port and included Wi-Fi LAN
adapter to wirelessly connect to the router.
text continued on page 5
32 mic/line channel inputs with
100 mm faders, insert
sends/returns, and direct outputs
33 Class A XMAX
solid-state mic
preamplifiers (32 ch. + talkback)
4 subgroups and 14 auxiliary buses
4 stereo effects processors
● ●
(2 reverbs, 2 delays)
Fat Channel processing on all channels
● ●
and buses: highpass filter, 4-band fully
parametric EQ, compressor, gate, and limiter
Two sets of Fat Channel EQ and dynamics
settings with A/B comparison
Wireless and wired networking via
Ethernet port; wireless networking via
USB 2.0 control port with Wi-Fi LAN
adapter (requires router)
Optional I/O cards: Thunderbolt-FireWire
S800-S/PDIF Out and Ethernet/Dante-
FireWire S800-S/PDIF Out
48-in/34-out FireWire S800 recording
interface (24-bit/44.1 kHz and 48 kHz)
Scene and individual settings store and
recall, including 8 Quick Scenes
Eight dual-mono, 31-band graphic EQs
Bundle for Mac
and Windows
● ●
®
Studio One
Artist DAW, Capture
®
recording software, Virtual
StudioLive
-AI control software
Free StudioLive
Remote-AI iPad
● ●
software and QMix
-AI iPhone
aux-control software
®
includes
®
control
®
/iPod
touch
®
®
12
June
1
2013
