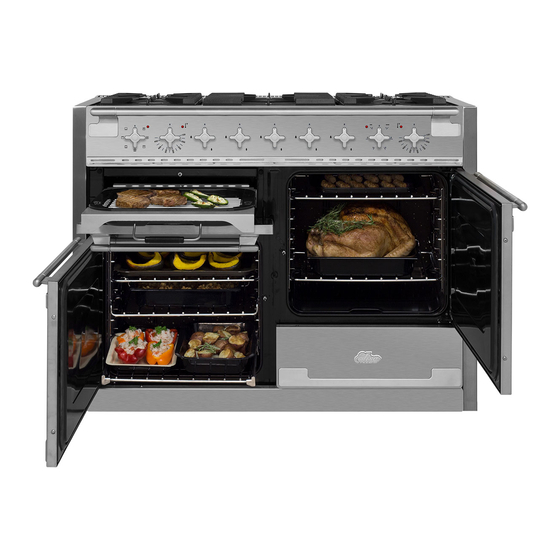

AGA ELISE 48 DUAL FUEL
SERVICE MANUAL
This book contains many important safety messages.
Always read and obey all safety messages.
F200146-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELISE and is the answer not in the manual?

Questions and answers

Related Manuals for AGA ELISE

Summary of Contents for AGA ELISE

  • Page 1 AGA ELISE 48 DUAL FUEL SERVICE MANUAL This book contains many important safety messages. Always read and obey all safety messages. F200146-02...

  • Page 3: Table Of Contents

    Contents Important safety information Servicing Cleaning your range Service and parts Troubleshooting Gas connection Conversion to LP Gas Electrical connection Installation Instructions 10. Installation safety instructions 35 11. Installation 12. Fitting the flue, flue vent and side panels Fitting the cooling fan box Setting the height Fitting the side panel rear retaining brackets...
  • Page 5 WARNING! If the information in these instructions is not followed exactly, a fire or explosion may result, causing property damage, personal injury or death. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. WHAT TO DO IF YOU SMELL GAS DO NOT try to light any appliance.
  • Page 6 The following symbols are related to safety and are used on the product and throughout this manual. Meaning / Description Symbol Meaning / Description Symbol HEAVY WARNING / CAUTION This product is heavy and reference An appropriate safety instruction should be made to the safety should be followed or caution taken if instructions for provisions of lifting a potential hazard exists.

  • Page 7: Important Safety Information

    Important safety information Read all instructions before using this appliance. Save these If the range is installed near a window, proper precautions instructions for future reference. should be taken to prevent curtains from blowing over the burners. Have your appliance properly installed and grounded by NEVER leave any items on the range cooktop.
  • Page 8 Teach them not to play with controls or any other part of the They might catch fire if they touch a hot surface. range. Use dry oven gloves when applicable – using damp gloves NEVER store items of interest to children in the cabinets might result in steam burns when you touch a hot surface.
  • Page 9 Cooktop burners Ovens Use care when opening the door.  Quality of flames Let hot air and steam escape before removing or  On Natural Gas, the burners’ flames should be a blueish color replacing food. with, at most, a slightly yellowish fringe. NEVER heat unopened food containers.
  • Page 10 Take care when touching the range in order to Foods for frying should be as dry as possible. Frost on frozen  minimize the possibility of burns; always be certain foods or moisture on fresh foods can cause hot fat to bubble that the controls are in the OFF position and that it is up and over the sides of the pan.

  • Page 11: Servicing

    SERVICING - WARNING Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Servicing To Remove the Handrai Remove the storage drawer Remove the bottom panel (toe kick) Remove the side panels Removal Facia Assembly Removal of the Gas Hotplate Removal of the Cooling Fan Remove the Wire Covers x 3...

  • Page 12: To Remove The Handrai L

    SERVICING - WARNING Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. To Remove the Handrai Servicing Notes – WARNINGS – GAS a. Locate and loosen the 4 retaining screws – 2 per side When servicing or replacing gas carrying components located on the end of the hand rail.

  • Page 13: Remove The Bottom Panel (Toe Kick)

    SERVICING - WARNING Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Remove the side panels Remove the bottom panel (toe kick) a. Remove the storage drawer (2. Remove the storage a. After removing the drawer open the left-hand oven drawer) door.

  • Page 14: Removal Facia Assembly

    SERVICING - WARNING Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Removal Facia Assembly Removal of the Gas Hotplate Disconnect the appliance from the electricity Supply Disconnect the appliance from the electricity Supply ...

  • Page 15: Remove The Wire Covers X

    SERVICING - WARNING Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. • Gently move the fan assembly away from the b. Remove the Right Hand Rear Cover first, locate and appliance. The electrical connection between remove the (x4) securing screws.

  • Page 16: Remove Oven Thermostats

    SERVICING - WARNING Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Remove Oven Thermostats j. Remove the Oven Fan Baffle Plate (x4) Securing Screws, you now have access to the thermostat Disconnect the appliance from the electricity Supply ...

  • Page 17: Remove The Oven Baffle Plate

    SERVICING - WARNING Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Removing Oven Elements g. The thermostat phial is positioned inside the oven cavity behind the Oven Fan Baffle Plate. Disconnect the appliance from the electricity Supply ...

  • Page 18: Left Hand Oven Elements (Base Element)

    SERVICING - WARNING Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Left Hand Oven Elements (Base Element) h. Re- Assembly: Reassemble in the reverse order, take care to ensure all wires situated on the rear of the a.

  • Page 19: Remove Spark Ignition

    SERVICING - WARNING Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. e. The Switches are accessed as shown in the below illustrations. LH Thermostat Switch Spark Ignition Device LH Multi Function Switch e. Remove the High Tension Leads and any Earth Lead, make a careful note of the location of the earth lead in the generator body.

  • Page 20: Remove A Door Seal

    SERVICING - WARNING Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Adjust a Door g. Re- Assembly: Reassemble in the reverse order, take care to ensure all wires are reconnected in the a. Each door can be adjusted and the process is defined correct order –...

  • Page 21: Remove A Gas Burner Thermocouple

    SERVICING - WARNING Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Remove a Gas Burner Thermocouple g. Check the electrical safety of the appliance by carrying out the appropriate electrical safety Disconnect the appliance from the electricity Supply ...

  • Page 22: Remove A Gas Injector

    SERVICING - WARNING Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Remove a Gas Injector Disconnect the appliance from the electricity Supply  Disconnect from the Gas Supply – Remove any  Safety Chains that may be present. a.

  • Page 23: Cleaning Your Range

    Cleaning your range Essential information Fig. 3.1 Before thorough cleaning, turn off the circuit  breaker. Allow the range to cool. After cleaning remember to switch on the circuit  breaker before using the range. ArtNo.311-0030 - Burner head fitting NEVER use paint solvents, caustic cleaners, ...
  • Page 24 Stainless steel main top Fig. 3.4 Lift away pots or pans from main top. Remove grates from spillage area and carefully place in a sink of warm soapy water. Wipe loose debris from main top. Avoid using any abrasive cleaners including cream cleaners on brushed stainless steel surfaces.
  • Page 25 Glide-out broiler™ Fig. 3.5 Before you remove any of the broiler parts for  cleaning, make sure that they are cool, or use oven gloves. Wash the broiler pan, trivet and broiler tray in hot soapy water. Alternatively, wash the broiler pan in a dishwasher. After broilling meats or any foods that soil, leave to soak for a few minutes in the sink immediately after use.
  • Page 26 Cleaning table Cleaners listed (Table 3.1) are available from supermarkets or on line. For enamelled surfaces use a cleaner that is approved for use on vitreous enamel. Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately. Cooktop Part Finish Recommended Cleaning Method...

  • Page 27: Service And Parts

    If you are still having difficulty, please contact Tech Support at 800.914.4799 or email techsupp@middlebyresidential.com . Please note For warranty information or to register your AGA range, email customersupport@middlebyresidential.com. You may also refer to the warranty document provided with the appliance or contact 888.845.4641 Option 3 .

  • Page 28: Troubleshooting

    Troubleshooting All servicing and repairs must be carried out by a We DO NOT recommend corrosive or caustic   qualified service engineer. cleaners as these may damage your range. Ignition or cooktop burners faulty The knobs get hot when I use the oven, can I avoid this? Is the power on? Yes, this is caused by heat rising from the oven, and heating them up.
  • Page 29 Oven not coming on Fig. 5.1 Is the power on? If not there may be something wrong with the power supply. Is the range supply on at the circuit breaker? Have you set a cooking function? ArtNo.320-0006b -Mercury oven door hinge adjustment Oven temperature getting hotter as the range gets older If turning the knob down has not worked or only worked for a short time then you may need a new thermostat.

  • Page 30: Gas Connection

    INSTALLATION Check the appliance is electrically safe when you have finished. Gas connection Installation of this range must conform with local codes or, in Fig. 6.1 the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1-latest edition. 11 ¼”...
  • Page 31 INSTALLATION Check the appliance is electrically safe when you have finished. Connect the range to the gas supply Fig. 6.3 Shut off the main gas supply valve before disconnecting the Appliance old range and leave it off until the new hookup has been Flexible connector Adaptor gas inlet...
  • Page 32 INSTALLATION Check the appliance is electrically safe when you have finished. When using test pressures greater than ½ psi (3.5 kPa) to pressure test the gas supply system of the residence, disconnect the range and individual shut-off valve from the gas supply piping.

  • Page 33: Conversion To Lp Gas

    INSTALLATION Check the appliance is electrically safe when you have finished. Conversion to LP Gas Important Fig. 7.1 • Observe all governing codes and ordinances. Burner head • The range must be properly grounded. Burner ring • Save these instructions for the local electrical inspector’s Brass Venturi Burner Base use.
  • Page 34 INSTALLATION Check the appliance is electrically safe when you have finished. Save the orifices removed from the appliance for future use. Fig. 7.4 To Install the new orifices; see Table 7.1 for orifice details. Insert the new orifice into the open end of the rubber tube which is attached to the socket wrench.
  • Page 35 INSTALLATION Check the appliance is electrically safe when you have finished. Gas regulator adjustment Fig. 7.6 NOTE: To avoid exterior damage to the storage drawer. Place a soft cushioned mat on the floor. To access the gas regulator remove the storage drawer (see Removing the drawer).
  • Page 36 INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the drawer NOTE: To avoid exterior damage to the storage drawer. Place a soft cushioned mat on the floor. To fit the drawer, refer to Fitting the drawer on page 38. Check the appliance is gas sound.

  • Page 37: Electrical Connection

    INSTALLATION Check the appliance is electrically safe when you have finished. Electrical connection Have your appliance properly installed and grounded by a qualified technician. The installation must conform with local codes or in the absence of local codes in accordance with the National Fuel Gas Code, ANSI Z223.1/NFPA 54 or, in Canada, the Natural Gas and Propane Installation Code, CSA B149.1 and in addition the National Electrical Code NFPA 70 or the...
  • Page 38 INSTALLATION Check the appliance is electrically safe when you have finished. Recommended electrical outlet location Fig. 8.1 When connecting using a NEMA 14-50R receptacle, if possible position it so it can be accessed through the opening at the rear of the drawer cavity (Fig. 8.1). Alternate location within the shaded area in (Fig.

  • Page 39: Installation Instructions

    9. Installation Instructions WARNING! If the information in these instructions is not followed exactly, a fire or explosion may result, causing property damage, personal injury or death. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 40 The following symbols are related to safety and are used on the product and throughout this manual. Meaning / Description Symbol Meaning / Description Symbol HEAVY WARNING / CAUTION This product is heavy and reference An appropriate safety instruction should be made to the safety should be followed or caution taken if instructions for provisions of lifting a potential hazard exists.

  • Page 41: Installation Safety Instructions

    INSTALLATION Check the appliance is electrically safe when you have finished. 10. Installation safety instructions Regulations Improper installation, adjustment, alteration,  service or maintenance can cause injury or property Installation of this range must conform with local  damage. Refer to this manual. For assistance or codes, or in the absence of local codes, with the additional information, consult a qualified engineer.
  • Page 42 INSTALLATION Check the appliance is electrically safe when you have finished. Converting to propane gas This appliance is supplied set for natural gas. A conversion kit for Propane gas is supplied with the range (A060048). The conversion must be performed by a qualified LP gas installer.

  • Page 43: Installation

    INSTALLATION Check the appliance is electrically safe when you have finished. 11. Installation You will need the following equipment to complete the range Additional materials you may need: installation satisfactorily: Gas line shut-off valve. • Multimeter (for electrical checks). Pipe joint sealant or UL-approved pipe thread tape with Teflon* that resists action of natural and LP gases.
  • Page 44 INSTALLATION Check the appliance is electrically safe when you have finished. Positioning the range Fig. 11.1 Fig. 11.1, Fig. 11.2 and Fig. 11.3 show the minimum recommended distance from the range to nearby combustible surfaces (see Table 11.1). We recommend a gap of no more than 3/16” (5 mm) (see Table 11.1) either side of the appliance for moving the range.
  • Page 45 INSTALLATION Check the appliance is electrically safe when you have finished. The depth of the range is 28 " (723 mm) overall (Fig. 11.4). Fig. 11.4 (1177 mm) If the range is near a corner of the kitchen, a clearance of 3 ½” (90 mm) is required to allow the oven doors to open (723 mm) (Fig.

  • Page 46: Fitting The Flue, Flue Vent And Side Panels

    INSTALLATION Check the appliance is electrically safe when you have finished. 12. Fitting the flue, flue vent and side panels Checking the parts: Fitting the flue Flue Flue Vent Remove the four screws from the broiler flue opening (Fig. 12.1). Present the removable flue up to broiler flue opening.

  • Page 47: Fitting The Cooling Fan Box

    INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the cooling fan box Fig. 12.3 Remove the six screws where the cooling fan box will be fixed Fig. 12.3. The shape of the molex plug should match the socket. Gently connect the molex plug to the molex connector socket Fig.

  • Page 48: Fitting The Side Panel Rear Retaining Brackets

    INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the side panel rear Checking the parts: retaining brackets Side panel rear retaining brackets Side panels A052064 - Right-hand A051761 - Right-hand Located at the bottom left and right rear corner of the A052067 - Left-hand A051759 - Left-hand range, remove the two screws (Fig.

  • Page 49: Fitting The Obscuring Trims

    INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the obscuring trims Fig. 12.9 Located near the front on each side of the range there are three screws. Loosen the top and bottom screws (Fig. 12.9). Slide the trim onto the screws and tighten to secure. Fitting the side panels Loosen the screw in the flue vent (Fig.

  • Page 50: Fitting The Front Mounting Brackets

    INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the front mounting Fig. 12.13 brackets Open the right-hand oven door and pull the drawer out to its furthest point. Push the ends of the plastic clips (Fig. 12.13 and Fig. 12.14) to release the catches holding the drawer to the side runners.

  • Page 51: Fitting The Bottom Panel (Toe Kick)

    INSTALLATION Check the appliance is electrically safe when you have finished. Fig. 12.17 Fitting the bottom panel (toe kick) Side panel Toe kick Tilt the bottom of the panel slightly to locate the lower Bottom panel slots onto the washers (Fig. 12.17). Now rotate the panel to fit over the pins (Fig.

  • Page 52: Fitting The Drawer

    INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the drawer Fig. 12.21 To fit the drawer, pull the side rails fully out (Fig. 12.21). Carefully move the drawer back between the rails and rest it on the side rails. At each side, hold the front of the drawer and pull the side rail forward so that the clips click into position, holding the drawer to the side rails (Fig.

  • Page 53: Fitting The Restraint Chain And Anti-Tip Device

    INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the restraint chain and anti- Fig. 12.23 tip device Restraint chain A range using a flexible gas connector must be secured with a suitable restraint chain and anti-tip device. When fitting the restraint chain it should be kept as short as is practicable and fixed firmly to the rigid pipe at the top, right-hand, rear of the range;...

  • Page 54: Final Fitting And Checks

    INSTALLATION Check the appliance is electrically safe when you have finished. 13. Final fitting and checks Fitting the handrail Fig. 13.1 Retaining screw Using the 2 mm Allen key supplied, loosen the two retaining screws in the base and side of the handrail support.

  • Page 55: Circuit Diagram

    14. Circuit diagram P026819 P026819 P029549 P033458 P028728 P033458 Code Description Code Description Code Color Blue Broiler Thermostat Right-hand oven thermostat Brown Broiler Controller Right-hand oven switch block Black Broiler Elements Right-hand oven element Orange Left-hand oven thermostat Right-hand oven fan motor Left-hand oven switch block Ignition switches Violet...

  • Page 59: Technical Data

    15. Technical data INSTALLER: Please leave these instructions with the user. DATA BADGE LOCATION: Inside base drawer of cavity. Remove the drawer (see Overview > Storage for details). COUNTRY OF DESTINATION: USA, Canada, Mexico. Connections ArtNo280-0090 Drawer Cavity & Badges Electric Supply 240 V 60 Hz Electric Rating...
  • Page 60 Technical Reference Data Reference Name Amps Voltage 240(rms) Left Hand Oven Base Element 0.75 3.13 Left Hand Oven Fan Element 10.42 Left Hand Oven Top Outer Element Left Hand Oven Top Oven Inner 1.15 Right Hand Oven Fan Element 10.42 Broiler Element 1.15 Broiler Element...
  • Page 64 By AGA made for : Middleby Residential 4960 Golden Pkwy BLDG 3 Buford, GA 30518 Business 770.932.7282 Fax 770.932.7292 Toll Free Telephone 800.241.9152 www.aga-ranges.com...
