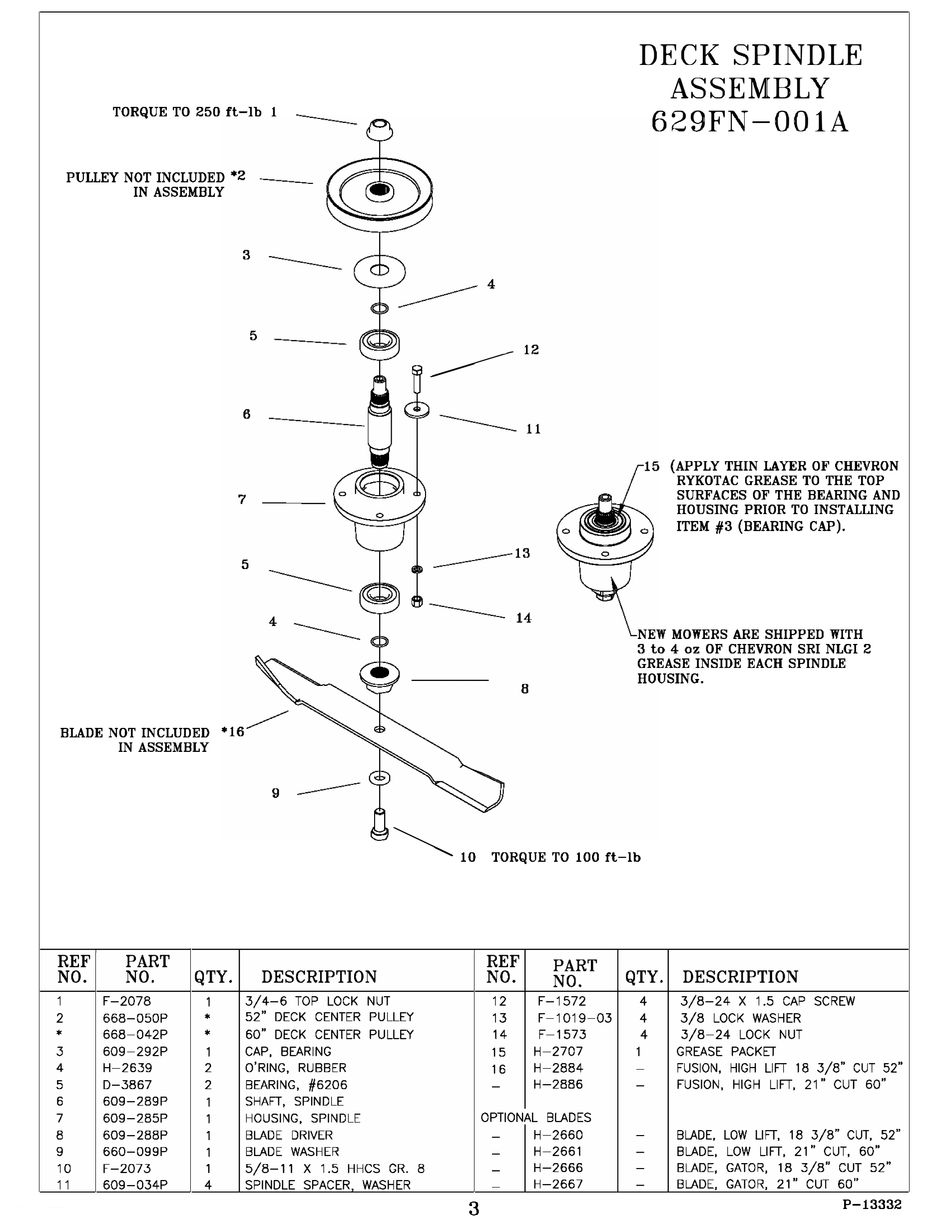

Deck Spindle Assembly - Country Clipper CHARGER 1050 Operator's Manual

TORQUE TO 250 ft-lb 1
PULLEY NOT INCLUDED *2
IN ASSEMBLY
BLADE NOT INCLUDED
IN ASSEMBLY
REF PART
NO. NO.
1 F-2078
2 668-050P
*
668-042P
3 609-292P
4 H - 2639
5 D-3867
6 609-289P
609-285P
7
8 609-288P
9 660-099P
10 F-2073
11 609-034P
HOME
5
6
7
5
QTY.
DESCRIPTION
3/4-6 TOP LOCK NUT
*
52" DECK CENTER PULLEY
*
60" DECK CENTER PULLEY
CAP, BEARING
2 O'RING, RUBBER
2 BEARING, #6206
SHAFT, SPINDLE
HOUSING, SPINDLE
BLADE DRIVER
BLADE WASHER
1 5/8-11 X 1.5 HHCS GR. 8
4 SPINDLE SPACER WASHER
-------- 12
8
� 10 TORQUE TO 100 ft-lb
REF
PART
NO.
NO.
12 F-1572
13 F-1019-03
14 F-1573
15 H-2707
16 H-2884
H-2886
OPTIONAL BLADES
H-2660
H-2661
H-2666
H-2667
3
DECK SPINDLE
ASSEMBLY
629FN-001A
(APPLY THIN LAYER OF CHEVRON
RYKOTAC GREASE TO THE TOP
SURFACES OF THE BEARING AND
HOUSING PRIOR TO INSTALLING
ITEM #3 (BEARING CAP).
NEW MOWERS ARE SHIPPED WITH
3 to 4 oz OF CHEVRON SRI NLGI 2
GREASE INSIDE EACH SPINDLE
HOUSING.
QTY.
DESCRIPTION
4 3/8-24 X 1.5 CAP SCREW
4 3/8 LOCK WASHER
4 3/8-24 LOCK NUT
1 GREASE PACKET
FUSION, HIGH LIFT 18 3/8" CUT 52"
FUSION, HIGH LIFT, 21" CUT 60"
BL.ADE, LOW LIFT, 18 3/8" CUT, 52"
BLADE, LOW LIFT, 21" CUT, 60"
BLADE, GATOR, 18 3/8" CUT 52"
BLADE, GATOR, 21" CUT 60"
P-13332
