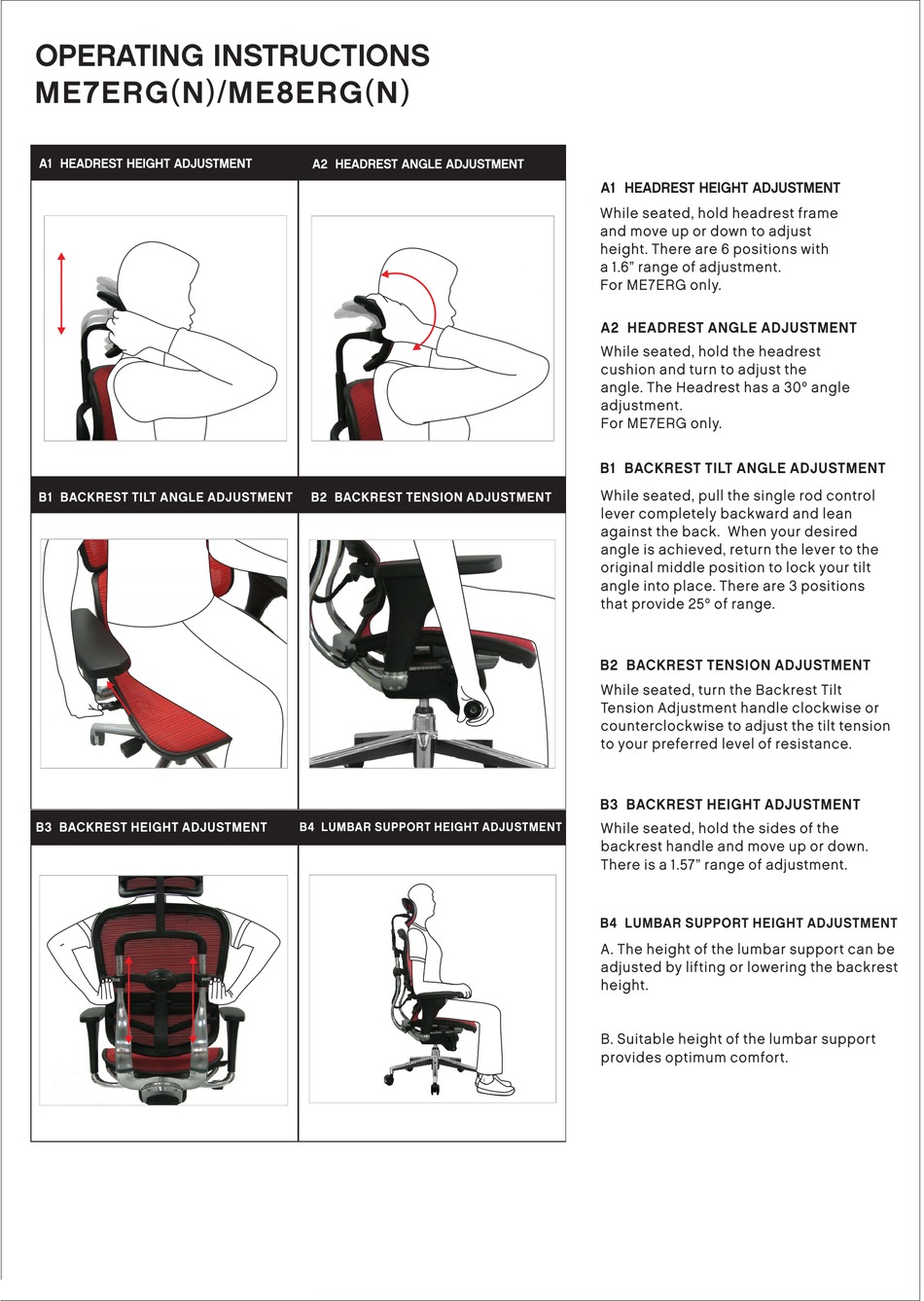

OPERATING INSTRUCTIONS

CHAIR NAME AND SKU OR MODEL NUMBER
ME7ERG(N)/ME8ERG(N)
A1 HEADREST HEIGHT ADJUSTMENT
B1 BACKREST TILT ANGLE ADJUSTMENT
B3 BACKREST HEIGHT ADJUSTMENT
A2 HEADREST ANGLE ADJUSTMENT
B2 BACKREST TENSION ADJUSTMENT
B4 LUMBAR SUPPORT HEIGHT ADJUSTMENT
A1 HEADREST HEIGHT ADJUSTMENT
While seated, hold headrest frame
and move up or down to adjust
height. There are 6 positions with
a 1.6" range of adjustment.
For ME7ERG only.
A2 HEADREST ANGLE ADJUSTMENT
While seated, hold the headrest
cushion and turn to adjust the
angle. The Headrest has a 30º angle
adjustment.
For ME7ERG only.
B1 BACKREST TILT ANGLE ADJUSTMENT
While seated, pull the single rod control
lever completely backward and lean
against the back. When your desired
angle is achieved, return the lever to the
original middle position to lock your tilt
angle into place. There are 3 positions
that provide 25º of range.
B2 BACKREST TENSION ADJUSTMENT
While seated, turn the Backrest Tilt
Tension Adjustment handle clockwise or
counterclockwise to adjust the tilt tension
to your preferred level of resistance.
B3 BACKREST HEIGHT ADJUSTMENT
While seated, hold the sides of the
backrest handle and move up or down.
There is a 1.57" range of adjustment.
B4 LUMBAR SUPPORT HEIGHT ADJUSTMENT
A. The height of the lumbar support can be
adjusted by lifting or lowering the backrest
height.
B. Suitable height of the lumbar support
provides optimum comfort.
