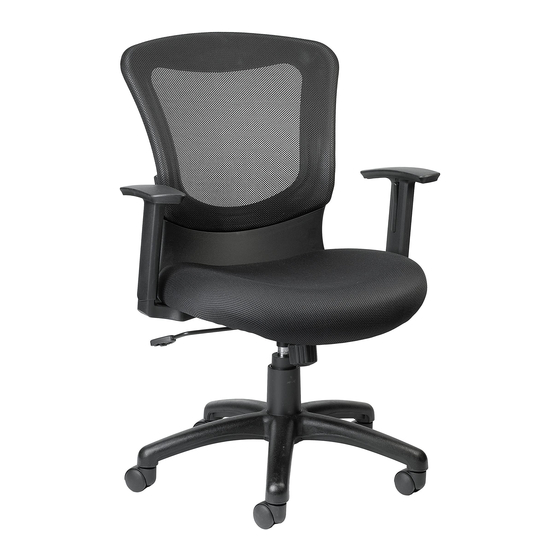

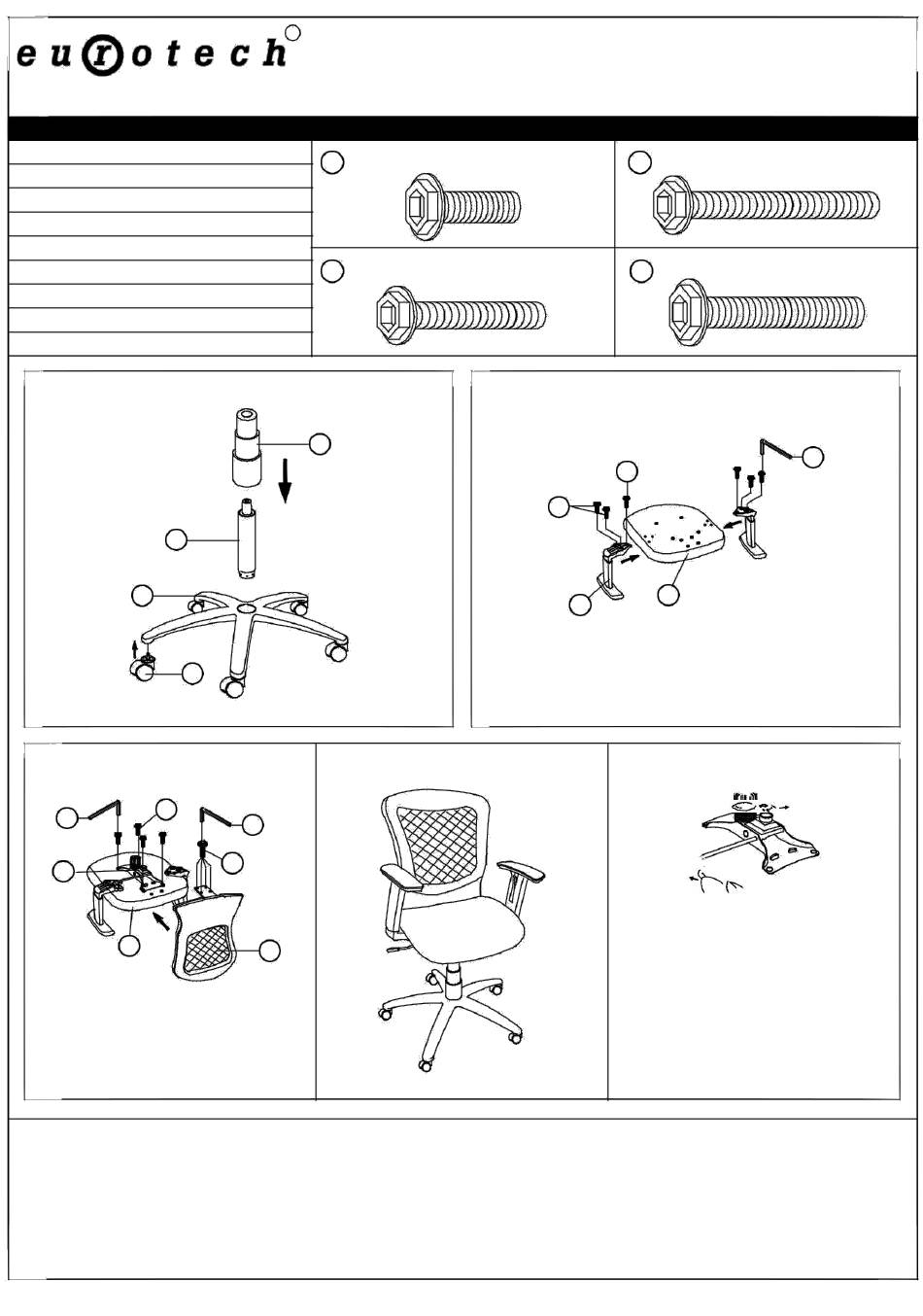

Eurotech Marlin MT7500 Assembly Instruction

PART LIST

1 5 Caster
2 1 Base
3 1 Gas Lift
4 1 Telescopic Cover
5 1 Mechanism
6 1 Seat Cushion
7 1 Back Cushion
8 2 Armrest
13 1 Allen Wrench

STEP 1:

3
2
1

STEP 3:

9
13
5
6

NOTICE:

FOR EASY ASSEMBLY, FIRST
ATTACH ALL SCREWS BY HAND;
THEN USE THE ALLEN WRENCH
TO TIGHTEN ALL SCREWS.
· USE THIS PRODUCT ONLY FOR SEATING ONE PERSON AT A TIME.
· DO NOT USE THIS CHAIR AS A STEP STOOL/LADDER.
· DO NOT SIT ON ANY PART OF THE CHAIR EXCEPT THE SEAT.
· DO NOT USE CHAIR ON UNEVEN FLOOR SURFACES.
· DO NOT USE CHAIR UNLESS ALL BOLTS, SCREWS AND KNOBS
ARE TIGHT.
· AT LEAST EVERY SIX MONTHS, CHECK ALL BOLTS, SCREWS
AND KNOBS TO BE SURE THEY ARE TIGHT.
ASSEMBLY INSTRUCTION
R
Remove all items from the carton.Verify all pieces before assembly
9 4
10 2
4

STEP 4:

13
12
7

PREVENTIVE MAINTENANCE AND WARNING!

Mechanism Screws
(5/16"x3/4")
Shown Actual Size
Armrest Screws
(1/4"x1-1/4")
Shown Actual Size

STEP 2:

10
11
8
NOTICE:
THERE ARE TWO DIFFERENT SCREW SIZES TO
ATTACH THE ARM. USE SCREW (10) FOR INNER
HOLES; USE SCREW (11) FOR OUTER HOLES.

MECHANISM OPERATION

INSTRUCTION WHILE SEATED:
(A) SEAT HEIGHT ADJUSTMENT:
Pull lever up. Release lever when
desired position is reached.
(A)
Pull lever outward to allow backward tilt; Push
lever inward to lock back in vertical position.
(B) TILT TENSION ADJUSTMENT KNOB:
Rotate knob clockwise/counterclockwise to
adjust tilt tension based on body weight.
· IF ANY PARTS ARE MISSING, BROKEN, DAMAGED OR WORN,
STOP USE OF THE PRODUCT UNTIL REPAIRS ARE MADE USING
FACTORY AUTHORIZED PARTS.
· DISPOSE OF PACKAGING PROPERLY, PLASTIC BAG IS NOT A TOY. DO NOT
USE PLASTIC BAG AS HEAD COVERING. IT MAY CAUSE SUFFOCATION.
· FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN
SERIOUS INJURY.
Armrest Screws
11 4
(1/4"x1-3/4")
Shown Actual Size
Bracket Screws
12 4
(5/16"x1-1/2")
Shown Actual Size
13
6
B
A
BACK TILT ADJUSTMENT:
