PLug anD fitting sizes
anD toRques
Series 45 G Frame Open Circuit Axial Piston Pumps
Service Manual
Minor repair
If any plugs or fittings are removed from the unit during service, install and torque as
indicated here.This drawing is a composite.Your configuration may differ but here is the
appropriate wrench size and torque:

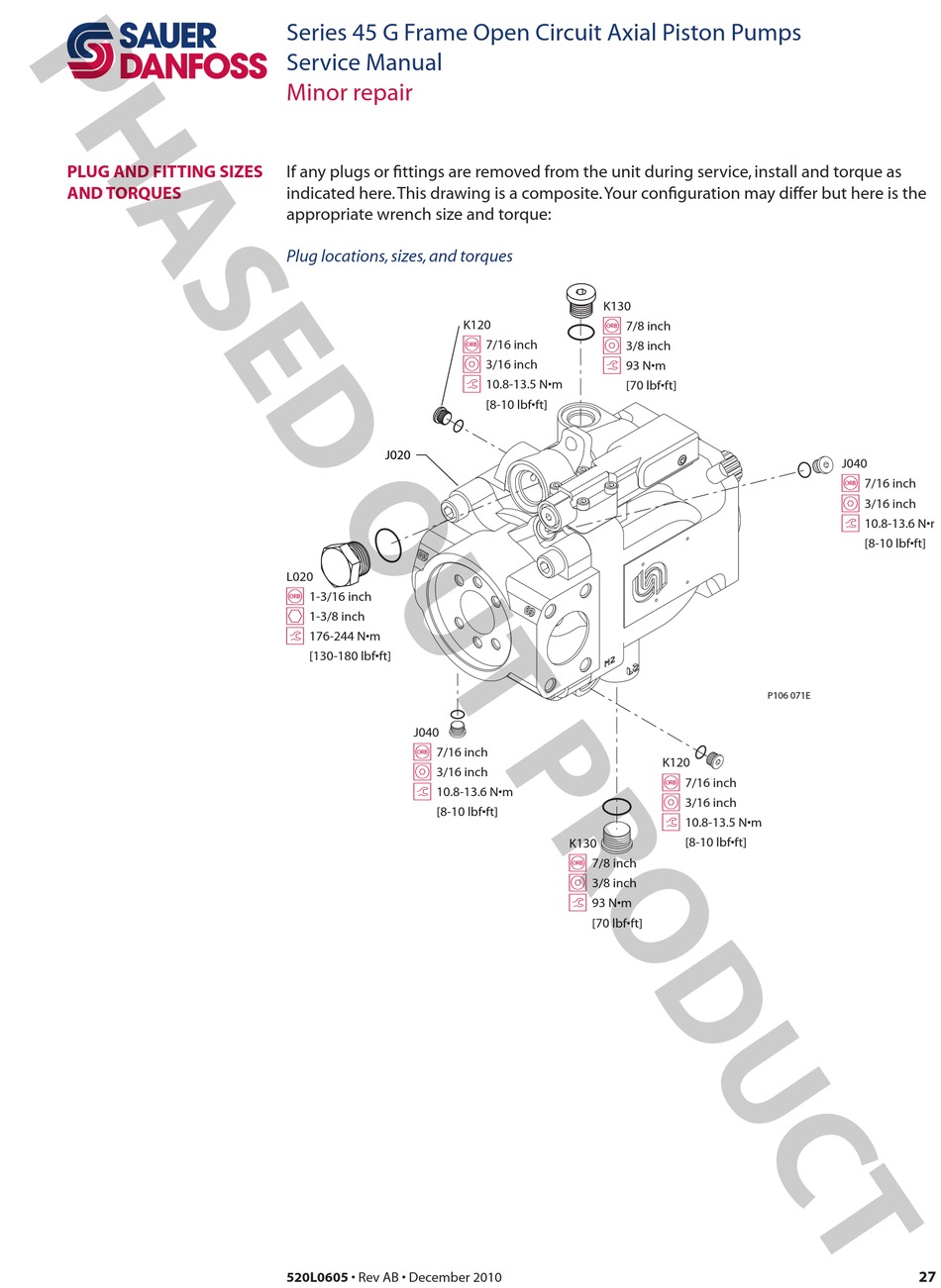

Plug locations, sizes, and torques
K120
B
I
t
J020
L020
B
1-3/16 inch
h
1-3/8 inch
t
176-244 N•m
[130-180 lbf•ft]
J040
B
7/16 inch
I
3/16 inch
t
10.8-13.6 N•m
[8-10 lbf•ft]
520L0605 • Rev AB • December 2010
K130
B
7/8 inch
I
7/16 inch
3/8 inch
t
3/16 inch
93 N•m
10.8-13.5 N•m
[70 lbf•ft]
[8-10 lbf•ft]
K120
B
I
t
K130
B
7/8 inch
I
3/8 inch
t
93 N•m
[70 lbf•ft]
J040
B
I
t
P106 071E
7/16 inch
3/16 inch
10.8-13.5 N•m
[8-10 lbf•ft]
7/16 inch
3/16 inch
10.8-13.6 N•m
[8-10 lbf•ft]
27
