Page 4 • JL Audio, Inc., 2016

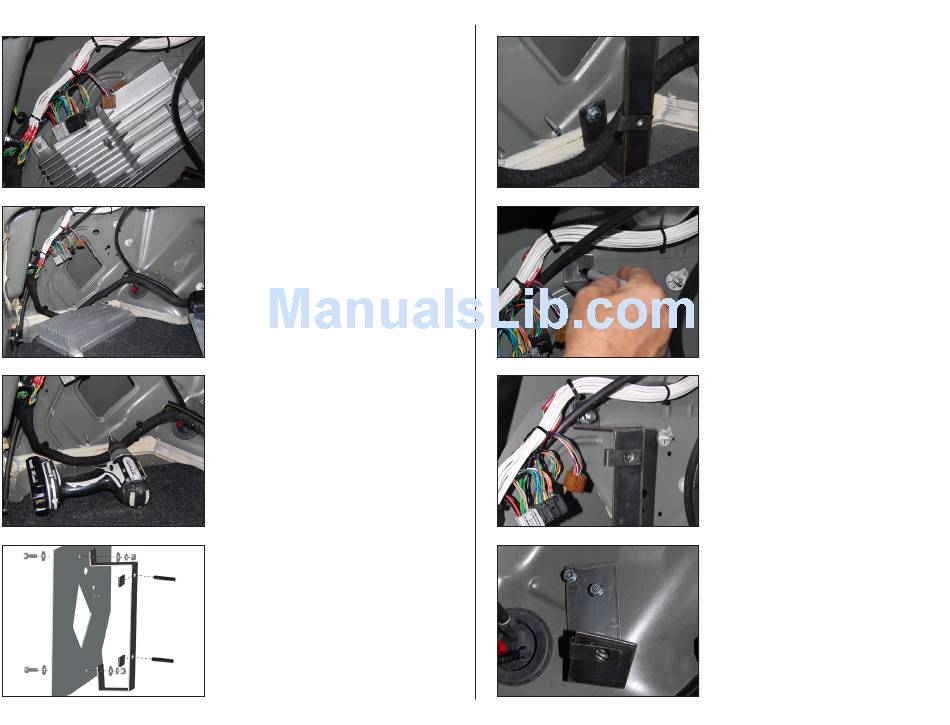

S T E P 9
Unplug all of the harnesses from the factory amplifier.
S T E P 1 0
Remove the four nuts that hold the amplifier to the trunk
wall, and remove the amplifier.
S T E P 1 1
Locate the factory hole at the bottom of the trunk wall, and
enlarge the hole to 7/16".
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
tires, transmission lines, electrical wiring, exhaust
systems or anything else that might cause a reduction
in your weekly pay.
Always wear eye protection when drilling!
S T E P 1 2
Refer to this illustration for clarity in Steps 13, 15, and 19.
SB-C-CTS/10TW3 INSTR_SKU# 011343
S T E P 1 3
Secure the bottom of the Rear Bracket to the hole from Step
11 using a 3/8 - 16 x 1" Hex Bolt, two 3/8" Flat Washers, a 3/8"
Lock Washer, and a 3/8 -16 Hex Nut as illustrated in Step 12.
Do not tighten at this time.
S T E P 1 4
Align the upper right side of the Rear Bracket vertically with
the raised portion of the trunk wall as shown. Mark the
location of the upper hole on the trunk wall. Rotate the
bracket out of the way and drill a 7/16" hole on the mark.
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
tires, transmission lines, electrical wiring, exhaust
systems or anything else that might cause a reduction
in your weekly pay.
S T E P 1 5
Rotate the Rear Bracket back into position. Secure the top
of the Rear Bracket to the hole from the previous step using
a 3/8 - 16 x 1" Hex Bolt, two 3/8" Flat Washers, a 3/8" Lock
Washer, and a 3/8 -16 Hex Nut as illustrated in Step 12.
Firmly tighten both the upper and lower hardware.
Slide a 3/8 - 16 U-Nut over each of the other holes in the Rear
Bracket.
S T E P 1 6
Align the Side Bracket over the two lower computer bracket
studs. Secure the bracket with a pair of 6mm x 1.0 Flange
Nuts.
Slide a 3/8 - 16 U-Nut over the other hole in the Side Bracket.
Continued on Next Page
