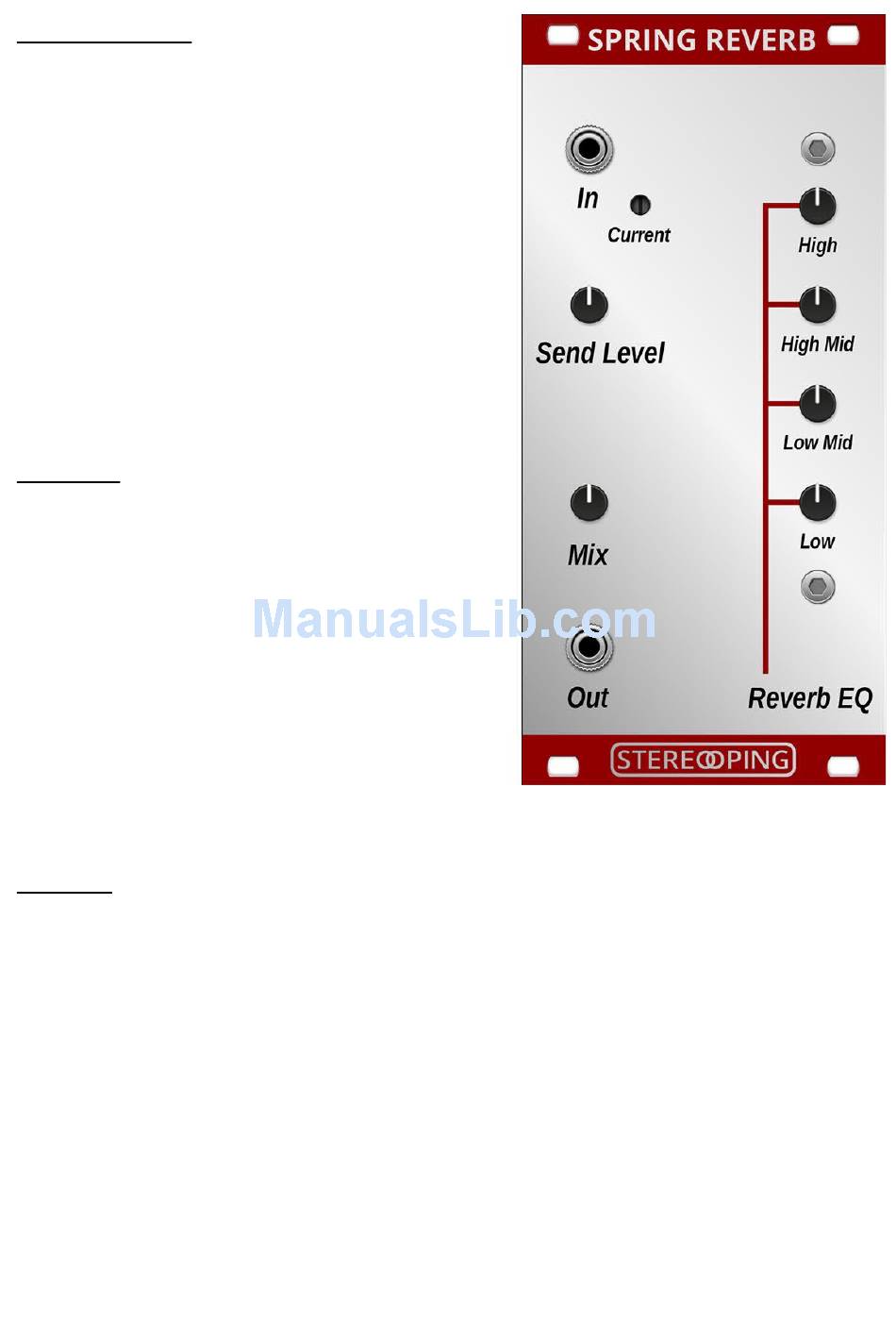

"Reverb EQ" knobs
The 4 knobs "High", "High Mid", "Low Mid" and
"Low" allow the 15db dampening or
amplification for 4 frequency bands in the
reverb signal which is in fact an equalizer. The
frequencies are around
80-240 Hz
•
240-1.000 Hz
•
1.000-3.000 Hz
•
2.800-12.000 Hz
•
The EQ is located after the recovery amp and
works on the pure reverb signal. Tweaking the
EQ allows lots of interesting tones, especially
in tandem with the „Send Level"-pot.
"Mix" knob
Easy: this adjusts the ratio between 100% dry
input signal in leftmost position and - you
guess it - 100% reverb sound in the fully
clockwize position.
The level of the pure reverbsignal might be
quite high depending on the position of "Send
Level". Use "Mix" to compensate this by
turning it more towards "Dry".
The electronic circuit causes the dry output
signal to be inverted (180°) to the original input signal.
"Out" jack
Here you get the output of the module - the mix of dry and wet signal - according to
the position of "Mix".
Now you're equipped with all you need to know. Have fun experimenting and
meeting the Stereoping Spring Reverb.
