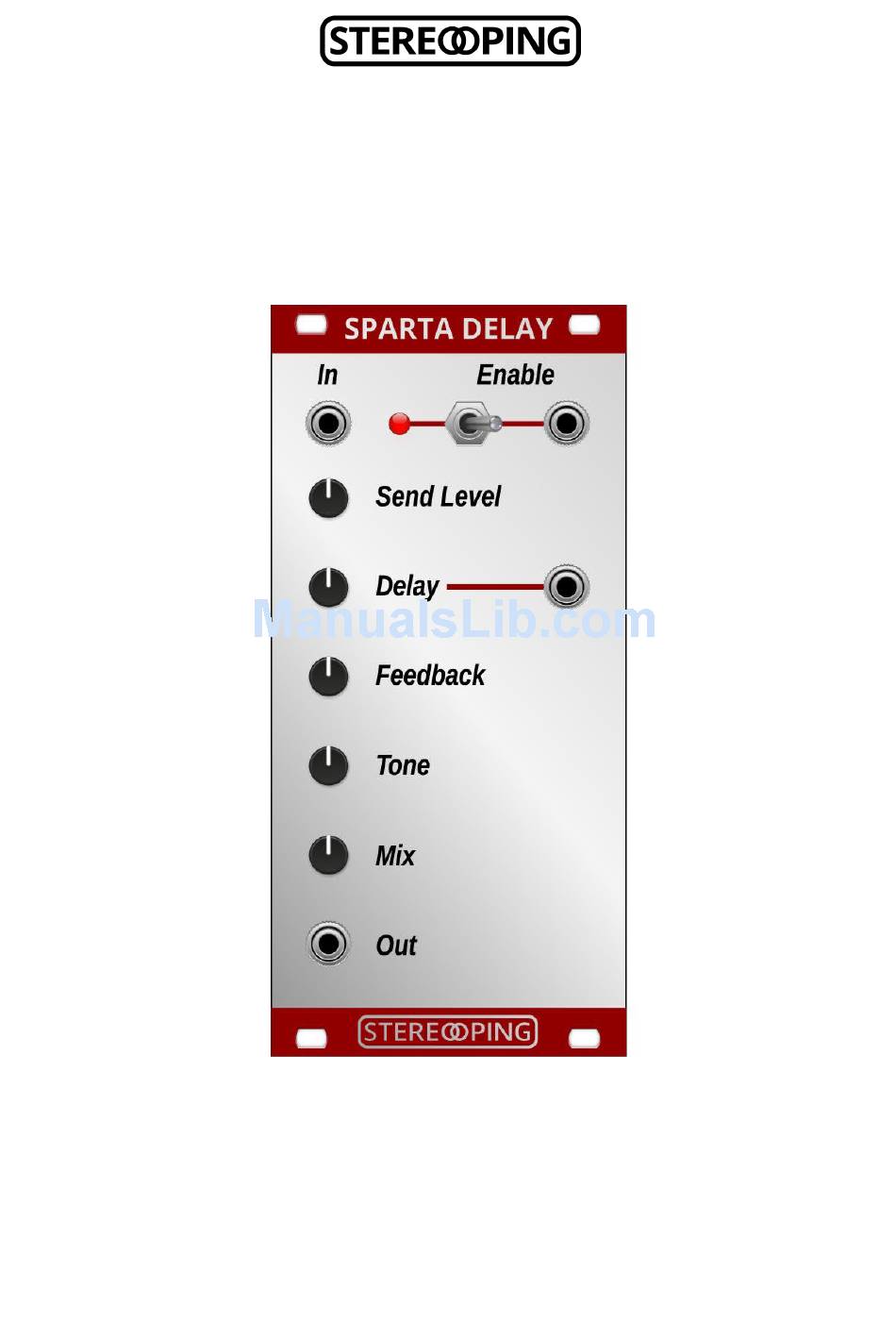

- Page 1 SPARTA DELAY Eurorack Module Manual Manual SPARTA DELAY Eurorack V1.2 © Stereoping Germany, Hattingen 12/2014...
-
Page 2: Functional Block Diagram
„Mix“ knob from 100% dry to 100 % wet - suitable for insert-usage • Width 60,6 mm / 12 TE, Depth about 25 mm • Needs the +5 Volt-rail of the powerbus • Functional block diagram Manual SPARTA DELAY Eurorack V1.2 © Stereoping Germany, Hattingen 12/2014... -
Page 3: Connecting To Power
Interfacing power is the same as on any other module for eurorack. The pic to the right shows the typical eurorack power bus pins. The SPARTA DELAY needs the +5 Volt rail to be supplied. !! Please pay double attention to put the connector cable in the right direction on the module and the powerbus connector. - Page 4 In contrast to our DELUXE DELAY there is no VCA used to control how much input signal is led to the delay, the SPARTA DELAY has just an electronic switch here, just ON or OFF. A CV of +12 Volt will not make more delay than a CV of +2 Volt.
- Page 5 From a certain point of feedbacklevel, the unit moves into self oscillation. The point where self oscillation starts is dependent on the position of the "Tone"-knob. Manual SPARTA DELAY Eurorack V1.2 © Stereoping Germany, Hattingen 12/2014...
- Page 6 - according to the position of "Mix". Now you're equipped with all you need to know. Have fun experimenting and meeting the Stereoping SPARTA DELAY. Manual SPARTA DELAY Eurorack V1.2 © Stereoping Germany, Hattingen 12/2014...
- Page 7 LOVE our product, go ahead. We are looking forward to receiving your Mail! hello@stereoping.com Adress Stereoping Gregor Zoll Musikelektronik Waldstrasse 52 45525 Hattingen Germany E-Mail hello@stereoping.com Homepage http://www.stereoping.com Manual SPARTA DELAY Eurorack V1.2 © Stereoping Germany, Hattingen 12/2014...
