Connecting to power

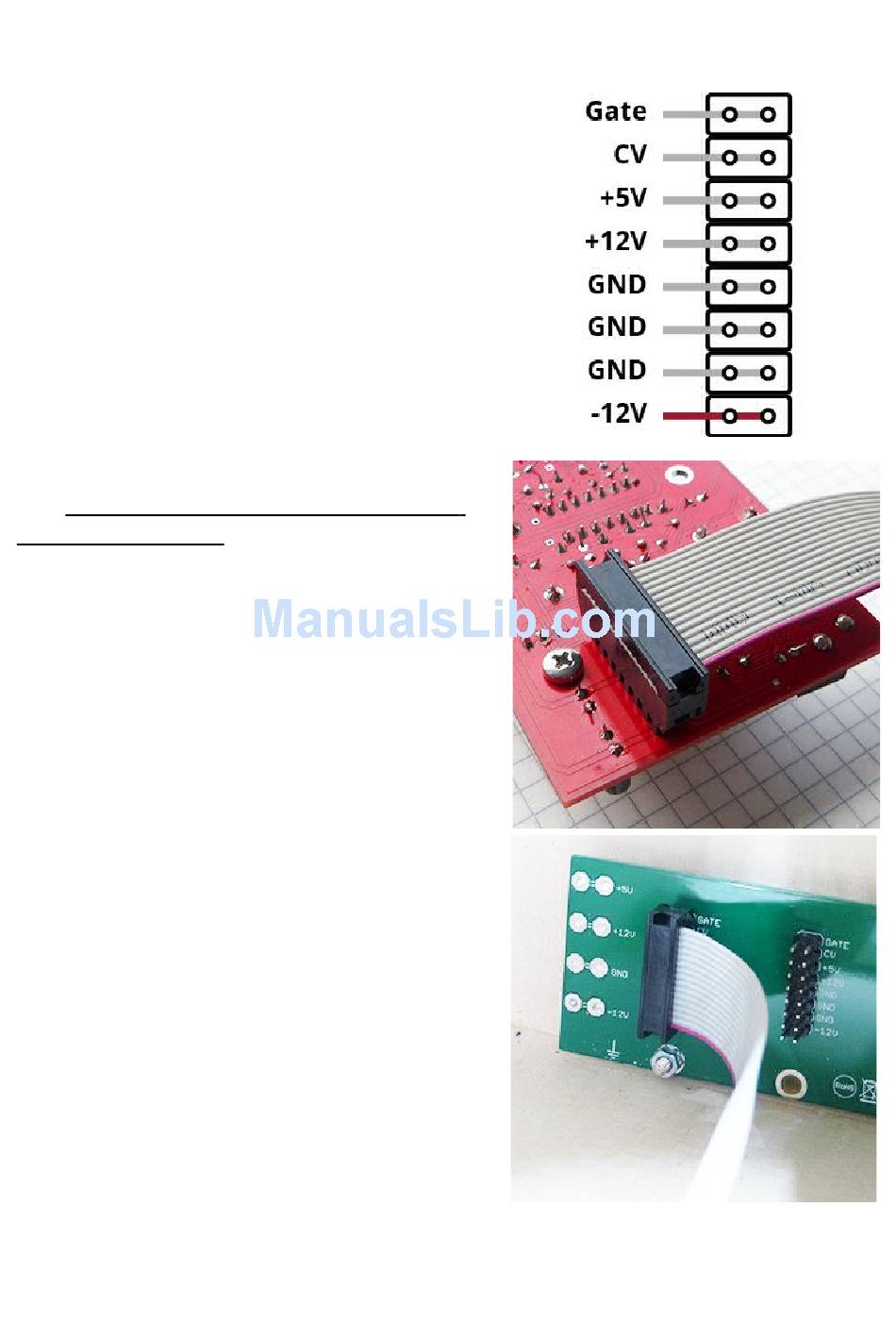

Interfacing power is the same as for any other
module for eurorack. The pic to the right shows
the typical eurorack power bus pins.
!! Please pay double attention to put the
connector cable in the right direction on the
module itself and the powerbus connector.
Attaching the cable in the wrong way could
lead to damage onto the module or even your
power supply !!
Put the powercord onto the power connector
with the red wire pointing towards the lower
edge of the module.
Like in the picture to the right.
The red wire indicates the -12 Volt rail.
The other connector of the cable must be
plugged onto your module systems power-bus.
Again, with the red wire pointing down.
Manual SPRING REVERB Eurorack V1.3
© Stereoping Germany, Hattingen 03/2015
