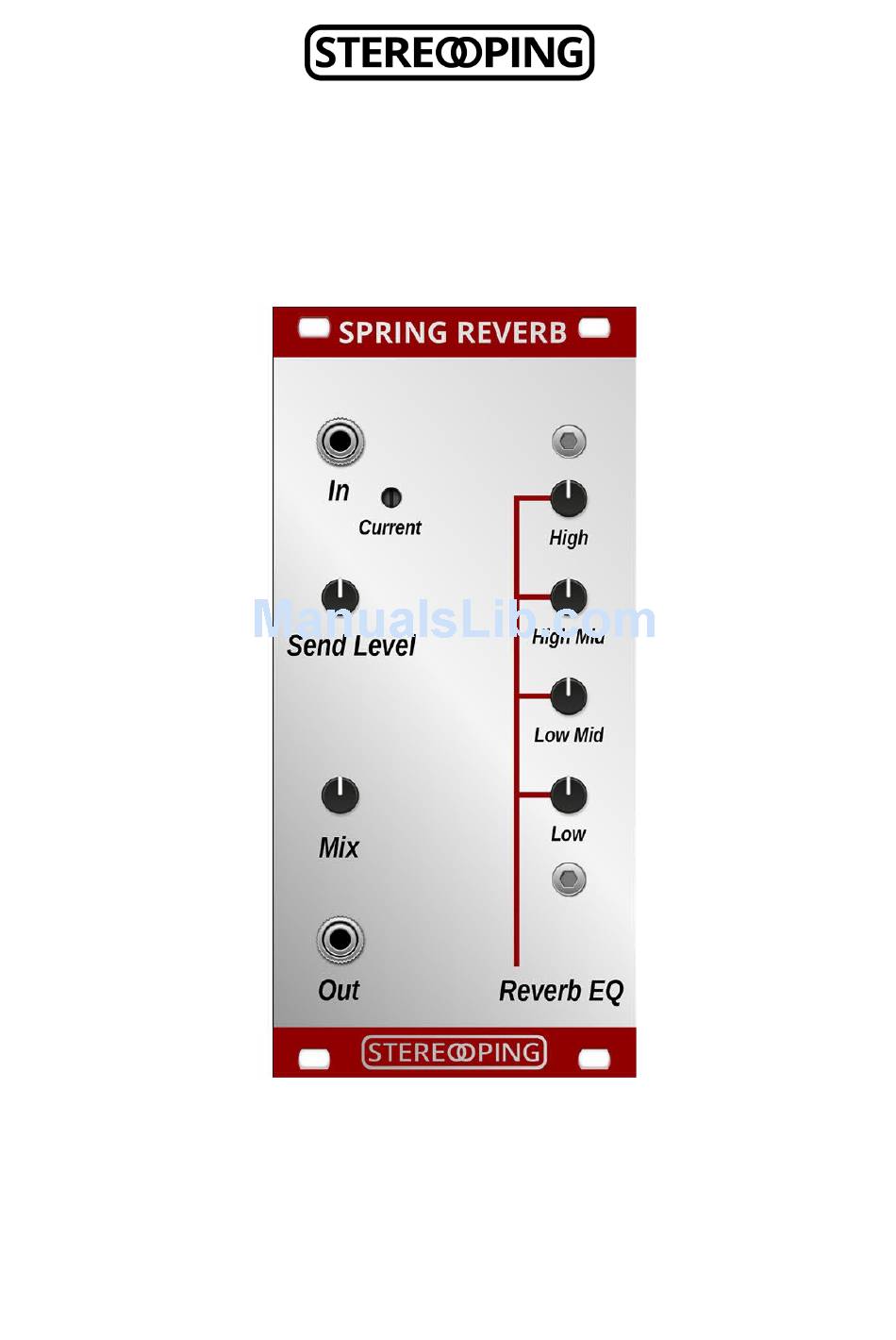

- Page 1 SPRING REVERB Eurorack Module Manual Manual SPRING REVERB Eurorack V1.3 © Stereoping Germany, Hattingen 03/2015...
-
Page 2: Functional Block Diagram
„Mix“ knob from 100% dry to 100 % wet - suitable for insert-usage • Width 60,6 mm / 12 TE, Depth about 25 mm • Current draw: +12 V - 23 mA, -12 V - 23 mA • Functional block diagram Manual SPRING REVERB Eurorack V1.3 © Stereoping Germany, Hattingen 03/2015... - Page 3 The Spring Reverb tank The SPRING REVERB module itself can not produce any reverb. It delivers just the electronics to drive an external reverb tank and heavily amplifies the tanks weak output up to line levels. For desired operation you need to attach a reverb tank to it.
- Page 4 Try to position module and tank with some distance to the Power supply. If it does not help, try a longer cable (e.g. 2 meters) and place the tank even outside of your cabinet. Manual SPRING REVERB Eurorack V1.3 © Stereoping Germany, Hattingen 03/2015...
-
Page 5: Connecting To Power
Like in the picture to the right. The red wire indicates the -12 Volt rail. The other connector of the cable must be plugged onto your module systems power-bus. Again, with the red wire pointing down. Manual SPRING REVERB Eurorack V1.3 © Stereoping Germany, Hattingen 03/2015... - Page 6 „Send Level“ and the knob turned more to the left. The fullmost left position turns the send level down to zero, resulting in NO reverb at all, even if you turn up „Mix“. Manual SPRING REVERB Eurorack V1.3 © Stereoping Germany, Hattingen 03/2015...
- Page 7 Here you get the output of the module - the mix of dry and wet signal - according to the position of "Mix". Now you're equipped with all you need to know. Have fun experimenting and meeting the Stereoping Spring Reverb. Manual SPRING REVERB Eurorack V1.3 © Stereoping Germany, Hattingen 03/2015...
- Page 8 LOVE our product, go ahead. We are looking forward to receiving your Mail! hello@stereoping.com Adress Stereoping Gregor Zoll Musikelektronik Waldstrasse 52 45525 Hattingen Germany E-Mail hello@stereoping.com Homepage http://www.stereoping.com Manual SPRING REVERB Eurorack V1.3 © Stereoping Germany, Hattingen 03/2015...
